BudgetSensors Overview

budget sensors atomic force microscopy probes


Silicon AFM All-in-One & SiNi Mode Probes


Four Cantilevers
ALL-IN-ONE
Soft Contact mode
SiNi
Coatings:
Coatings:


Tapping Mode Probes Force Modulation Probes MFM Probes Contact Mode Probes Cantilever Tweezers



Model >>> All-In-One / All-In-One-AL

The All-In-One Series probes offer four cantilevers with different geometry for all topography measurement modes: contact mode, force modulation, soft tapping and tapping mode. The resonance frequencies and force constants are similar to the ones of the well-established models Contact, Multi75, Tap150 and Tap300 or ContAL, Multi75AL, Tap150AL and Tap300AL for the model with Aluminum Reflex coating.

Available with tip and without tip (tipless).

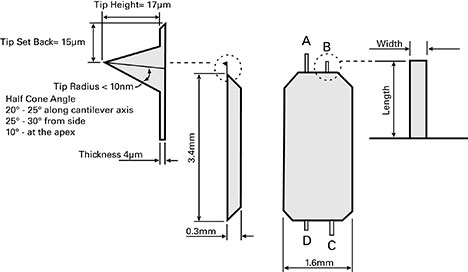

The long cantilevers A for contact mode and B for force modulation are located at one end of the chip, while the short cantilevers C for soft tapping and D for tapping mode are located at the opposite end. The short cantilever end is marked by a trapezoidal pattern visible with bare eyes.

All-in-One Series probes All-in-One Series probes

Technical Data: All-In-One
  Cantilever A Cantilever B Cantilever C Cantilever D
Application Contact Mode Force modulation,
Pulsed Force Mode 		Soft Tapping Mode, Intermittent Contact-Mode Tapping Mode, Intermittent Contact-Mode
  Values Range Values Range Values Range Values Range
Resonant Frequency 15 kHz +/-5 kHz 80 kHz +/-30 kHz 150 kHz +/-80 kHz 350 kHz +/-150 kHz
Force Constant 0.2 N/m 0.04 - 0.7 N/m 2.7 N/m 0.4 - 10 N/m 7.4 N/m 1 - 29 N/m 40 N/m 7 - 160 N/m
Resonant Frequency and Force Constant Similar to Contact Multi75 Tap150-G Tap300
Cantilever Length 500µm +/-10µm 210µm +/-10µm 150µm +/-10µm 100µm +/-10µm
Mean Width 30µm +/-5µm 30µm +/-5µm 30µm +/-5µm 50µm +/-5µm
Thickness 2.7µm +/-1µm 2.7µm +/-1µm 2.7µm +/-1µm 2.7µm +/-1µm
Tip Height 17µm +/-2µm 17µm +/-2µm 17µm +/-2µm 17µm +/-2µm
Tip Set Back 15µm +/-5µm 15µm +/-5µm 15µm +/-5µm 15µm +/-5µm
Tip Radius < 10nm
Coating None or Aluminum Reflex
Half Cone Angle 20° - 25° along cantilever axis, 25° - 30° from side, 10° at the apex




All-In-One: Tip radius <10nm
Application: Several Measurement Modes
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Chipsize: 3.4 x 1.6 x 0.3 mm
Coating: None
Technical Data: This probe uses "on scan angle" symmetric tips to provide a more symmetric representation of features over 200 nm.
All-in-One Series probes

Prod # Description Unit Price Order / Quote
AIO-10 Silicon AFM Probes, All-In-One, no coating, with tips pkg/10 $325.00
Qty:
AIO-50 Silicon AFM Probes, All-In-One, no coating, with tips pkg/50 1312.50
Qty:
AIO-TL-10 Silicon AFM Probes w/o tips, All-In-One, no coating, tipless pkg/10 347.00
Qty:
AIO-TL-50 Silicon AFM Probes w/o tips, All-In-One, no coating, tipless pkg/50 1470.00
Qty:






All-In-One-AL Tip radius <10nm
Application: Several Measurement Modes
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Chipsize: 3.4 x 1.6 x 0.3 mm
Coating: Aluminium reflex coating, 30 nm thick
Technical Data: This probe uses "on scan angle" symmetric tips to provide a more symmetric representation of features over 200 nm.
All-in-One Series probes

Prod # Description Unit Price Order / Quote
AIOAL-10 Silicon AFM Probes, All-In-One, Aluminum Reflex coating, with tips pkg/10 $325.00
Qty:
AIOAL-50 Silicon AFM Probes, All-In-One, Aluminum Reflex coating, with tips pkg/50 1312.50
Qty:
AIOAL-TL-10 Silicon AFM Probes w/o tips, All-In-One, Aluminum Reflex coating, tipless pkg/10 347.00
Qty:
AIOAL-TL-50 Silicon AFM Probes w/o tips, All-In-One, Aluminum Reflex coating, tipless pkg/50 1400.00
Qty:






All-In-One-E Tip radius <25nm
Application: Several Measurement Modes
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Chipsize: 3.4 x 1.6 x 0.3 mm
Coating: Electrically Conductive coating, 30 nm thick
Technical Data: This probe uses "on scan angle" symmetric tips to provide a more symmetric representation of features over 200 nm.

All-in-One Series probes

Prod # Description Unit Price Order / Quote
AIOE-10 Silicon AFM Probes, All-In-One, Electrically Conductive coating pkg/10 $350.00
Qty:
AIOE-50 Silicon AFM Probes, All-In-One, Electrically Conductive coating pkg/50 1728.25
Qty:






All-In-One-DLC Tip radius <25nm
Application: Several Measurement Modes
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Chipsize: 3.4 x 1.6 x 0.3 mm
Coating: Diamond-Like-Coating on tip side of cantilever, 15nm thick Aluminum Reflex coating on detector side of cantilever, 30nm thick This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm
Technical Data: This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm

All-in-One Series probes

Prod # Description Unit Price Order / Quote
AIO-DLC-10 Silicon AFM Probes, All-In-One, DLC coating pkg/10 $393.75
Qty:
AIO-DLC-50 Silicon AFM Probes, All-In-One, DLC coating pkg/50 1687.50
Qty:







Silicon Nitride AFM Probes

Model >>> SiNi AFM Probes

Silicon Nitride Holder Chip

silicon nitride holder chip for afm

The Silicon Nitride Holder Chip fits most commercial AFMs as it is industry standard size. It is compatible with VEECO AFMs, TM Microscopes, JEOL, Molecular Imaging and other commercial AFMs.

Silicon Nitride Cantilever

silicon nitride cantilever

SiN (Si3N4) probes feature 4 cantilevers per chip. The cantilever's low force constants make these probes ideal for very soft contact mode imaging.

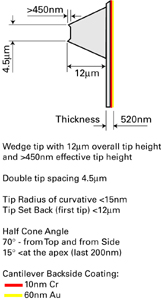

Silicon Nitride Tip

silicon nitride afm tip

The oxide-sharpened wedge tip has two peaks per tip, a "twin tip". The protrusion at the cantilever's end is used for imaging, since the cantilever is mounted at some angle (e.g. 13 deg.) which keeps only one tip interacting with the surface if the sample is sufficiently flat. (Valleys are not greater than 400nm deep).

Tip radius: <15nm
Application: Soft Contact Mode
General: 4 Silicon Nitride Cantilevers
(Triangular, 2 different lengths)
Silicon Nitride Wedge Tip
Silicon Support Chip
(3.4 mm x 1.6 mm x 0.45 mm)
Cantilever lengths: 100 µm and 200 µm
Coating: 70 nm thick Chromium/Gold

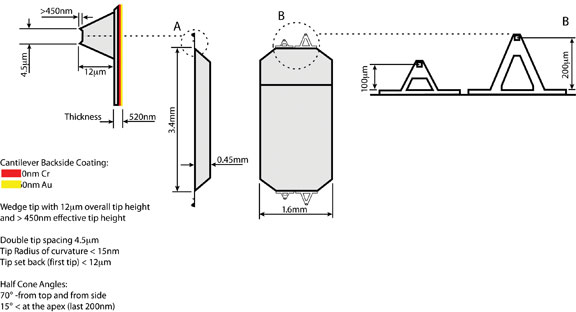

Technical Data:
Values: short cantilever long cantilever Range
Resonant Freq. 45 kHz 12.6 kHz -
Force Constant 0.27 N/m 0.06 N/m -
Lengths 100 µm 200 µm +/-10 µm
Widths 16 µm 30 µm +/-5 µm
Thickness 520 nm +/-50 µm
Tip Height
(Wedge Tip) 		12 µm (overall)
>450 nm (effective) 		+/-2 µm
450-550 nm
Double Tip Spacing 4.5 µm +/-0.5 µm
Tip Radius <15 nm
Half Cone Angle 35° (macroscopic)
Reflex Coating Gold/Chromium
Cantilever Bending typically 3°, max 7°
afm backside coating of cantilever

Prod # Description Unit Price Order / Quote
SINI-30 Silicon Nitride AFM Probes, SiN, Cr/Au reflex coating pkg/30 $868.75
Qty:
SINI-100 Silicon Nitride AFM Probes, SiN, Cr/Au reflex coating pkg/100 1800.00
Qty:
SINI-300 Silicon Nitride AFM Probes, SiN, Cr/Au reflex coating pkg/300 P.O.R.
Qty:

go to BudgetComboBox for a mixed box of probes




AFM Cantilever Tweezers
close-up

AFM/STM Economy Cantilever Tweezers, Non-magnetic Stainless Steel

Metrology Probe Tweezer Cantilever Tweezers
Easily grasp AFM/STM cantilevers / probes with these precise, non-magnetic stainless steel AFM Probe Tweezers. 4-5/8" (117mm) long. Although these tweezers are made from non-magnetic stainless steel, magnetization can occur in the presence of strong magnetic fields.

Prod # Description Unit Price Order / Quote
5599 AFM/STM Cantilever Tweezers, Non-magnetic Stainless Steel each $13.20
Qty:




AFM Cantilever Tweezers
close-up

NEW AFM/STM Precision Cantilever Tweezers, Non-magnetic Stainless Steel

AFM/STM Precision Cantilever Tweezers
Precision formed, Swiss made, low carbon, non-magnetic, austenitic steel (material number 1.4435, DIN X2CrNiMo 18-14-3, AISI number 316L) for precise manipulation of cantilevers and probes. 4-3/4" (120mm). Non-magnetizable.

Prod # Description Unit Price Order / Quote
5599-P AFM/STM Precision Cantilever Tweezers, Non-magnetic Stainless Steel each $28.60
Qty:




AFM Cantilever Tweezers made from Titanium - tip view
close-up

AFM/STM Cantilever Tweezers, Titanium

AFM Cantilever Tweezers - Titanium
Easily grasp magnetic AFM/STM cantilevers / probes with these precise titanium, absolutely non-magnetic tweezers. 4-5/8" (117mm) long.

Prod # Description Unit Price Order / Quote
5596-TI AFM/STM Cantilever Tweezers, Titanium each $31.40
