Silicon AFM Force Modulation, MFM & Contact Mode Probes


Force modulation mode
MULTI 75
MFM application
Magnetic Multi
Contact mode
CONTACT
Coatings:
Coatings:
Coatings:


Tapping Mode Probes SiNi Probes All-in-One Probes Cantilever Tweezers



Model >>> Multi75-G / Multi75Al & Multi75Al-G / Multi75GD / Multi75GB & -G / ElectriMulti75 & -G / MagneticMulti75 & -G / Multi75DLC

Technical Data:
  Value Range
Resonant Freq. 75 kHz +/-15 kHz
Force Constant 3 N/m 1 - 7 N/m
Length 225 µm +/-10 µm
Mean Width 28 µm +/-5 µm
Thickness 3 µm +/-1 µm
Tip Height 17 µm +/-2 µm
Tip Set Back 15 µm +/-5 µm
Tip Radius <10 nm (Multi75; Multi75Al; Multi75GD)
<25nm (ElectriMulti75; Multi75GB)
<60nm (MagneticMulti75)
<15 nm (Multi75DLC)
Also see individual probes.
Half Cone Angle 20°-25° along cantilever axis
25°-30° from side
10°-at the apex
Contact Resistance 300 ohms on platinum thin film surface

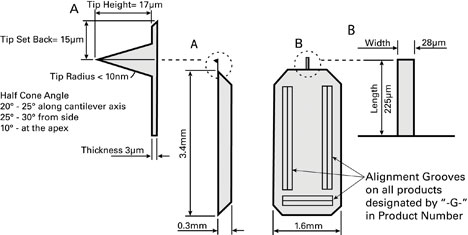

silicon afm probe, multi 75




Multi75-G Tip radius <10nm
Application: Force Modulation, Light Tapping
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: None
multi 75 silicon afm probe

Prod # Description Unit Price Order / Quote
MULTI75-G-10 Silicon AFM Probes, Multi 75 -G, no coating pkg/10 $250.00
Qty:
MULTI75-G-50 Silicon AFM Probes, Multi 75 -G, no coating pkg/50 1062.50
Qty:
MULTI75-G-W Silicon AFM Probes, Multi 75 -G, no coating pkg/380 P.O.R.
Qty:




Multi75Al Tip radius <10nm
Application: Force Modulation, Light Tapping
General:

Rotated Monolithic Silicon Probe
Symmetric Tip Shape With or without Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)

Coating: 30nm Al for enhanced reflectivity
multi 75 al silicon afm probe

Prod # Description Unit Price Order / Quote
MULTI75AL-W Silicon AFM Probes, Multi 75 Al, Aluminum Reflex coating pkg/380 P.O.R.
Qty:
Multi75AL with Alignment Grooves:
MULTI75AL-G-10 Silicon AFM Probes, Multi 75 Al -G, Aluminum Reflex coating pkg/10 280.00
Qty:
MULTI75AL-G-50 Silicon AFM Probes, Multi 75 Al -G, Aluminum Reflex coating pkg/50 1112.50
Qty:
MULTI75AL-G-W Silicon AFM Probes, Multi 75 Al -G, Aluminum Reflex coating pkg/380 P.O.R.
Qty:




Multi75GD Tip radius <10nm
Application: Force Modulation, Light Tapping
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: 70nm Au on back of cantilever

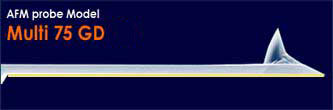

multi 75 gd silicon afm probe

Prod # Description Unit Price Order / Quote
MULTI75GD-10 Silicon AFM Probes, Multi 75 GD, Au coated pkg/10 $325.00
Qty:
MULTI75GD-50 Silicon AFM Probes, Multi 75 GD, Au coated pkg/50 1350.00
Qty:




Multi75GB Tip radius <25nm
Application: Force Modulation, Light Tapping, special application
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: 70nm Au on both sides of cantilever
bs-multi 75 gb silicon afm probe

Prod # Description Unit Price Order / Quote
MULTI75GB-G-10 Silicon AFM Probes, Multi 75 GB -G, overall Au coated pkg/10 $325.00
Qty:
MULTI75GB-G-50 Silicon AFM Probes, Multi 75 GB -G, overall Au coated pkg/50 1350.00
Qty:




ElectriMulti75-G Tip radius <25nm
Application: Force Modulation, Light Tapping and Electric Modes like:
• Scanning Capacitance Microscopy (SCM)
• Electrostatic Force Microscopy (EFM)
• Kelvin Probe Force Microscopy (KFM)
• Scanning Probe lithography
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chip size 3.4 x 1.6 x 0.3mm)
Coating: Electrically conductive Cr/Pt on both sides of cantilever. 5nm Cr covered with 25nm Pt.
bs-electrimulti 75 silicon afm probe

Contact Resistance: 300 ohms on Pt thin film surface
Prod # Description Unit Price Order / Quote
Multi75E with Alignment Grooves:
MULTI75E-G-10 Silicon AFM Probes, ElectriMulti 75 -G, overall Cr/Pt coated pkg/10 $300.00
Qty:
MULTI75E-G-50 Silicon AFM Probes, ElectriMulti 75 -G, overall Cr/Pt coated pkg/50 1312.50
Qty:




MagneticMulti75 Tip radius <60nm
Application: Magnetic Force Microscopy (MFM)
General:

Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chip size 3.4 x 1.6 x 0.3mm)

Coating: Tip side - Magnetic
Detector side - Aluminum
magneticmulti afm probe

Prod # Description Unit Price Order / Quote
MULTI75M-G-10 Silicon AFM Probes, MagneticMulti 75 -G, Magnetic/Al coated pkg/10 $300.00
Qty:
MULTI75M-G-50 Silicon AFM Probes, MagneticMulti 75 -G, Magnetic/Al coated pkg/50 1312.50
Qty:




Multi75DLC Tip radius <15nm
Application: Force Modulation Mode, Pulsed Force Mode (PFM)
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: Diamond-Like-Coating on tip side of cantilever, 15nm thick
Aluminum Reflex coating on detector side of cantilever, 30nm thick
This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm.
multi 75 dlc silicon afm probe

Prod # Description Unit Price Order / Quote
MULTI75DLC-10 Silicon AFM Probes, Multi 75 DLC, DLC coating on tip pkg/10 $375.00
Qty:
MULTI75DLC-50 Silicon AFM Probes, Multi 75 DLC, DLC coating on tip pkg/50 1562.50
Qty:

or go to BudgetComboBox for a mixed box of probes



Model >>> Contact / ContAL & ContAL-G / ContGD / ContGB / ElectriCont & -G / ContDLC

Technical Data:
  Value Range
Resonant Freq. 13 kHz +/-4 kHz
Force Constant 0.2 N/m 0.07 - 0.4 N/m
Length 450 µm +/-10 µm
Mean Width 50 µm +/-5 µm
Thickness 2 µm +/-1 µm
Tip Height 17 µm +/-2 µm
Tip Set Back 15 µm +/-5 µm
Tip Radius <10 nm (Contact; ContAL; ContGD; ContGb)
<25nm (ElectriCont)
<15nm (ContDLC)
Also see individual probes.
Half Cone Angle 20°-25° along cantilever axis
25°-30° from side
10°-at the apex

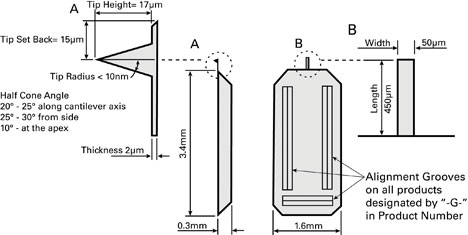

silicon afm probe, cont
Contact Tip radius <10nm
Application: Contact Mode, Pulsed Force Mode (PFM)
General: Rotated Monolithic silicon probe
Symetric Tip Shape
Alignment Grooves (except for 1, see below)
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: None

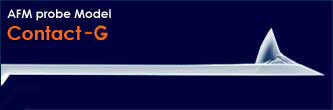

cont silicon afm probe

Prod # Description Unit Price Order / Quote
CONTACT-G-10 Silicon AFM Probes, Contact -G, no coating pkg/10 $267.00
Qty:
CONTACT-G-50 Silicon AFM Probes, Contact -G, no coating pkg/50 1133.00
Qty:
CONTACT-G-W Silicon AFM Probes, Contact -G, no coating pkg/380 P.O.R.
Qty:




ContAL Tip radius <10nm
Application: Contact Mode, Pulsed Force Mode (PFM)
General:

Rotated Monolithic silicon probe
Symetric Tip Shape
Alignment Grooves or None
(Chipsize 3.4 x 1.6 x 0.3mm)

Coating: 30nm Al for enhanced reflectivity

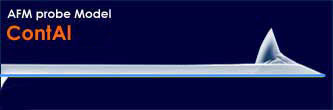

cont al silicon afm probe

Prod # Description Unit Price Order / Quote
CONTAL-W Silicon AFM Probes, Cont Al, Aluminum Reflex coating pkg/380 P.O.R.
Qty:
ContAl with Alignment Grooves:
CONTAL-G-10 Silicon AFM Probes, Cont Al -G, Aluminum Reflex coating pkg/10 267.00
Qty:
CONTAL-G-50 Silicon AFM Probes, Cont Al -G, Aluminum Reflex coating pkg/50 1186.50
Qty:
CONTAL-G-W Silicon AFM Probes, Cont Al -G, Aluminum Reflex coating pkg/380 P.O.R.
Qty:




ContGD Tip radius <10nm
Application: Contact Mode, Pulsed Force Mode (PFM)
General: Rotated Monolithic silicon probe
Symetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: 70nm Au on back of cantilever

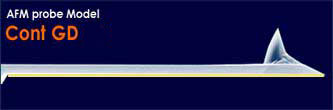

cont gd silicon afm probe

Prod # Description Unit Price Order / Quote
CONTGD-G-10 Silicon AFM Probes, Cont GD, part Au coated pkg/10 $347.00
Qty:
CONTGD-G-50 Silicon AFM Probes, Cont GD, part Au coated pkg/50 1440.00
Qty:




ContGB Tip radius <25nm
Application: Contact Mode, Pulsed Force Mode (PFM)
General: Rotated Monolithic silicon probe
Symetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: 70nm Au on both sides of cantilever
cont gb silicon afm probe

Prod # Description Unit Price Order / Quote
CONTGB-G-10 Silicon AFM Probes, Cont GB -G, overall Au coated pkg/10 $347.00
Qty:
CONTGB-G-50 Silicon AFM Probes, Cont GB -G, overall Au coated pkg/50 1440.00
Qty:




ElectriCont-G Tip radius <25nm
Application: Contact Mode, Pulsed Force Mode (PFM) and Electric Modes like:
• Scanning Capacitance Microscopy (SCM)
• Electrostatic Force Microscopy (EFM)
• Kelvin Probe Force Microscopy (KFM)
• Scanning Probe Lithography
General: Rotated Monolithic silicon probe
Symetric Tip Shape
Alignment Grooves
(Chip size 3.4 x 1.6 x 0.3mm)
Coating: Electrically conductive Cr/Pt on both sides of cantilever. 5nm Cr covered with 25nm Pt.

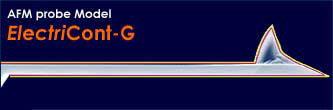

electricont silicon afm probe

Contact Resistance: 300 ohms on Pt thin film surface
Prod # Description Unit Price Order / Quote
with Alignment Grooves
CONTE-G-10 Silicon AFM Probes, ElectriCont-G, overall Cr/Pt coating pkg/10 $320.00
Qty:
CONTE-G-50 Silicon AFM Probes, ElectriCont-G, overall Cr/Pt coating pkg/50 1666.50
Qty:




ContDLC Tip radius <15nm
Application: Contact Mode
General: Rotated Monolithic silicon probe
Symmetric Tip Shape
Alignment grooves
(Chip size 3.4 x 1.6 x 0.3mm)
Coating: Diamond-Like-Coating on tip side of cantilever, 15nm thick
Aluminum Reflex coating on detector side of cantilever, 30nm thick
This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm.
contdlc silicon afm probe

Prod # Description Unit Price Order / Quote
CONTDLC-10 Silicon AFM Probes, Cont DLC, DLC coating on tip pkg/10 $375.00
Qty:
CONTDLC-50 Silicon AFM Probes, Cont DLC, DLC coating on tip pkg/50 1837.50
Qty:

go to BudgetComboBox for a mixed box of probes




AFM Cantilever Tweezers
close-up

AFM/STM Economy Cantilever Tweezers, Non-magnetic Stainless Steel

Metrology Probe Tweezer Cantilever Tweezers
Easily grasp AFM/STM cantilevers / probes with these precise, non-magnetic stainless steel AFM Probe Tweezers. 4-5/8" (117mm) long. Although these tweezers are made from non-magnetic stainless steel, magnetization can occur in the presence of strong magnetic fields.

Prod # Description Unit Price Order / Quote
5599 AFM/STM Cantilever Tweezers, Non-magnetic Stainless Steel each $13.20
Qty:
