This extensive selection of specimen holders can be used on all Hitachi SEMs, FESEMs and FIB systems with an M4 stage adapter.
All the Hitachi holders in this section have the widely used female M4 thread. Some of the larger holders require a larger specimen
chamber and a larger stage. Depending on the available working distance, z-movement, and maximum specimen height provided by the
specimen stage in the SEM, stub extensions might be added to obtain the optimized working distance. These
specimen holders can also be used on JEOL SEMs if an adapter to JEOL cylinder mount is used
(#15367-25, #15367-40,
#15367-20, #16150-9,
or #16217-9).
See Pin Mount Specimen Holders if your SEM, FESEM, or FIB is using pin mounts.
shown with silicon chip held in place
|
Single Flat Sample Clip Holder
This specimen holder is made of aluminum with spring-loaded clamping and grounding pin.
Accommodates a sample thickness up to 3mm. Pin provides minimal surface clamping area and
grounding on the imaged surface.
Screw used is 2-56 x 3/32 cup head set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15375-2
| Single Flat Sample Clip Holder, M4
| each
| $110.00
|
|
|
shown with silicon chips held in place
|
Triple Flat Sample Clip Holder
This specimen holder is made from aluminum with spring-loaded clamping and grounding pin.
Accommodates three samples with thickness up to 3mm. The pins provide minimal surface clamping
area and grounding on the imaged surface.
Screws used are 2-56 x 3/32 cup head set screw, stainless steel and 2-56 x 1/4 pan head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15376-2
| Triple Flat Sample Clip Holder, M4
| each
| $396.00
|
|
|
|
45° Cross Section Holder
This Cross Section Holder is made of aluminum with spring-loaded brass clamping and
grounding clip and holds sample at a 45° angle. Clip width is 6.35mm. Accommodates
a sample thickness up to 11mm. The clip provides minimal surface clamping area and grounding on
the imaged surface.
Screws used are 4-40 x 3/16 truss head screw, stainless steel and 2-56 x 3/16 pan head, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15460
| 45° Cross Section Holder, M4
| each
| $110.00
|
|
|
|
Triple 45° Cross Section Holder
The Triple Cross Section Holder is made of aluminum with spring-loaded brass clamping and
grounding clip and holds sample at a 45° angle. Clip width is 6.35mm. Accommodates
three samples with a thickness up to 11mm. The clips provide minimal surface clamping area and grounding on
the imaged surface.
Screws used are 4-40 x 3/16 truss head screw, stainless steel and 2-56 x 3/16 pan head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15461
| Triple 45° Cross Section Holder, M4
| each
| $275.00
|
|
|
shown with silicon chips held in place
|
Triple 70° Cross Section Holder
The Triple Cross Section Holder is made of aluminum with spring-loaded brass clamping and
grounding clip and holds sample at a 70° angle. Clip width is 6.35mm. Accommodates
three samples with a thickness up to 11mm. The clips provide minimal surface clamping area
and grounding on the imaged surface.
Screws used are 4-40 x 3/16 truss head screw, stainless steel and 2-56 x 3/16 pan head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15379-2
| Triple 70° Cross Section Holder, M4
| each
| $275.00
|
|
|
shown with silicon chip held in place
|
90° Cross Section Holder
This Cross Section Holder is made of aluminum with spring-loaded brass clamping and grounding
clip and holds sample at a 90° angle. Clip width is 6.35mm. Accommodates a sample
thickness up to 11mm. The clip provides minimal surface clamping area and grounding on the
imaged surface.
Screws used are 4-40 x 3/16 truss head screw, stainless steel and 2-56 x 3/16 pan head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15378-2
| 90° Cross Section Holder, M4
| each
| $110.00
|
|
|
shown with silicon chips held in place
|
Triple 90° Cross Section Holder
The Triple Cross Section Holder is made of aluminum with spring-loaded brass clamping and
grounding clip and holds sample at a 90° angle. Clip width is 6.35mm. Accommodates a
sample thickness up to 11mm. The clips provide minimal surface clamping area and grounding on
the imaged surface.
Screws used are 4-40 x 3/16 truss head screw, stainless steel and 2-56 x 3/16 pan head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15380-2
| Triple 90° Cross Section Holder, M4
| each
| $275.00
|
|
|
shown with specimen held in place
|
Cross Section Holder
This specimen holder holds thin or flat samples up 6.35mm (1/4"). Adjustable angle from 0-180°.
Made of non-magnetic stainless steel.
Overall height is 30mm (1.2") from the pivot point.
The clamping part is a 16mm (0.62") cube without thumb screws.
Screw used is 4-40 x 1/2 thumb screw.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15325-4
| Cross Section Holder, M4
| each
| $99.00
|
|
|
 Bottom View
|
Adjustable Profile Holder
Designed to adjust the exact angle for cross sections made from wafers. Maximum specimen thickness 3.2mm
(1/8"). Material: machined aluminum with brass and stainless steel Allen set screw.
Allen wrench included.
Screws used are 4-40 x 1/2 socket head cap screw, stainless steel and 10-32 x 3/16 set screw, brass.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15356-4
| Hitachi Adjustable Profile Holder, M4
| each
| $132.00
|
|
|
|
Compact Variable Tilt Mount
This Compact Variable Tilt Specimen Mount allows for easy mounting and tilting small samples from 0° - 90°
and SEM investigation with small working distances. Markings for 30°, 45°, 70° and 90°. Table size
is 11 x 14mm (0.46" x 0.55"). Overall size is 14 x 14.3 x 14.5mm (0.55" x 0.56" x 0.57"). Made of aluminum with stainless
steel screw. Allen wrench included.
Screw used is M2 x 12mm, socket cap head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15439
| Compact Variable Tilt Mount, M4
| each
| $64.35
|
|
|
|
Variable Tilt Specimen Holder for Pin Mounts
Accommodates specimens pin stubs up to 18mm (.7") diameter or with a size up to 26 x 20mm.
Tilts 0 - 90° with 10° markings. Additional markings for 30°, 45°, and 70°.
Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H. Made of aluminum with stainless steel screws.
Allen wrench included.
Screws used are M2 x 6mm, socket cap head screw, stainless steel and M2 x 3mm, set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15450-4
| Variable Tilt Specimen Holder, M4
| each
| $324.50
|
|
|
|
Variable Tilt Specimen Holder for Hitachi M4 Mounts
Accommodates Hitachi 15mm cylinder mount with M4 thread.
Tilts 0 - 90° with 10° markings. Additional markings for 30°, 45°, and 70°.
Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H.
Made of aluminum with stainless steel screws. Allen wrench included.
Screws used are M2 x 6mm, socket head cap screw, stainless steel and M2 x 3mm, set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15451-4
| Variable Tilt Specimen Holder for Hitachi M4 mounts, M4
| each
| $313.50
|
|
|
 |
 |
| front |
back |
|
Tilt Mount
This tilt specimen mount allows for easy mounting and tilting of small samples from 0° to 70°. It has index angle markings, with maximum 70° stop for EBSD. Specimen platform is 12.7mm (0.50" in diameter). Overall height is 12.7mm (0.50"). Made of aluminum with stainless steel screw. Allen wrench included.
Screw used is 4-40 x 5/16 socket cap screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15452-4
| Tilt Mount, M4
| each
| $68.20
|
|
|
|
NEW Fiber Holder, M4
This spring-closing vise mount allows for easy clamping and tilting of small rod or fiber samples up to 3mm (0.12") in diameter. It has a tilt range from 0° – 90° with index angle markings. Specimen platform is 12.7mm (0.50" in diameter), clamp is ~19mm (0.75") long and the fixture has an overall height of approximately 19mm (0.75"). M4 threaded. Made of aluminum and stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15453-4
| Fiber Holder, M4
| each
| $71.00
|
|
|
|
45° Pre-Tilt Holder for Hitachi Mounts and Pin Stubs
Accepts 15mm Hitachi mounts on pin with M4 thread. Pin can be rotated and fixed for optimum position.
When the pin with M4 thread is removed, this holder also accepts a standard 12.7mm (1/2") pin stub
with 3.2mm (1/8") pin. 45° gives higher SE signal w/o tilting the specimen stage. Material: machined
aluminum with stainless steel Allen set screw. Allen wrench included.
Screw used is M3 x 3mm set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15428-45
| 45° Pre-Tilt Holder, M4
| each
| $52.25
|
|
|
|
70° EBSD Pre-Tilt Holder for Hitachi Mounts and Pin Stubs
Accepts 15mm Hitachi mounts on pin with M4 thread. Pin can be rotated and fixed for optimum position.
When the pin with M4 thread is removed, this holder also accepts a standard 12.7mm (1/2") pin stub
with 3.2mm (1/8") pin. 70° EBSD Pre-Tilt Holder w/o tilting the specimen stage.
This holder is made of machined aluminum with stainless steel Allen set screw. Allen wrench included.
Screw used is M3 x 3mm set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15428-70
| 70° Pre-Tilt Holder, M4
| each
| $57.20
|
|
|
|
Micro Vise Holder
Holds a variety of specimens. The maximum gap is 11mm (7/16"). The jaws are 25.4mm
(1") wide. Made of aluminum with stainless steel screw. Allen wrench included.
Screws used are 6-32 x 3/4 vented socket cap head screw, stainless steel and 6-32 x 5/16 flat head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15340-4
| Micro Vise Holder, M4
| each
| $126.50
|
|
|
closed position
with pushrod in place
holding specimen in place with pushrod removed
|
Small Springloaded Vise Clamp
Small Springloaded vise clamp for samples up to 12.7mm (1/2"). The jaws are 25mm (1") wide.
Jaws also accommodate 1/16" x 1/2" stainless steel pins for more awkward shaped samples. 4 pins are included.
Removable pushrod for easy loading is provided. Material: machined aluminum with stainless steel pins and springs. Overall size w/o
pushrod 30 x 25 x 12.5mm (1.18" x 1" x ½").
Technical Notes, Small Springloaded Vise Clamp (276KB PDF)
Screw used is 2-56 x 1/8 cup point set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15341-4
| Small Springloaded Vise Clamp, M4
| each
| $211.75
|
|
| 15341-20
| Replacement Pins for Vise Clamp, 1/2" long
| pkg/10
| 35.75
|
|
|
|
Springloaded Vise Clamp
Springloaded vise clamp for samples up to 26mm. The jaws are 25mm (1") wide.
Jaws also accommodate 1/16" x 1/2" stainless steel pins for more awkward shaped samples.
4 pins are included. Removable pushrods for easy loading are provided.
Material: machined aluminum with stainless steel pins and springs.
Overall size of vise clamp w/o pin and push rods 50 x 25 x 15mm (2" x 1" x 5/8").
Technical Notes, Springloaded Vise Clamp (287KB PDF)
Screw used is 2-56 x 1/8 cup point set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15343-4
| Springloaded Vise Clamp, M4
| each
| $330.00
|
|
| 15341-20
| Replacement Pins for Vise Clamp, 1/2" long
| pkg/10
| 35.75
|
|
|
shown holding a screw
|
Universal Springloaded Vise
Springloaded vise clamp with reversible jaws for an opening up to 38mm. The universal jaws have special slots to
firmly hold round samples of various diameters both horizontally and vertically. Maximum width of the jaws is 32mm.
Material: machined aluminum with stainless steel springs, rods, screws, washers, and brass sliders. Overall size of the vise clamp
is 67 x 52 x 20mm (2.64" x 2" x 0.8"). M4 threaded hole in base.
Screws used are 2-56 x 1/8 cup point set screw, stainless steel and 4-40 x 1/4 , stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15342-4
| Universal Springloaded Vise with Reversible Clamps, M4
| each
| $242.55
|
|
|
|

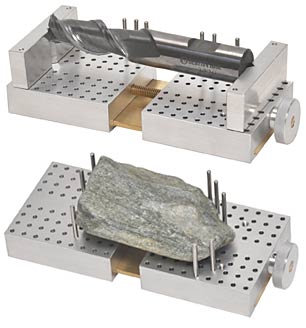

PELCO® Large Universal Vise Clamp
The large and extremely versatile vise clamp is intended for large and heavy samples or awkwardly shaped samples.
Will clamp samples between 0-90mm. The two bases move 0-25mm. The array of holes take precision stainless steel 1/16"
pins (10 pins are included) for either clamping the sample or for positioning the vise clamps (included). Each base has 9 positions for the vise clamp to enable optimum holding of samples up to 90mm. Overall size is
40W x 90L x 25mmH (1.6 x 3.5 x 1”). M4 threaded hole in the base.
Screws used are 2-56 x 3/16 flat head screw, stainless steel and 2-56 x 1/8 cup point set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15475-4
| PELCO® Large Universal Vise Clamp, M4
| each
| $742.50
|
|
| 15475-10
| Replacement Vise Clamps for Large Universal Vise
| pkg/2
| 126.50
|
|
| 15475-20
| Replacement Pins for Large Universal Vise, 3/4" long
| pkg/10
| 35.75
|
|
|

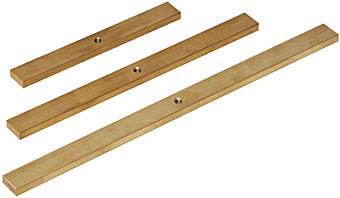

#15477-4 / 102mm (4")
#15476-4 / 152mm (6")
#15478-4 / 203mm (8")
#15477-40 / 102mm (4")
#15476-60 / 152mm (6")
#15478-80 / 203mm (8")
|
PELCO® Bar Clamp Vise, 4", 6" and 8"
The PELCO® Bar Clamp Vise is available in three lengths; 102mm (4"),
152mm (6") and 203mm (8") with the same clamps for each version. This bar type clamp can accommodate
specimens up to 72mm (3"), 127mm (5") and 178mm (7") in length respectively. The jaws are reversible,
offering different clamping options and they operate independently anywhere on the clamping bar. This will allow for
positioning the region of interest of the specimen within the travel range of the SEM stage.
Stainless steel 1/16" pins (6 pins are included)
can be placed on the clamps for awkwardly shaped samples. Clamping bars and clamps can be purchased additionally to
make up the best functional set for the job at hand. Made of vacuum grade aluminum with brass bar and brass thumbscrews
and stainless steel type 316 dowels. M4 threaded hole in bar.
#15477-10
|
Overall size for the 102mm (4") version: L x W x H 102 x 22 x 19mm (4" x 7/8" x ¾")
Overall size for the 152mm (6") version: L x W x H 152 x 22 x 19mm (6" x 7/8" x ¾")
Overall size for the 203mm (8") version: L x W x H 203 x 22 x 19mm (8" x 7/8" x ¾")
|
PELCO® Technical Notes: PELCO® Bar Clamp Vise, 4, 6, and 8" (80KB PDF)
Screws used are 4-40 x 3/8 Thumb, Brass and M2 x 3mm, Pan, Brass
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15477-4
| PELCO® Bar Clamp Vise, 102mm (4"), complete with bar and two clamps, M4
| each
| $352.00
|
|
| 15476-4
| PELCO® Bar Clamp Vise, 152mm (6"), complete with bar and two clamps, M4
| each
| 467.50
|
|
| 15478-4
| PELCO® Bar Clamp Vise, 203mm (8"), complete with bar and two clamps, M4
| each
| 495.00
|
|
| 15477-10
| Additional Clamp for 102mm (4"), 152mm (6") or 203mm (8") bar
| each
| 170.50
|
|
| 15477-40
| Additional 102mm (4") Bar, M4
| each
| 137.50
|
|
| 15476-60
| Additional 152mm (6") Bar, M4
| each
| 159.50
|
|
| 15478-80
| Additional 203mm (8") Bar, M4
| each
| 187.00
|
|
| 15341-20
| Replacement Pins for Bar Clamp, 1/2" long
| pkg/10
| 35.75
|
|
|
 |
PELCO Mini SEMClamp™ Ø15 x 10mm
Mini SEMclamp™ on a Ø15 x 10mm M4 cylinder mount. Convenient for holding flat or thin specimens such as Si chips,
wires, foil and small tubes. Material: vacuum grade aluminum with brass screw.
Screw used is M2 x 3mm, pan head screw, brass.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15494
| PELCO Mini SEMClamp™ Ø15 x 10mm, M4
| each
| $23.75
|
|
|
PELCO SEMClamp™
shown holding a wire
|
Small PELCO SEMClamp™ 15 x 10mm
PELCO SEMClamp™ holder 15mm (0.6") long with 10mm (0.4") wide clamping area. Convenient holder
for clamping down samples up to a thickness of 7mm under the clamping strips.
Overall dimensions 23 x 20 x 9mm (0.9" x 0.78" x 0.35").
Material: machined aluminum with brass screws.
Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan head screw, brass.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15347-4
| Small PELCO SEMClamp™ 15 x 10mm, M4
| each
| $94.60
|
|
|
|
Medium PELCO SEMClamp™ 25 x 15mm
PELCO SEMClamp™ holder 25mm (1") long with 15mm (0.6") wide clamping area. Convenient holder
for clamping down samples up to a thickness of 7mm under the clamping strips.
Overall dimensions 33 x 25 x 9mm (1.3" x 1" x 0.35").
Material: machined aluminum with brass screws.
Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan heads scew, brass.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15348-4
| Medium PELCO SEMClamp™ 25 x 15mm, M4
| each
| $104.50
|
|
|
shown with silicon chip on right
bottom
|
Thin Specimen Split Mount Holder
Simple but effective design to hold wafers and thin samples up to 3.2mm (1/8"). 15mm dia x 10mm H.
Made of aluminum with stainless steel allen screws. Allen wrench included.
Screw used is 2-56 x 1/4 hex set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15335-4
| Thin Specimen Split Mount Holder, M4
| each
| $26.40
|
|
|
|
Tube/Needle Clamp
A small tube, needle or wire clamp based on a standard Ø15x10mm cylinder mount with M4 thread.
Ideal for examining wire cross sections or needle tips. Holds wires, tubes and needles up to Ø2mm
(0.008"); hole is 5mm (0.20") deep. Material: vacuum grade aluminum with a stainless steel set screw.
Allen wrench included.
Screw used is 2-56 x 1/8 cup point set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15490
| Tube/Needle Clamp, Ø15 x 10mm, M4
| each
| $25.85
|
|
|
Top and Bottom
|
Small Set Screw Vise
Small set screw vise with an open slot of 4mm (0.157") wide and 5mm (0.197") deep.
Ø15 x 12mm x M4. Material: machined aluminum with stainless steel allen set screw. Allen wrench included.
Screw used is M3 x 6mm set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 16335
| Small Set Screw Vise, M4, Ø15 x 12mm H, M4
| each
| $24.15
|
|
|
|
Large Set Screw Vise
Set screw vise with an open slot of 10mm (.394") wide x 5mm (0.197") deep. ø25mm
(1") x 10mm (0.394") high. Material: machined aluminum with stainless steel set screw.
Allen wrench included.
Screws used are M3 x 6mm, flat head set screw, stainless steel and M3 x 8mm, flat head set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 16371
| Large Set Screw Vise, Ø25x10mm H, M4
| each
| $43.90
|
|
|
Top and Bottom
|
Double Slotted Mini Vise
Double slotted set screw vise with 2 ea. 1mm wide x 3mm deep slots to clamp thin specimens or cross sections.
Simple but effective design to hold wafers and thin samples up to 1mm (.039") thick. 15mm dia x 6mm H.
Made of aluminum with 2 stainless steel allen set screws. Allen wrench included.
Screw used is M2 x 3mm, Set, Stainless Steel
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 16341
| Double Slotted Set Screw Vise, M4, Ø15 x 6mm H
| each
| $23.55
|
|
|
|
Large Double Slotted Vise
Large Double Slotted Set Screw Vise with 2 ea. 2.5mm by 5mm deep slots. Dimensions ø25x10 mm (1 x 0.4").
Clamp thin specimens and cross sections without the need for tape of conductive paint. Material: machined aluminum
with 2 stainless steel allen set screws. Allen wrench included.
Screw used is M3 x 6mm, flat head set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 16372
| Large Double Slotted Set Screw Vise, Ø25mm x 10mm H, M4
| each
| $32.80
|
|
|
|
Large Double Slotted Vise
Ø32mm Large double slotted set screw vise with 2 ea. 2.5mm wide by 5mm deep slots.
Dimensions Ø32 x 10mm (1-1/4" x 0.394"). Clamp thin specimens and cross sections
without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel
allen set screws. Allen wrench included.
Screw used is M3 x 8mm, flat head set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 16312
| Large Double Slotted Set Screw Vise, Ø32 x 10mm, M4
| each
| $48.95
|
|
|

shown with pin stub on right
15363-1
15387-2; 15361; 15364 |
Single Pin Stub Holders
For holding and viewing SEM mounts with the standard 3.2mm pin in Hitachi SEM, FESEM, or FIB. Made of aluminum, includes
a pin locking screw. Four different heights are available: 10, 25, 38 and 55mm.
Screw used is 6-32 x 1/8 hex set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15363-1
| Single Pin Stub Holder Ø15x10mm H, M4
| each
| $27.50
|
|
| 15363-2
| Single Pin Stub Holder Ø15 x 15mm H, M4
| each
| 24.75
|
|
| 15387-2
| Single Pin Stub Holder Ø16 x 25mm H, M4
| each
| 30.25
|
|
| 15361
| Single Pin Stub Holder Ø16 x 38mm H, M4
| each
| 27.50
|
|
| 15364
| Single Pin Stub Holder Ø15 x 55mm H, M4
| each
| 27.50
|
|
|
|
Multi Holder for 4 Pin Stubs
Accommodates up to four standard 12.7mm (1/2") pin stubs
with 3.2mm (1/8) pin. Made of aluminum with stainless steel set screws. Allen wrench included.
Holder size is Ø31.8 x 11.25mm.
Screw used is 6-32 x 1/8 hex set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15310-4
| Multi Holder for 4 Pin Stubs, M4
| each
| $53.90
|
|
|
|
Multi Holder for 6 Pin Stubs
Accommodates up to six standard 12.7mm (1/2") pin stubs with 3.2mm (1/8) pin.
Can hold up to three 25.4mm (1") pin stubsMade of aluminum with stainless steel set screws. Allen wrench included.
Holder size is Ø42 x 10.7mm (Ø1.65" x 0.42").
Screw used is 6-32 x 1/8 hex set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15411
| Multi Holder for 6 Pin Stubs, M4
| each
| $82.50
|
|
|
|
Multi Holder for 8 Pin Stubs
Accommodates up to eight standard 12.7mm (1/2") pin stubs
with 3.2mm (1/8) pin. Can hold up to four 25.4mm (1") pin stubs. Made of aluminum with stainless steel set screws. Allen wrench included.
Holder size is Ø50 x 10.7mm (Ø1.97" x 0.42").
Screw used is 6-32 x 1/8 hex set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15413
| Multi Holder for 8 Pin Stubs, M4
| each
| $99.00
|
|
|
|
Multi Holder for 12 Pin Stubs
Accommodates up to twelve standard 12.7mm (1/2") pin stubs with 3.2mm (1/8)
pin. Can hold up to four 25.4mm (1") pin stubs. Made of aluminum with stainless steel set screws. Allen wrench included.
Holder size is Ø62 x 10.7mm (Ø2.44" x 0.42").
Screw used is 6-32 x 1/8 hex set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15417
| Multi Holder for 12 Pin Stubs, M4
| each
| $110.00
|
|
|
|
Multi Holder for 29 Pin Stubs
Accommodates up to 29 standard 12.7mm (1/2") pin stubs
with 3.2mm (1/8) pin. Made of aluminum with 302 type stainless steel springs to hold the pin stubs.
Holder size is Ø90 x 5mm (Ø3.5" x 0.2").
Screw used is 2-56 x 3/16 flat head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15418
| Multi Holder for 29 pin stubs, M4
| each
| $257.95
|
|
|
|
Multi Holder for 49 Pin Stubs
Accommodates up to 49 standard 12.7mm (1/2") pin stubs
with 3.2mm (1/8) pin. Made of aluminum with 302 type stainless steel springs to hold the pin stubs.
Holder size is Ø117 x 5mm (Ø4.6" x 0.2").
Screw used is 2-56 x 3/16 flat head screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15419
| Multi Holder for 49 pin stubs, M4
| each
| $433.95
|
|
|
|
45° Multi Holder for 6 Pin Stubs
Accepts up to 6 standard 12.7mm (1/2") pin stubs
with 3.2mm (1/8) pin. Pre-tilt 45° gives higher SE signal w/o tilting specimen stage.
Material: machined aluminum with stainless steel Allen set screws. Allen wrench included.
Diameter of holder is 35mm (1-3/8")
Screw used is M3 x 3mm set screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15429
| 45° Multi Holder for 6 pin stubs, M4
| each
| $118.80
|
|
|
4 Pin Holder, 25mm Diameter
(#16142-25)
6 Pin Holder, 32mm Diameter
(#16142-32)
Ø9.6mm Small Pin Stub
(#16142)
|
NEW Multi Holders for Smaller Diameter Pin Stubs
The 25mm diameter holder (#16142-25) can accommodate up to four Small Diameter Pin Stubs, and the larger 32mm diameter (#16142-32) holder can accommodate up to six. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Shown with and without Small Pins Stubs (Product #16142 Special Small Head Ø9.6mm, pin 8mm length x 3.2mm diameter), which are sold separately.
#16142-25P Dimensions are Ø25 x 10mm (0.98 x 0.39").
#16142-32P Dimensions are Ø32 x 10mm (1.26 x 0.39").
Material: machined aluminum with stainless steel allen set screws. Allen wrench included. Screw used is 6-32 x 1/8 Hex Set, SS
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 16142-25
| Multi Holder for 4 x Small Ø9.6mm Pin Stubs, M4
| each
| $58.75
|
|
| 16142-32
| Multi Holder for 6 x Small Ø9.6mm Pin Stubs, M4
| each
| 88.50
|
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 16142
| Special Small Pin Stub, aluminum, grooved edge
| pkg/50
| $92.50
|
|
|
|
Cylinder Holder, 22mm (7/8")
Specimen holder for cylinders up to 22mm (7/8") diameter. Made of aluminum with stainless steel
allen screw. Allen wrench included.
Screw used is M3 x 6mm socket head cap screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15402
| Specimen Holder for Cylinders up to 22mm (7/8"), M4
| each
| $42.90
|
|
|
|
Metallographic Mount Holder, 1" or 25mm
Specimen holder for 1" or 25mm metallographic mounts. Made of aluminum with stainless steel
allen screw. Allen wrench included.
Screw used is M3 x 6mm socket head cap screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15403
| Metallographic Mount Holder, 1" or 25mm, M4
| each
| $50.60
|
|
|
|
Metallographic Mount Holder, 1-1/4" or 30-32mm
Specimen holder for 1-1/4" or 30-32mm metallographic mounts. Made of aluminum with stainless
steel allen screw. Allen wrench included.
Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw. stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15404
| Metallographic Mount Holder, 1-1/4" or 30-32mm, M4
| each
| $63.80
|
|
|

|
Metallographic Mount Holder, 1-1/2" or 38-40mm
Specimen holder for 1-1/2" or 38-40mm metallographic mounts. Made of aluminum with stainless
steel allen screw. Allen wrench included.
Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15405
| Metallographic Mount Holder, 1-1/2" or 38-40mm, M4
| each
| $74.80
|
|
|
|
Metallographic Mount Holder, 2" or 50mm
Specimen holder for 2" or 50mm metallographic mounts. Made of aluminum with stainless steel
allen screw. Allen wrench included.
Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15406
| Metallographic Mount Holder, 2" or 50mm, M4
| each
| $81.40
|
|
|
 |
Multi Metallographic Mount Holder, 1" and 25mm
Specimen holder for 4 x 1" and 25mm metallographic mounts. Holder height is 0.41" (10.4mm), with recessed areas 0.31" (7.9mm) deep. Open sides for easier sample removal. Material: machined aluminum with stainless steel allen screws. Allen wrench included. Shown holding one metallographic mount (not included).
Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15304M-4
| Multi Metallographic Mount Holder, 4 x 1" and 25mm dia., M4
| each
| $145.00
|
|
|
 |
Multi Metallographic Mount Holder, 1-1/4" and 30-32mm
Specimen holder for 3 x 1-1/4" and 30-32mm metallographic mounts. Holder height is 0.41" (10.4mm), with recessed areas 0.31" (7.9mm) deep. Open sides for easier sample removal. Material: machined aluminum with stainless steel allen screws. Allen wrench included. Shown holding two metallographic mounts (not included).
Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15307M-4
| Multi Metallographic Mount Holder, 3 x 1-1/4" and 30-32mm dia., M4
| each
| $150.00
|
|
|
 |
Multi Metallographic Mount Holder, 1-1/2" and 38-40mm
Specimen holder for 3 x 1-1/2" and 38-40mm metallographic mounts. Holder height is 0.41" (10.4mm), with recessed areas 0.31" (7.9mm) deep. Open sides for easier sample removal. Material: machined aluminum with stainless steel allen screws. Allen wrench included. Shown holding three metallographic mounts (not included).
Screws used are M3 x 6mm Soc Cap, SS and M3 x 12mm Soc Cap, SS
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15306M-4
| Multi Metallographic Mount Holder, 3 x 1-1/2" and 38-40mm dia., M4
| each
| $155.00
|
|
|
Low Profile
|
Low Profile Metallographic Mount Holder, 1" and 25mm
Specimen holder for 1" and 25mm metallographic mounts and other cylindrical 1” diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a UHV-EL Reference Standard for EDS/WDS (not included).
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15603
| Low Profile Metallurgical Mount Holder, 1" and 25mm diameter, M4
| each
| $50.60
|
|
|
Low Profile
 |
Low Profile Metallographic Mount Holder, 1-1/4" and 30mm
Specimen holder for 1-1/4" and 30mm metallographic mounts and other cylindrical 1-1/4" diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15604
| Low Profile Metallographic Mount Holder, 1-1/4" and 30mm diameter, M4
| each
| $61.60
|
|
|
Low Profile
|
Low Profile Metallographic Mount Holder, 1-1/2" and 40mm
Specimen holder for 1-1/2" and 40mm metallographic mounts and other cylindrical 1-1/2" diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a specimen (not included).
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15605
| Low Profile Metallographic Mount Holder, 1-1/2" and 40mm diameter, M4
| each
| $72.60
|
|
|
|
|
Top Referencing Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter
Spring-loaded specimen holder for single metallographic mounts 1" to 1.5" in diameter. Two different heights allow for samples up to 0.5" (12.7mm) or 0.5-1.125" (12.7-28.6mm). Shown with, and without, an example of a mounted sample. The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount. The removeable insert is used for 1" samples and is removed for larger samples. Ideal for wide area imaging, and stitching images with minimal focus change between stage moves. M4 thread for Hitachi stage mount. Fixture dimensions are 2.2" (56mm) in diameter, and 0.975" (24.8mm) tall with standard caps and 1.475" (37.5mm) tall with the 15481-4 caps.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15481-4
| Top Referencing Holder for Single Met Mount, M4
| each
| $383.90
|
|
| 15481-41
| NEW Top Referencing Holder for Single Met Mount, M4, 0.5-1.125" (28.6mm) sample height
| each
| 398.90
|
|
|
 |
Dual Top Referencing Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter
Dual spring-loaded specimen holder for two metallographic mounts 1" to 1.5" in diameter. Two different heights allow for samples up to 0.5" (12.7mm) or 0.5-1.125" (12.7-28.6mm). The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount. The removeable insert is used for 1" samples and is removed for larger samples. Ideal for wide area imaging, and stitching images with minimal focus change between stage moves. Two locations for 12.7 mm pin stubs are included for mounting of analysis standards with the samples. In order for standards to be at the mounted sample height when using the 0.5-1.125" cap, a pin stub extender (15318) is needed (not included). M4 thread for Hitachi stage mount. Fixture dimensions are 4.88 x 2.2" (124 x 56mm) overall, and 0.975" (24.8mm) tall with standard caps and 1.475" (37.5mm) tall with the 15481-4 caps.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15482-4
| Top Referencing Holder for Dual Met Mount, M4
| each
| $544.50
|
|
| 15482-41
| NEW Top Referencing Holder for Dual Met Mount, M4, 0.5-1.125" (28.6mm) sample height
| each
| 574.50
|
|
|
 |
Quad Top Referencing Metallographic Mount Holder, 1" to 1.5" (25 to 38mm) diameter
Spring-loaded specimen holder for four metallographic mounts 1" to 1.5" in diameter. Two different heights allow for samples up to 0.5" (12.7mm) or 0.5-1.125" (12.7-28.6mm). The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount. The removeable insert is used for 1" samples and is removed for larger samples. Four locations for 12.7 mm stubs are included for mounting of analysis standards with the samples. In order for standards to be at the mounted sample height when using the 0.5-1.125" cap, a pin stub extender (15318) is needed (not included). Ideal for wide area imaging, and stitching images with minimal focus change between stage moves. M4 thread for Hitachi stage mount. Fixture dimensions are 4.9 x 4.9" (125 x 125mm) overall, and 0.975" (24.8mm) tall with standard caps and 1.475" (37.5mm) tall with the 15481-4 caps.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15483-4
| Top Referencing Holder for Quad Met Mount, M4
| each
| $1045.00
|
|
| 15483-41
| NEW Top Referencing Holder for Quad Met Mount, M4, 0.5-1.125" (28.6mm) sample height
| each
| 1105.00
|
|
|
 |
 |
| #15480 |
#15480-1 |
|
NEW Replacement Caps Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter
Replacement caps are available to freely swap between maximum sample height 0.5" and 0.5-1.125" variations using the same Top Referencing Metallographic Mount Holder base. Cap diameter is 2.2" (56mm) overall.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15480
| Cap for Top Referencing Holder, max 0.5" (13mm) sample height
| each
| $60.00
|
|
| 15480-1
| Cap for Top Referencing Holder, 0.5-1.125" (30mm) sample height
| each
| 75.00
|
|
|
25mm Diameter (#15337-25-4)
47mm Diameter (#15337-47-4) |
Filter Holders, M4 Threaded
Five filter holders for filters ranging from 13mm to 90mm diameter. Machined aluminum clamp holds filters in place unto M4 threaded aluminum base. Clamp is attached with one (13mm), two (25mm and 35mm), or three (47 and 90mm) screws. Socket screws are stainless steel M3 x 6mm, except 13mm holder has a shorter M3 X 4mm screw. Allen key included
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15337-13-4
| Holder for 13mm Ø Filter, M4
| each
| $50.60
|
|
| 15337-25-4
| Holder for 25mm Ø Filter, M4
| each
| 56.10
|
|
| 15337-35-4
| Holder for 35mm Ø Filter, M4
| each
| 59.40
|
|
| 15337-47-4
| Holder for 47mm Ø Filter, M4
| each
| 63.80
|
|
| 15337-90-4
| Holder for 90mm Ø Filter, M4
| each
| 95.70
|
|
|
|
EBSD Holder for 25mm (1") Mounts
70° pre-tilt EBSD holder for standard 25mm (1") embedding mounts. With this mount there is no need to
tilt the SEM specimen stage which avoids drift and enables quick setup for EBSD analysis. M4 compatible thread
in base. Made of vacuum grade aluminum with stainless steel Allen set screws. Allen wrench included.
Extended Button (15372-10)
is needed when used with the Dovetail Stage Adapters (15371 or 15397).
Screws used are M3 x 3mm set screw, stainless steel and M4 x 8mm socket head cap screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15327-4
| EBSD Holder for 25mm (1") mounts, 70° Pre-Tilt, M4
| each
| $154.55
|
|
|
|
EBSD Holder for /32mm (1-1/4") Mounts
70° pre-tilt EBSD holder for standard 1-1/4" /32mm embedding mounts. With this mount there is no need to tilt the
SEM specimen stage which avoids drift and enables quick setup for EBSD analysis. M4 compatible thread in base.
Made of vacuum grade aluminum with stainless steel Allen set screws. Allen wrench included.
Screws used are M3 x 3mm set screw, stainless steel and M4 x 8mm socket head cap screw, stainless steel.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15328-4
| EBSD Holder for 1-32mm (1-1/4") mounts, 70° Pre-Tilt, M4
| each
| $167.75
|
|
|
