SEM Supplies & Accessories Overview
SEM Finder Grids for Placement on Specimen Mounts
PELCO® SEM Specimen Preparation Stations

SEM Pin Stub Specimen Mounts



pin head specimen mounts for SEM mini sem pin stubs

PELCO® Pin Mount Starter Kits with Storage Box

PELCO® Pin Mount Starter Kits contain a selection of the most popular pin mounts together with conductive silver and carbon paint, conductive carbon tabs and SEM mount grippers. All supplied and stored in a convenient and practical storage box.

See kit contents and ordering information below.

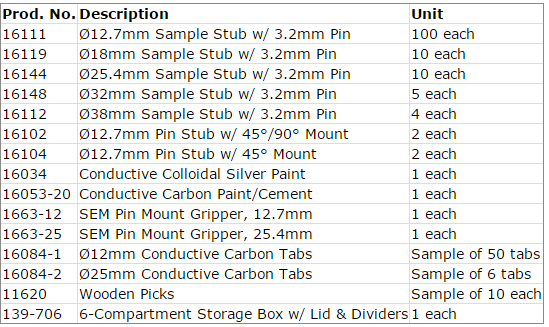

Prod. No. 76250-10 PELCO® Pin Mount Starter Kit
for Thermo Fisher/FEI, TESCAN with Storage Box,

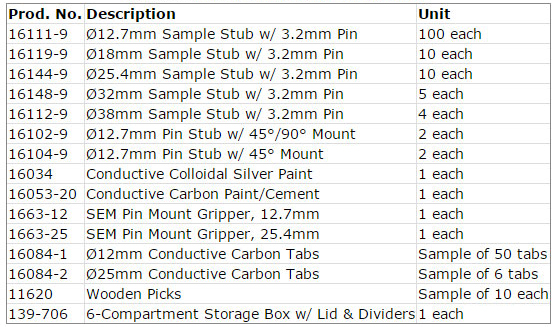

9mm long pin mountsKit 76250-10		 Prod. No. 76260-20 PELCO® Pin Mount Starter Kit
for ZEISS/LEO with Storage Box,
6mm long pin mounts
Kit 76250-20

Made in USA
Prod # Description Unit Price Order / Quote
76250-10 PELCO® Pin Mount Starter Kit with Storage Box for Thermo Fisher Scientific/FEI, TESCAN (also for Philips, Aspex, Cambridge, Leica, CamScan) each $208.50
Qty:
76260-20 PELCO® Pin Mount Starter Kit with Storage Box for ZEISS/LEO each 232.10
Qty:




FEI, TESCAN (also for Philips, Aspex, Cambridge, Leica, CamScan)


Made in USA
 dimensions 1  sem pin mount
16111

Prod # Description Unit Price Order / Quote
Standard SEM Pin Stub Mount, Ø12.7mm x 8mm pin height
16111 FEI, Tescan, ZEISS (also for Philips, Aspex, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC), aluminum, grooved edge pkg/50 $18.00
Qty:
pkg/100 34.00
Qty:
pkg/500 165.00
Qty:
pkg/1000 310.00
Qty:
 dimensions 1  16111N Numbered
16111N
Numbered

Prod # Description Unit Price Order / Quote
16111N Ø12.7mm FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, Leica, CamScan, ETEC), aluminum, grooved edge, numbered 1-alpha/4-numeric, designate sequence when ordering. pkg/500 $660.00
Qty:
pin mount dimensions zeiss pin mount

Prod # Description Unit Price Order / Quote
Special ZEISS/LEO SEM Pin Stub Mount, Ø12.7mm x 9mm pin height
16202 ZEISS/LEO Mount (no chamfer on leg), aluminum, grooved edge pkg/100 $155.00
Qty:
pkg/500 700.00
Qty:
sem specimen mount

Prod # Description Unit Price Order / Quote
Shorter pin for all ZEISS/LEO SEM, FESEM & FIB Systems, Ø12.7mm x 6mm pin height
16111-9 ZEISS/LEO SEM, FESEM & FIB Systems, aluminum, grooved edge, Ø12.7mm pkg/50 $25.00
Qty:
pkg/100 40.00
Qty:
pkg/500 185.00
Qty:
pkg/1000 350.00
Qty:
slotted head mount slotted head pin mount

Prod # Description Unit Price Order / Quote
Special Small Head Ø9.6mm x 8mm pin height for TFS/FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, Leica, CamScan)
16142 Special Small Pin Stub, aluminum, grooved edge
pkg/50 $92.50
Qty:

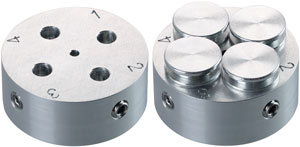

NEW Multi Holders for Smaller Diameter Pin Stubs, available in pin and M4 versions.
18mm diameter pin stub specimen mount 18mm diameter grooved edge pin stub specimen mount

Prod # Description Unit Price Order / Quote
Ø18mm x 8mm pin height
16119 FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, Leica, CamScan) aluminum, grooved edge, Ø18mm pkg/10 $21.50
Qty:
pkg/50 97.50
Qty:
pkg/100 180.00
Qty:
18mm diameter pin stub specimen mount 18mm diameter grooved edge pin stub specimen mount

Prod # Description Unit Price Order / Quote
Ø18mm x 6mm pin height; Shorter pin for all ZEISS/LEO SEM, FESEM and FIB Systems
16119-9 ZEISS/LEO SEM, FESEM & FIB Systems, aluminum, grooved edge, Ø18mm pkg/10 $26.00
Qty:
pkg/50 117.50
Qty:
pkg/100 215.00
Qty:
cambridge pin mount dimensions cambridge pin mount

Prod # Description Unit Price Order / Quote
Large Ø25.4mm x 9.5mm pin height
16144 FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, Leica, CamScan), aluminum, grooved edge, Ø25.4mm pkg/10 $27.50
Qty:
pkg/50 125.00
Qty:
pkg/100 235.00
Qty:
cambridge pin mount dimensions cambridge pin mount

Prod # Description Unit Price Order / Quote
Ø25.4mm x 6mm pin height; Shorter pin for all ZEISS/LEO SEM, FESEM/FIBS,
16144-9 ZEISS/LEO 1500 SEM, FESEM & FIB Systems, aluminum, grooved edge, Ø25.4mm pkg/10 $20.50
Qty:
pkg/50 92.50
Qty:
pkg/100 175.00
Qty:
phillips pin mount dim phillips pin mount

Prod # Description Unit Price Order / Quote
Large Ø32mm x 9.5mm pin height
16148 FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, Leica, CamScan), aluminum, grooved edge, Ø32mm pkg/10 $23.00
Qty:
pkg/50 105.00
Qty:
pkg/100 190.00
Qty:
phillips pin mount dim phillips pin mount

Prod # Description Unit Price Order / Quote
Ø32mm x 6mm pin height; shorter pin for all ZIESS/LEO SEM, FESEM and FIB systems
16148-9 ZEISS/LEO SEM, FESEM & FIB systems, aluminum, grooved edge, Ø32mm pkg/10 $33.00
Qty:
pkg/50 152.50
Qty:
pkg/100 305.00
Qty:

Prod # Description Unit Qty Price Order / Quote
Large Ø38mm x 9.5mm pin height
16112 FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, Leica, CamScan), aluminum, grooved edge, Ø38mm each 1-9 $7.20
Qty:
10+ 6.50

Prod # Description Unit Price Order / Quote
Ø38mm x 6mm pin height; shorter pin for all ZEISS/LEO SEM, FESEM and FIB systems
16112-9 ZEISS/LEO SEM, FESEM & FIB systems, aluminum, grooved edge, Ø38mm each $8.75
Qty:
sem 50mm pin mount dimensions sem 50mm pin mount

Prod # Description Unit Price Order / Quote
Large Ø50mm x 9.5mm pin height
16113 FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan), aluminum, grooved edge, Ø50mm each $17.80
Qty:
sem 50mm pin mount dimensions sem 50mm pin mount

Prod # Description Unit Price Order / Quote
Ø50mm x 6mm pin height; shorter pin for all ZEISS/LEO SEM, FESEM and FIB systems
16113-9 ZEISS/LEO SEM, FESEM & FIB systems, aluminum, grooved edge, Ø50mm each $21.10
Qty:
sem 63mm pin mount dimensions sem 63mm pin mount

Prod # Description Unit Price Order / Quote
Large Ø63mm x 9.5mm pin height
16114 FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan), aluminum, grooved edge, Ø63mm each $40.15
Qty:
sem 63mm pin mount dimensions sem 63mm pin mount

Prod # Description Unit Price Order / Quote
Large Ø63mm x 6mm pin height; shorter pin for all ZEISS/LEO SEM, FESEM and FIB systems
16114-9 ZEISS/LEO SEM, FESEM & FIB systems, aluminum, grooved edge, Ø63mm each $43.45
Qty:
sem 100mm pin mount dimensions

Prod # Description Unit Price Order / Quote
Large Ø100mm x 9.5mm pin height
16116 FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan), aluminum, Ø100mm each $103.40
Qty:
sem 100mm pin mount
 dimensions 1

Prod # Description Unit Qty Price Order / Quote
16187-12 PELCO® Q Pin Stub, 12.7 x 12.7mm (1/2 x 1/2") each 1-9 $4.65
Qty:
10+ 4.35
 18mm diameter pin stub specimen mount

Prod # Description Unit Qty Price Order / Quote
16187-19 PELCO® Q Pin Stub, 19 x 19mm (3/4 x 3/4") each 1-9 $8.90
Qty:
10+ 8.45
 cambridge pin mount dimensions

Prod # Description Unit Qty Price Order / Quote
16187-25 PELCO® Q Pin Stub, 25.4 x 25.4mm (1 x 1") each 1-9 $7.95
Qty:
10+ 7.65
amray dimensions amray pin mount

Prod # Description Unit Price Order / Quote
AMRAY Special Slotted Head, Ø12.7mm. x 12.5mm pin height
16242 AMRAY special slotted head, aluminum, grooved edge pkg/100 $145.00
Qty:
amray pin mount dim amray pin mount

Prod # Description Unit Price Order / Quote
Ø12.7mm x 15mm pin height
16261 AMRAY 1000/1200/1400, aluminum pkg/50 $44.00
Qty:
pkg/100 85.00
Qty:
pkg/500 415.00
Qty:
pkg/1000 790.00
Qty:
specimen mount dim

amray specimen mount
16270


16273

Prod # Description Unit Price Order / Quote
Ø25.4mm Pin Stub, 2 heights available
16270 AMRAY 1000/1200, aluminum, 15mm pin height pkg/10 $23.50
Qty:
pkg/50 110.00
Qty:
pkg/100 205.00
Qty:
16273 AMRAY 1000/1200, aluminum, 4.2mm pin height pkg/10 24.00
Qty:
pkg/50 100.00
Qty:
pkg/100 180.00
Qty:
pkg/500 900.00
Qty:

well mount specs well mount pin stub

Prod # Description Unit Price Order / Quote
Well Mount, Aluminum
16539 Well Mount, 15 x 3mm, Well Depth 1.5mm pkg/10 $61.50
Qty:
specimen mount dim cambridge specimen mount

Prod # Description Unit Price Order / Quote
16115 Cambridge S-4, CamScan, aluminum, Ø31.4mm x 6.45 H pkg/10 $25.50
Qty:
pkg/100 230.00
Qty:
pkg/500 1100.00
Qty:
specimen mount 40 dim sem specimen mount 45 45º SEM Mount Ø12.7mm for FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs. Aluminum, grooved edge, 7.8mm pin height.

Prod # Description Unit Price Order / Quote
16101 45º Mount pkg/10 $46.00
Qty:
pkg/100 410.00
Qty:
specimen mount 45-90 dim specimen pin mount 45-90 45º / 90º SEM Mount Ø12.7mm for FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEM's. Pin leg fits into LEO and other SEMs. Aluminum, grooved edge, 7.8mm pin height.

Prod # Description Unit Price Order / Quote
15359 45º / 90º Mount each $3.30
Qty:
sem specimen mount dimensions Low Profile
45 degree low profile specimen mount for sem 		Low profile 45º SEM Mount Ø12.7mm, pin leg fits into FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs. Aluminum, grooved edge, 9.5mm pin height.

Prod # Description Unit Price Order / Quote
16102 Low Profile 45º Mount each $4.60
Qty:
sem specimen mount dimensions Low Profile
45 degree low profile specimen mount for sem 		Low profile 45º SEM Mount Ø12.7mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16102-9 Low Profile 45º Mount, short 6mm pin each $3.30
Qty:
sem specimen mount dimensions Low Profile
low profile 45 and 90 degree sem mount 		Low profile 45º / 90º SEM Mount Ø12.7mm, pin leg fits into FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs. Aluminum, grooved edge, 9.5mm pin height.

Prod # Description Unit Price Order / Quote
16104 Low Profile 45º / 90º Mount each $3.30
Qty:
sem specimen mount dimensions Low Profile
low profile 45 and 90 degree sem mount 		Low profile 45º / 90º SEM Mount Ø12.7mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16104-9 Low Profile 45º - 90º Mount, short 6mm pin each $3.85
Qty:
sem specimen mount dimensions Low Profile
low profile 45 and 90 degree sem mount		 Reduced height 45º / 90º SEM Mount Ø12.7mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16604-9 Reduced height 45º / 90º Mount, short 6mm pin each $7.15
Qty:
low profile 70 degree sem mount dimensions Low Profile
low profile 70 degree sem mount 		Low profile 70º EBSD SEM Mount Ø12.7mm for FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs. Aluminum, grooved edge, 9.5mm pin height.

Prod # Description Unit Price Order / Quote
16109 Low Profile 70º Mount, Ø12.7mm each $5.40
Qty:
low profile 70 degree sem mount dimensions double 45 degree mount with 6mm pin for ZEISS/LEO Double 45º SEM Mount Ø25mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16331-9 Double 45º Specimen Mount, Ø25, short 6mm pin each $9.35
Qty:
45º/90º SEM Mount 45º/90º SEM Mount 45º/90º SEM Mount Ø25mm, pin leg fits into FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs. Aluminum, grooved edge, 9.5mm pin height.

Prod # Description Unit Price Order / Quote
16355 45º/90º SEM Mount, Ø25mm each $10.95
Qty:
low profile 70 degree sem mount dimensions 45º/90º SEM Mount 45º/90º SEM Mount Ø25mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16355-9 45º/90º SEM Mount, Ø25mm, short 6mm pin each $10.95
Qty:
45º/90º SEM Mount 45º/90º SEM Mount

Double 90º SEM Mount Ø12.7mm, pin leg fits into FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs. Aluminum, grooved edge, 9.5mm pin height.

Prod # Description Unit Price Order / Quote
16353 Double 90º SEM Mount, Ø12.7mm each $9.35
Qty:
45º/90º SEM Mount 45º/90º SEM Mount

Double 90º SEM Mount Ø12.7mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16353-9 Double 90º SEM Mount, Ø12.7mm, short 6mm pin each $9.35
Qty:
Double 90º SEM Mount Double 90º SEM Mount Double 90º SEM Mount Ø25mm, pin leg fits into FEI, Tescan, ZEISS (also for Philips, Leo, Cambridge, AMRAY, Leica, CamScan, ETEC) SEMs. Aluminum, grooved edge, 9.5mm pin height.

Prod # Description Unit Price Order / Quote
16354 Double 90º SEM Mount, Ø25mm each $9.35
Qty:
45º/90º SEM Mount 45º/90º SEM Mount Double 90º SEM Mount Ø25mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16354-9 Double 90º SEM Mount, Ø25mm, short 6mm pin each $12.65
Qty:
45º/90º SEM Mount Low Profile 16654-9 Low Profile Double 90º SEM Mount Ø25mm, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16654-9 Low Profile Double 90º SEM Mount, Ø25mm, short 6mm pin each $9.35
Qty:
45º/90º SEM Mount 16315-9 45º/90º Specimen Mount, Ø32, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16315-9 45º/90º Specimen Mount, Ø32, short 6mm pin each $12.65
Qty:
45º/90º SEM Mount 16654-9 Double 90º Specimen Mount, Ø32, short 6mm pin for ZEISS/LEO. Aluminum, grooved edge.

Prod # Description Unit Price Order / Quote
16314-9 Double 90º Specimen Mount, Ø32, short 6mm pin each $12.65
Qty:




Serial Block-Face EM Pin Mounts
Made in USA
dimensions 16145 16145

Prod # Description Unit Price Order / Quote
Serial Block-Face Pin Mounts for Thermo Scientific VolumeScope™ Each pin stub is 8.0mm in diameter with a 2.0mm specimen flat and grooved area for improved handling.
16145 Thermo Scientific VolumeScope™ Pin Stub with Specimen Flat pkg/10 $20.50
Qty:
pkg/ 50 97.50
Qty:
pkg/ 100 185.00
Qty:



Made in USA
16950-1
 16950-1
#16950-1

Prod # Description Unit Price Order / Quote
Gatan 3View SEM Pin Stubs These beveled pin stubs are used to mount the sample for the automated serial-sectioning of a block face inside the Gatan 3View system. The top beveled surface where the sample is mounted comes in two sizes 1.4mm (#16950-1) and 2.4mm (#16950-5). The stem on the pin is 2mm in diameter and the overall pin length is 12.5mm. The stubs are sold in packs of 10 and 50.
16950-1 Gatan 3View Pin Stubs, 1.4mm flat top surface, 2mm pin x 12.5mm H, aluminum pkg/10 $16.00
Qty:
pkg/ 50 76.00
Qty:
16950-3 Gatan 3View Pin Stubs, 2.4mm flat top surface, 2mm pin x 12.5mm H, aluminum pkg/10 16.00
Qty:
pkg/ 50 76.00
Qty:
16950-1 16950-3
#16950-3




NEW Kleindiek Prober Shuttle Pin Stubs

12.5mm and 25mm diameter pin stubs for the Kleindiek Prober Shuttle, 3mm pin height.

16175-12
 16175-12

Prod # Description Unit Price Order / Quote
16175-12 Kleindiek Prober Shuttle Pin Stubs, Ø12.5mm pkg/10 $32.00
Qty:
pkg/ 50 138.00
Qty:
16175-12
 16175-25

Prod # Description Unit Price Order / Quote
16175-25 Kleindiek Prober Shuttle Pin Stubs, Ø25mm pkg/5 $62.75
Qty:
pkg/ 10 108.25
Qty:




SEM Pin Mounts with Engraved & Numbered Divisions

for FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, TESCAN and Camscan SEMs
Pin is 3.2mm (1/8") and 9mm (3/8") long
12.7mm pin mount with 3 divisions

Prod # Description Unit Qty Price Order / Quote
16360 Ø12.7mm pin mount with 3 divisions each 1-9 $5.30
Qty:
10+ 4.75
18mm pin mount with 3 divisions

Prod # Description Unit Qty Price Order / Quote
16363 Ø18mm pin mount with 3 divisions each 1-9 $6.40
Qty:
10+ 5.20
25mm pin mount with 9 divisions

Prod # Description Unit Qty Price Order / Quote
16364 Ø25mm pin mount with 9 divisions each 1-9 $6.80
Qty:
10+ 6.40
32mm pin mount with 12 divisions

Prod # Description Unit Qty Price Order / Quote
16367 Ø32mm pin mount with 12 divisions each 1-9 $9.00
Qty:
10+ 8.35




Engraved PELCO® Q Pin Stubs

Engraved

Prod # Description Unit Qty Price Order / Quote
16190-124 PELCO® Q Pin Stub, 12.7 x 12.7mm (1/2 x 1/2"), 4 Divisions each 1-9 $10.45
Qty:
10+ 9.80
Engraved

Prod # Description Unit Qty Price Order / Quote
16190-199 PELCO® Q Pin Stub, 19 x 19mm (3/4 x 3/4"), 9 Divisions each 1-9 $12.65
Qty:
10+ 12.00




Low Profile Pin Mounts for FIB Applications

low profile fib pin mount low profile pin mount for fib

Prod # Description Unit Price Order / Quote
Aluminum, 12.7mm dia., Flat
16170 Low profile flat FIB pin mount pkg/10 $22.50
Qty:
pkg/100 203.00
Qty:
short pin low profile pin mount short pin low profile mount for fib

Prod # Description Unit Price Order / Quote
short pin version of 16170, pin 6mm, total height 7mm
16176 Low profile flat FIB pin mount with short pin (6mm) for ZEISS/LEO systems pkg/10 $17.10
Qty:
pkg/100 155.00
Qty:
low profile fib pin mount 90° low profile 90° pin mount for fib

Prod # Description Unit Price Order / Quote
Aluminum, 12.7mm dia., 90°
16171 Low profile 90° FIB pin mount pkg/10 $24.00
Qty:
pkg/100 216.00
Qty:
short pin low profile fib pin mount 90° short pin low profile 90° pin mount for fib

Prod # Description Unit Price Order / Quote
short pin version of 16171, pin 6mm, total height 9.15mm, ZEISS/LEO
16177 Low profile 90° FIB pin mount with short pin (6mm) for ZEISS/LEO systems pkg/10 $42.10
Qty:
pkg/100 400.00
Qty:
low profile 38° pin mount for fib low profile 38° pin mount for fib

Prod # Description Unit Price Order / Quote
Aluminum, 12.7mm dia., 38° FEI/Thermo Fisher
16172 Low profile 38° FIB mount for FEI/Thermo Fisher pkg/10 $28.00
Qty:
pkg/100 252.00
Qty:
short pin low profile fib pin mount 36° short pin low profile 36° pin mount for fib

Prod # Description Unit Price Order / Quote
Aluminum, 12.7mm, pin 6mm, total height 9.15mm, 36° ZEISS/LEO
16173 Low profile 36° FIB mount with short pin (6mm) for ZEISS/LEO pkg/10 $45.50
Qty:
pkg/100 410.00
Qty:
short pin low profile fib pin mount 35° short pin low profile 35° pin mount for fib

Prod # Description Unit Price Order / Quote
Aluminum, 12.7mm, pin 6mm, total height 9.15mm, 35° TESCAN
16174 Low profile 35° FIB mount with short pin (6mm) for TESCAN pkg/10 $45.50
Qty:
pkg/100 410.00
Qty:
Low Profile 35 degree FIB Mount short pin low profile 55/35° pin mount for fib

Prod # Description Unit Price Order / Quote
Aluminum, 12.7mm, pin 6mm, total height 13mm, 55°/35° TESCAN
16605 Low profile double pre-tilt (55°/35°) FIB mount with short pin (6mm) for TESCAN each $7.50
Qty:
Low Profile 35 degree FIB Mount short pin low profile 52/38° pin mount for fib

Prod # Description Unit Price Order / Quote
Aluminum, 12.7mm, pin 6mm, total height 13mm, 52°/38° FEI/Thermo Fisher
16606 Low profile double pre-tilt (52°/38°) FIB mount with short pin (6mm) for FEI/Thermo Fisher each $7.50
Qty:
16607 spec short pin low profile 52/38° pin mount for fib

Prod # Description Unit Price Order / Quote
NEW Aluminum, 12.7mm, pin 6mm, total height 13mm, 54°/36° ZEISS/LEO
16607 Low profile double pre-tilt (54°/36°) FIB mount with short pin (6mm) for ZEISS/LEO each $7.50
Qty:




PELCO Pin Stub Extender drawing PELCO Pin Mount Extender

PELCO® Pin Stub Extender

12.5mm (1/2") high, pin stub extender allows bringing pin stubs and pin stub sample holders closer to the pole piece without moving the SEM sample stage. Multiple extenders are stackable. Compatible with all standard 3.2mm (1/8") pin stubs or pin stub SEM holders with maximum pin length of 10mm (0.4"). Made of vacuum grade aluminum with stainless steel allen set screw. Allen key included

Screw used is M3 x 3mm, Set, SS

Made in USA
Prod # Description Unit Price Order / Quote
15318 PELCO® Pin Stub Extender, 12.5mm (1/2"), 3.2mm (1/8") Pin each $43.45
Qty:




sem pin mount dimensionspin head specimen mounts for SEM mini sem pin stubs

Mini Pin Stubs

Mini pin stubs are ideal for small samples or parts which need to be examined individually. Takes less space with a head diameter of 6.5mm, small samples are easier to locate and it is a low cost alternative for the standard 12.7mm pin stub.
Available with the standard 3.2mm pin in two lengths: most common 9.5mm length for many SEM's and shorter 6.25mm for ZEISS/LEO SEMs. This mini pin stub is available in three materials:
  • Aluminum - for standard imaging applications
  • Copper - for Cryo and heating stage applications
  • Stainless Steel (18-8) - as a non-corrosive and cleaner alternative for environmental SEM's and FESEM

Prod # Description Unit Price Order / Quote
16180 Aluminum Mini Pin Stub with 9.5mm pin for FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC), Head 6.6 x 1.3mm pkg/100 $14.10
Qty:
16181 Aluminum Mini Pin Stub for ZEISS/LEO with 6.25mm, shorter pin, Head 6.6 x 1.3mm pkg/100 14.30
Qty:
16184 Copper Mini Pin Stub with 9.5mm pin for FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC), Head 6.5 x 1.2mm pkg/100 21.80
Qty:
16185 Copper Mini Pin Stub for ZEISS/LEO with 6.25mm, shorter pin, Head 6.6 x 1.2mm pkg/100 21.45
Qty:
16188 Stainless Steel Mini Pin Stub with 9.5mm pin for FEI, Tescan, ZEISS (also for Philips, LEO, Cambridge, AMRAY, Leica, CamScan, ETEC), Head 6.6 x 1.2mm pkg/100 32.80
Qty:
16189 Stainless Steel Mini Pin Stub for ZEISS/LEO with 6.25mm, shorter pin, Head 6.6 x 1.2mm pkg/100 31.70
Qty:
