Tungsten Wire Baskets

A wide selection of single and multiple strand wire baskets for EM and thin film applications.

The tungsten boats, baskets and filaments are manufactured from high grade tungsten. Of all metals pure form, tungsten has the highest melting point (3422°C / 6192°F), the lowest vapor pressure at temperatures above 1650°C (3000°F) and has the highest tensile strength. Tungsten also has the lowest coefficient of thermal expansion of any pure metal. This combination of properties makes tungsten the ideal material for evaporation sources. During evaporation, it can alloy with some materials such as Al or Au. In this case, another evaporation source material should be used such as alumina coated boats or baskets. Other materials useful for evaporation sources are molybdenum and tantalum. Please see the Deposition Techniques Table for extensive information on vacuum deposition and suitability of evaporation sources.

We also offer a wide range of evaporation materials.





Tungsten Wire Baskets

Single Strand Tungsten Wire Baskets

Single strand, thin tungsten wire (0.5-0.75mm) baskets designed for small power supplies rated at 30-50A as commonly used in EM coating system. Suitable for thin films only.

Prod. No. Turns I.D.
(mm)
Height
(mm)
Overall Length
(mm)
Wire dia.
(mm)/(inches)
72-1
9 4 8 72 0.50 / 0.02
73-1
8 9 13 82 0.75 / 0.03
74-1
9 4 7 80 0.50 / 0.02
75-1
8 7 9 100 0.50 / 0.02

Prod # Description Unit Qty Price Order / Quote
72-1 Tungsten Wire Baskets pkg 10 1-9 $27.00
Qty:
10+ 24.30
73-1 Tungsten Wire Baskets pkg 10 1-9 35.00
Qty:
10+ 31.50
74-1 Tungsten Wire Baskets pkg 10 1-9 30.75
Qty:
10+ 29.21
75-1 Tungsten Wire Baskets pkg 10 1-9 40.00
Qty:
10+ 36.00




Single Strand Wire basket

Single Strand Tungsten Wire Basket

0.030" (0.76mm) wire diameter, 5 coils, 1-7/8" L (47.6mm) , 1/2" (12.7mm) basket height, 3/16" (4.8mm) inside coil diameter.
Settings: 2.48V/23A/57W for 1800°C

Prod # Description Unit Price Order / Quote
76-1 Single strand Tungsten Wire Basket, 5 coils, 1/2"x 3/16" pkg/5 $20.35
Qty:



Single strand tungsten wire basket

Single Strand Tungsten Wire Basket

0.030" (0.76mm) wire diameter, 4 coils, 1-7/8" L (47.6mm) , 5/8" (15.9mm) basket height, 1/4" (6.35mm) inside coil diameter.
Settings: 2.90V/23A/67W for 1800°C

Prod # Description Unit Price Order / Quote
76-2 Single Strand Tungsten Wire Basket, 4 coils, 5/8"x 1/4" pkg/5 $21.35
Qty:



single strand tungsten wire basket

Single Strand Tungsten Wire Basket

Single strand wire basket, 0.030" (0.76mm) wire diameter, 5 coils, 1-7/8" L (47.6mm) , 3/4" (19mm) basket height, 1/4" (6.35mm) inside coil diameter.
Settings: 3.77V/23A/87W for 1800°C

Prod # Description Unit Price Order / Quote
76-3 Single Strand Tungsten Wire Basket, 5 coils, 3/4" x 1/4" pkg/5 $21.35
Qty:



3-strand tungsten wire basket

3-Strand Tungsten Wire Basket

3 x 0.025" (0.635mm) wire diameter, 5 coils, 1-7/8" L (47.6mm) , 1/2" (12.7mm) basket height, 3/16" (4.8mm) inside coil diameter.
Settings: 2.30V/23A/90W for 1800°C

Prod # Description Unit Price Order / Quote
76-13 3-Strand Tungsten Wire Basket, 5 coils, 1/2" x 3/16" pkg/5 $22.30
Qty:



3-strand tungsten wire basket

3-Strand Tungsten Wire Basket

3 x 0.025" (0.635mm) wire diameter, 4 coils, 1-7/8" L (47.6mm) , 5/8" (15.9mm) basket height, 1/4" (6.35mm) inside coil diameter.
Settings: 2.66V/42A/112W for 1800°C

Prod # Description Unit Price Order / Quote
76-23 3-Strand Tungsten Wire Basket, 4 coils, 5/8" x 1/4" pkg/5 $21.55
Qty:



3-strand tungsten wire basket

3-Strand Tungsten Wire Basket

3 x 0.025" (0.635mm) wire diameter, 5 coils, 1-7/8" L (47.6mm) , 3/4" (19mm) basket height, 1/4" (6.35mm) inside coil diameter.
Settings: 3.54V/43A/152W for 1800°C

Prod # Description Unit Price Order / Quote
76-33 3-Strand Tungsten Wire Basket, 5 coils, 3/4" x 1/4" pkg/5 $26.00
Qty:



Alumina Coated Evaporation Sources

Ideal for low power thermal evaporation supplies
low power evaporation baskets alumina or ceramic coated alumina or ceramic coated tungsten wire baskets
The Alumina coated tungsten evaporation basket is an efficient design which acts as an internally heated crucible. The ceramic coated evaporation baskets for vacuum evaporation have the distinct advantage that they require relatively low power (63 to 768 W) to reach a temperature of 1475°C (high enough to evaporate Ni in high vacuum). This will enable many researchers to experiment with thermal evaporation who only have access to low cost, low power evaporation supplies. The closed side crucible form allows to use pallets, grains, wires or even powders as evaporation material for upwards evaporation applications. Molten metal evaporants are contained as an induction propelled spinning ball inside the cavity. Most materials can be completely evaporated without loss to the crucible. A broad range of evaporation materials can be used in these alumina coated sources: Au, Ag, Pd, In, Sn, Sb, Bi, Cd, Cu, Pb, Zn, Co, Ni, Fe, Mn and alloys such as Nichrome and Permalloy. Maximum temperature for this type of alumina coated tungsten basket should not exceed 1800°C. There are 6 different types of baskets available with a top opening ranging from 0.15" to 0.90".

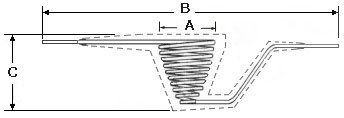

Prod. No. / Style Volts Amps Watts Temp Wire Dia. "A"
Top I.D.
Inside
Depth
"B"
OAL
"C"
Height
Vol
cm³
84-21     Style 1 5.70 11 63 1475°C 0.020" 0.150" 0.225" 4" 0.375" 0.021
84-22     Style 2 6.20 40 248 1475°C 0.040" 0.375" 0.350" 4" 0.500" 0.21
84-23     Style 3 6.90 39 272 1475°C 0.040" 0.420" 0.425" 4" 0.575" 0.32
84-24     Style 4 13.00 33 429 1475°C 0.040" 0.790" 0.725" 3-1/4" 0.875" 1.92
84-25     Style 5 7.00 50 350 1475°C 0.050" 0.500" 0.775" 4" 0.925" 0.83
84-27     Style 6 15.80 49 768 1475°C 0.050" 0.900" 0.975" 4" 1.125" 3.36

Prod # Description Unit Price Order / Quote
84-21 Style 1, Alumina Coated Tungsten Wire Basket, ID 0.150", 63 Watts each $100.00
Qty:
84-22 Style 2, Alumina Coated Tungsten Wire Basket, ID 0.375", 248 Watts each 115.50
Qty:
84-23 Style 3, Alumina Coated Tungsten Wire Basket, ID 0.420", 272 Watts each 145.00
Qty:
84-24 Style 4, Alumina Coated Tungsten Wire Basket, ID 0.790", 429 Watts each 213.75
Qty:
84-25 Style 5, Alumina Coated Tungsten Wire Basket, ID 0.500", 350 Watts each 146.25
Qty:
84-27 Style 6, Alumina Coated Tungsten Wire Basket, ID 0.900", 768 Watts each 167.00
Qty:




molybdenum foil, 0.002" thick (0.05mm), 6 x 6" (15.2 x 15.2cm)

Molybdenum Foil

aperture cleaning, evaporation, experimentation

Prod # Description Unit Price Order / Quote
86 Molybdenum Foil, 0.002" thick (0.05mm), 6 x 6" (15.2 x 15.2cm) pkg/1 $136.00
Qty:




vacuum evaporation viewing glass

Evaporation Viewing Glass

impact resistant, 2 x 4-1/4" (5 x 10.8cm)

Dark glass to safely view metal or carbon evaporation process through belljars or glass windows.

AWS shade No. 10

Prod # Description Unit Price Order / Quote
55 Evaporation Viewing Glass each $9.50
Qty:
