SEM Supplies & Accessories Overview

Specimen Mounts & Holders for the Hitachi
TM4000/TM3030/TM3000/TM1000
Tabletop SEM Brochure

Specimen Mounts & Holders
for the Hitachi TM4000, TM3030, TM3000,
& TM1000 Tabletop SEMs

A complete line of sample mounts and specimen holders made especially for the Hitachi TM4000/TM3030/TM3000/TM1000 Tabletop Scanning Electron Microscopes. The specimen mounts with the M4 threaded hole are directly compatible with the TM4000/TM3030/TM3000/TM1000 stage adapters and are available with diameters of 15, 25 and 32 mm. The large 32 mm sample mount allows for mounting a number of smaller samples or one large sample.

The wide choice of special specimen holders created for the Hitachi TM4000/TM3030/TM3000/TM1000 will allow for using a greater variety of specimens. Easy mounting of specimens will make the TM4000/TM3030/TM3000/TM1000 more productive and will give access to more applications. There are also adapters available to accommodate pin stub mounts and small cylinder mounts which are used in other Scanning Electron Microscopes. This will allow users of the TM4000/TM3030/TM3000/TM1000 to share specimen mounts used on other SEM platforms.



hitachi tm4000
Hitachi TM4000

Hitachi TM1000/TM3000/TM3030 Table Top SEM, Scanning Electron Microscope
Hitachi TM3030
32 x 6mm x M4 cylinder mount with 12 divisions

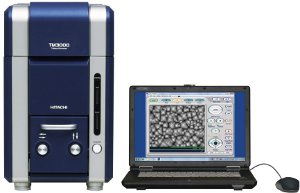

Hitachi TM3000
32 x 6mm x M4 cylinder mount with 12 divisions

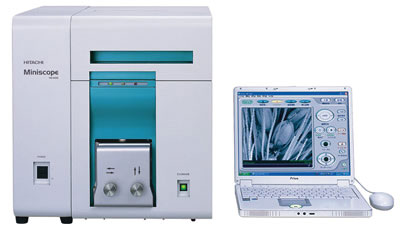

Hitachi TM1000

Hitachi TM3030/3000/1000 Starter Kit

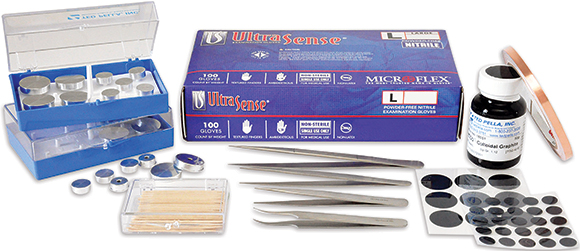

Hitachi TM Series Starter Kit
multi-calibration standard

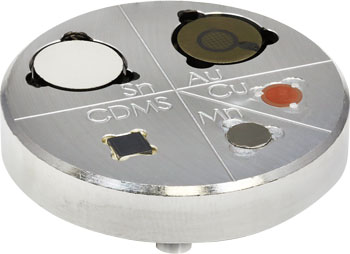

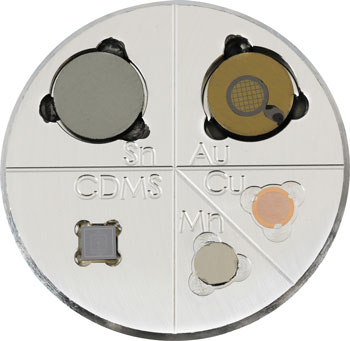

NEW Multi-Calibration Standard
108 manual kit
NEW 108 Manual Sputter
Coater Desktop SEM Kit

Essential SEM Consumables for Hitachi SEMs



Specimen Mounts for the Hitachi TM4000/TM3030/TM3000/TM1000 Tabletop SEM's

15mm Novelx mySEM Specimen Mount dimensions 15mm Novelx mySEM Specimen Mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16324 Specimen Mount, Ø15 x 6mm x M4 pkg/10 $13.00
Qty:
pkg/50 62.50
Qty:
pkg/100 120.00
Qty:
15mm Novelx mySEM Specimen Mount dimensions 15mm Novelx mySEM Specimen Mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16322 Specimen Mount, Ø15 x 10mm x M4 pkg/10 $19.50
Qty:
pkg/50 87.50
Qty:
pkg/100 160.00
Qty:
15mm Novelx mySEM Specimen Mount dimensions well mount M4well mount M4 bottom

Prod # Description Unit Price Order / Quote
16539-4 Mount 15 x 10mm, Well Depth 1.5mm, M4 pkg/10 $61.50
Qty:
sem specimen mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16327 Specimen Mount, Ø25 x 6mm x M4 pkg/10 $33.00
Qty:
pkg/50 157.50
Qty:
pkg/100 295.00
Qty:
M4 thread hitachi specimen mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16323 Specimen Mount, Ø25 x 10mm x M4 pkg/10 $23.50
Qty:
pkg/50 100.00
Qty:
M4 thread sem specimen mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16325 Specimen Mount, Ø32 x 6mm x M4 pkg/10 $32.50
Qty:
pkg/50 140.00
Qty:
32 x 10mm SEM Specimen Mount dimensions 32 x 10mm SEM Specimen Mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16326 Specimen Mount, Ø32 x 10mm x M4 pkg/10 $34.50
Qty:
pkg/50 157.50
Qty:

Hitachi, Angled Mounts

Specimen Mount, 45°

Prod # Description Unit Qty Price Order / Quote
45°, Aluminum
16330 45° Specimen Mount, Ø15 x 10mm x M4 each 1-9 $5.80
Qty:
10+ 5.55
EBSD Specimen Mount, 90° EBSD Specimen Mount, 90° EBSD Specimen Mount, 90°

Prod # Description Unit Qty Price Order / Quote
45°/90°, Aluminum
16334 45°/90° Specimen Mount, Ø15 x 11mm x M4 each 1-9 $7.95
Qty:
10+ 7.35
Specimen Mount, double 45° Specimen Mount, double 45°

Prod # Description Unit Qty Price Order / Quote
Double 45°, Aluminum
16331 Double 45° Specimen Mount, Ø25 x 4mm x M4 each 1-9 $8.75
Qty:
10+ 8.15
Specimen Mount, Double 90° Specimen Mount, Double 90°

Prod # Description Unit Price Order / Quote
Double 90°, Aluminum
16356 Double 90° Specimen Mount, Ø25 x 16mm x M4 each $8.25
Qty:




Mounts with Engraved and Numbered Divisions

Made in USA
15 x 6mm x M4 cylinder mount with 3 divisions

Prod # Description Unit Qty Price Order / Quote
16361 Ø15 x 6mm x M4 cylinder mount with 3 divisions each 1-9 $6.40
Qty:
10+ 5.85
25 x 6mm x M4 cylinder mount with 9 divisions

Prod # Description Unit Qty Price Order / Quote
16365 Ø25 x 6mm x M4 cylinder mount with 9 divisions each 1-9 $7.45
Qty:
10+ 6.90
32 x 6mm x M4 cylinder mount with 12 divisions

Prod # Description Unit Qty Price Order / Quote
16368 Ø32 x 6mm x M4 cylinder mount with 12 divisions each 1-9 $9.00
Qty:
10+ 8.35




Specimen Mounts with 22° / 25° Angle for TM1000/TM3000 Equipped with an EDS analysis system

The 22° / 25° tilt provides better detection and higher signal to noise ratio for x-ray analysis.
The 22° tilt is designed for the TM1000 equipped with an EDS Analysis System.
The 25º tilt is designed for the TM3000 equipped with an EDS Analysis System.
Angled mounts have an orientation cross which allows for precise positioning towards the EDS detector.
Made in USA

16380-25
Hitachi SEM specimen mount

Prod # Description Unit Qty Price Order / Quote
Specimen mounts with 25° Angle for TM3000 Equipped with an EDS Analysis System
16380-25 Ø15mm, 25° angle, M4, aluminum for TM-3000 each 1-9 $8.65
Qty:
10+ 6.70
Hitachi SEM specimen mount
16381

16381-25
Hitachi SEM specimen mount

Prod # Description Unit Qty Price Order / Quote
Specimen mounts with 22° Angle for TM1000 Equipped with an EDS Analysis System
16381 Ø20mm, 22° angle, M4, aluminum for TM-1000 each 1-9 $41.80
Qty:
10+ 37.60
Specimen mounts with 25° Angle for TM3000 Equipped with an EDS Analysis System
16381-25 Ø20mm, 25° angle, M4, aluminum for TM-3000 each 1-9 9.65
Qty:
10+ 7.90
Hitachi SEM specimen mount
16382

16382-25
Hitachi SEM specimen mount

Prod # Description Unit Qty Price Order / Quote
Specimen mounts with 22° Angle for TM1000 Equipped with an EDS Analysis System
16382 Ø25mm, 22° angle, M4, aluminum for TM-1000 each 1-9 $11.50
Qty:
10+ 8.60
Specimen mounts with 25° Angle for TM3000 Equipped with an EDS Analysis System
16382-25 Ø25mm, 25° angle, M4, aluminum for TM-3000 each 1-9 11.50
Qty:
10+ 8.60




Specimen Holders for the Hitachi TM4000/TM3030/TM3000/TM1000 Tabletop SEM's

Micro Vise Holder

Micro Vise Holder

Holds a variety of specimens. The maximum gap is 11mm (7/16"). The jaws are 25.4mm (1") wide. Made of aluminum with stainless steel screw. Allen wrench included.

Screws used are 6-32 x 3/4 vented socket cap head screw, stainless steel and 6-32 x 5/16 flat head screw, stainless steel.

Prod # Description Unit Price Order / Quote
15340-4 Micro Vise Holder, M4 each $126.50
Qty:

Small Springloaded Vise Clamp
closed position with pushrod in place

Small Springloaded Vise Clamp
holding specimen in place with pushrod removed

Small Springloaded Vise Clamp

Small Springloaded vise clamp for samples up to 12.7mm (1/2"). The jaws are 25mm (1") wide. Jaws also accommodate 1/16" x 1/2" stainless steel pins for more awkward shaped samples. 4 pins are included. Removable pushrod for easy loading is provided. Material: machined aluminum with stainless steel pins and springs. Overall size w/o pushrod 30 x 25 x 12.5mm (1.18" x 1" x ½").

Technical Notes, Small Springloaded Vise Clamp (276KB PDF)

Screw used is 2-56 x 1/8 cup point set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15341-4 Small Springloaded Vise Clamp, M4 each $211.75
Qty:
15341-20 Replacement Pins for Vise Clamp, 1/2" long pkg/10 35.75
Qty:

Bulk Specimen Holder, with specimen
shown holding specimen and shorter screws
with allen wrench
Bulk Specimen Holder, bottom
bottom

Round Bulk Specimen Holder

The bulk specimen holder holds irregular and round specimens up to a diameter of 32mm (1-1/4"). Made of aluminum with two sets of stainless steel allen screws. Allen wrench included. Holder size is Ø40 x 13mm H.

Screws used are M3 x 10mm set screw, stainless steel and M3 x 20mm set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15308-4 Bulk Specimen Holder, M4 each $93.50
Qty:

Straight Bulk Specimen Holder
holding specimen and bottom

Straight Bulk Specimen Holder

Versatile specimen holder to clamp irregular or long shaped specimens. Opening is 15.9W x 25.4L x 9.5mm D (5/8" x 1" x 3/8"). Made of aluminum with stainless steel allen screws. Allen wrench included.

Screw used is 6-32 x 1/2 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15320-4 Straight Bulk Specimen Holder, M4 each $90.20
Qty:

Large Bulk Specimen Holder

Large Bulk Specimen Holder

Opening is 32mm (1 1/4") wide x 32mm (1 1/4") long x 13mm (1/2") deep. Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/2 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15321-4 PELCO® Large Bulk Specimen Holder, M4 each $105.60
Qty:


Made in USA
Multi Purpose Specimen Holder
holding specimen and bottom

Multipurpose Specimen Holder

Accepts up to 25.4mm (1") diameter specimens. The slotted design also allows for clamping elongated or rod shaped specimens. Made of aluminum with stainless steel allen screw. Allen wrench included. Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397).

Screw used is 6-32 x 1/2 hex, set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15305-4 Multipurpose Specimen Holder, M4 each $68.20
Qty:

Made in USA
Cross Section Holder
shown with specimen held in place

Cross Section Holder

This specimen holder holds thin or flat samples up 6.35mm (1/4"). Adjustable angle from 0-180°.
Made of non-magnetic stainless steel.

Overall height is 30mm (1.2") from the pivot point. The clamping part is a 16mm (0.62") cube without thumb screws.

Screw used is 4-40 x 1/2 thumb screw.

Prod # Description Unit Price Order / Quote
15325-4 Cross Section Holder, M4 each $99.00
Qty:

Compact Variable Tilt SEM Mount

Compact Variable Tilt Mount

This Compact Variable Tilt Specimen Mount allows for easy mounting and tilting small samples from 0° - 90° and SEM investigation with small working distances. Markings for 30°, 45°, 70° and 90°.  Table size is 11 x 14mm (0.46" x 0.55"). Overall size is 14 x 14.3 x 14.5mm (0.55" x 0.56" x 0.57"). Made of aluminum with stainless steel screw. Allen wrench included.

Screw used is M2 x 12mm, socket cap head screw, stainless steel.

Prod # Description Unit Price Order / Quote
15439 Compact Variable Tilt Mount, M4 each $64.35
Qty:

Variable Tilt Specimen Holder

Variable Tilt Specimen Holder for Pin Mounts

Accommodates specimens pin stubs up to 18mm (.7") diameter or with a size up to 26 x 20mm. Tilts 0 - 90° with 10° markings. Additional markings for 30°, 45°, and 70°. Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H. Made of aluminum with stainless steel screws. Allen wrench included.

Screws used are M2 x 6mm, socket cap head screw, stainless steel and M2 x 3mm, set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15450-4 Variable Tilt Specimen Holder, M4 each $324.50
Qty:

Variable Tilt Specimen Holder

Variable Tilt Specimen Holder for Hitachi M4 Mounts

Accommodates Hitachi 15mm cylinder mount with M4 thread. Tilts 0 - 90° with 10° markings. Additional markings for 30°, 45°, and 70°. Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H. Made of aluminum with stainless steel screws. Allen wrench included.

Screws used are M2 x 6mm, socket head cap screw, stainless steel and M2 x 3mm, set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15451-4 Variable Tilt Specimen Holder for Hitachi M4 mounts, M4 each $313.50
Qty:

tilt mount front tilt mount back view
front back

Tilt Mount

This tilt specimen mount allows for easy mounting and tilting of small samples from 0° to 70°. It has index angle markings, with maximum 70° stop for EBSD. Specimen platform is 12.7mm (0.50" in diameter). Overall height is 12.7mm (0.50"). Made of aluminum with stainless steel screw. Allen wrench included.

Screw used is 4-40 x 5/16 socket cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15452-4 Tilt Mount, M4 each $68.20
Qty:

45° Pre-Tilt Holder for Hitachi Mounts and Pin Stubs

45° Pre-Tilt Holder for Hitachi Mounts and Pin Stubs

Accepts 15mm Hitachi mounts on pin with M4 thread. Pin can be rotated and fixed for optimum position. When the pin with M4 thread is removed, this holder also accepts a standard 12.7mm (1/2") pin stub with 3.2mm (1/8") pin. 45° gives higher SE signal w/o tilting the specimen stage. Material: machined aluminum with stainless steel Allen set screw. Allen wrench included.

Screw used is M3 x 3mm set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15428-45 45° Pre-Tilt Holder, M4 each $52.25
Qty:

Hitachi SEM Adjustable Profile Holder Hitachi SEM Adjustable Profile Holder with specimen
Hitachi SEM Adjustable Profile Holder, bottomBottom View

Adjustable Profile Holder

Designed to adjust the exact angle for cross sections made from wafers. Maximum specimen thickness 3.2mm (1/8"). Material: machined aluminum with brass and stainless steel Allen set screw. Allen wrench included.

Screws used are 4-40 x 1/2 socket head cap screw, stainless steel and 10-32 x 3/16 set screw, brass.

Prod # Description Unit Price Order / Quote
15356-4 Hitachi Adjustable Profile Holder, M4 each $132.00
Qty:
45°/90° Combination Holder, holding specimen 45°/90° Combination Holder, holding specimen
shown holding silicon chip and pin stub
45°/90° Combination Holder, bottom
bottom

45°/90° Combination Holder

Combined specimen holder for 90° cross sections of wafers or thin samples up to 6.35mm (1/4") and a pin stub at 45°. Made of aluminum with stainless steel set screws. Allen wrench included.

Screws used are 6-32 x 1/4 set screw, 316 stainless steel and 6-32 x 3/8 set screw, 316 stainless steel.

Prod # Description Unit Price Order / Quote
15358-4 45° / 90° Combination Holder, M4 each $103.40
Qty:

Specimen holder for cylinders up to 22mm

Cylinder Holder, 22mm (7/8")

Specimen holder for cylinders up to 22mm (7/8") diameter. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screw used is M3 x 6mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15402 Specimen Holder for Cylinders up to 22mm (7/8"), M4 each $42.90
Qty:


Metallographic Mount Holder, 1"or 25mm Metallographic Mount Holder, 1"or 25mm, with specimen

Metallographic Mount Holder, 1" or 25mm

Specimen holder for 1" or 25mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screw used is M3 x 6mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15403 Metallographic Mount Holder, 1" or 25mm, M4 each $50.60
Qty:

Metallographic Mount Holder, 1-1/4"or 32mm Metallographic Mount Holder, 1-1/4"or 32mm, with specimen

Metallographic Mount Holder, 1-1/4" or 30-32mm

Specimen holder for 1-1/4" or 30-32mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw. stainless steel.

Prod # Description Unit Price Order / Quote
15404 Metallographic Mount Holder, 1-1/4" or 30-32mm, M4 each $63.80
Qty:

Metallographic Mount Holder, 1-1/2"or 38mmMetallographic Mount Holder, 1-1/2"or 38mm, with specimen

Metallographic Mount Holder, 1-1/2" or 38-40mm

Specimen holder for 1-1/2" or 38-40mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15405 Metallographic Mount Holder, 1-1/2" or 38-40mm, M4 each $74.80
Qty:

Metallographic Mount Holder, 2"or 51mm

Metallographic Mount Holder, 2" or 50mm

Specimen holder for 2" or 50mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15406 Metallographic Mount Holder, 2" or 50mm, M4 each $81.40
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1" and 25mm

Specimen holder for 1" and 25mm metallographic mounts and other cylindrical 1” diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a UHV-EL Reference Standard for EDS/WDS (not included).

Prod # Description Unit Price Order / Quote
15603 Low Profile Metallurgical Mount Holder, 1" and 25mm diameter, M4 each $50.60
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1-1/4" and 30mm

Specimen holder for 1-1/4" and 30mm metallographic mounts and other cylindrical 1-1/4" diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included.

Prod # Description Unit Price Order / Quote
15604 Low Profile Metallographic Mount Holder, 1-1/4" and 30mm diameter, M4 each $61.60
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1-1/2" and 40mm

Specimen holder for 1-1/2" and 40mm metallographic mounts and other cylindrical 1-1/2" diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a specimen (not included).

Prod # Description Unit Price Order / Quote
15605 Low Profile Metallographic Mount Holder, 1-1/2" and 40mm diameter, M4 each $72.60
Qty:

15481-4 15481-4 with sample

Top Referencing Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter

Spring-loaded specimen holder for single metallographic mounts 1" to 1.5" in diameter. Two different heights allow for samples up to 0.5" (12.7mm) or 0.5-1.125" (12.7-28.6mm). Shown with, and without, an example of a mounted sample. The sample is pressed to the cap by the spring, ensuring the polished face of the specimen is flat across the mount. The removeable insert is used for 1" samples and is removed for larger samples. Ideal for wide area imaging, and stitching images with minimal focus change between stage moves. M4 thread for Hitachi stage mount. Fixture dimensions are 2.2" (56mm) in diameter,  and 0.975" (24.8mm) tall with standard caps and 1.475" (37.5mm) tall with the 15481-4 caps.

Prod # Description Unit Price Order / Quote
15481-4 Top Referencing Holder for Single Met Mount, M4 each $383.90
Qty:
15481-41 NEW Top Referencing Holder for Single Met Mount, M4, 0.5-1.125" (28.6mm) sample height each 398.90
Qty:
15480 15480-1
#15480 #15480-1

NEW Replacement Caps Metallographic Mount Holder, 1" to 1.5" (25 to 32mm) diameter

Replacement caps are available to freely swap between maximum sample height 0.5" and 0.5-1.125" variations using the same Top Referencing Metallographic Mount Holder base. Cap diameter is 2.2" (56mm) overall.

Prod # Description Unit Price Order / Quote
15480 Cap for Top Referencing Holder, max 0.5" (13mm) sample height each $60.00
Qty:
15480-1 Cap for Top Referencing Holder, 0.5-1.125" (30mm) sample height each 75.00
Qty:
Thin Specimen Split Mount Holder Thin Specimen Split Mount Holder with specimen
shown with silicon chip on right
Thin Specimen Split Mount Holder bottom
bottom

Thin Specimen Split Mount Holder

Simple but effective design to hold wafers and thin samples up to 3.2mm (1/8"). 15mm dia x 10mm H. Made of aluminum with stainless steel allen screws. Allen wrench included.

Screw used is 2-56 x 1/4 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15335-4 Thin Specimen Split Mount Holder, M4 each $26.40
Qty:

tube needle clamp holder

Tube/Needle Clamp

A small tube, needle or wire clamp based on a standard Ø15x10mm cylinder mount with M4 thread. Ideal for examining wire cross sections or needle tips. Holds wires, tubes and needles up to Ø2mm (0.008"); hole is 5mm (0.20") deep. Material: vacuum grade aluminum with a stainless steel set screw. Allen wrench included.

Screw used is 2-56 x 1/8 cup point set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15490 Tube/Needle Clamp, Ø15 x 10mm, M4 each $25.85
Qty:

Hitachi Set Screw Vise
Top and Bottom

Small Set Screw Vise

Small set screw vise with an open slot of 4mm (0.157") wide and 5mm (0.197") deep. Ø15 x 12mm x M4. Material: machined aluminum with stainless steel allen set screw. Allen wrench included.

Screw used is M3 x 6mm set screw, stainless steel.

Made in USA
Prod # Description Unit Price Order / Quote
16335 Small Set Screw Vise, M4, Ø15 x 12mm H, M4 each $24.15
Qty:

Large Set Screw Vise sem specimen holder

Large Set Screw Vise

Set screw vise with an open slot of 10mm (.394") wide x 5mm (0.197") deep. ø25mm (1") x 10mm (0.394") high. Material: machined aluminum with stainless steel set screw. Allen wrench included.

Screws used are M3 x 6mm, flat head set screw, stainless steel and M3 x 8mm, flat head set screw, stainless steel.

Prod # Description Unit Price Order / Quote
16371 Large Set Screw Vise, Ø25x10mm H, M4 each $43.90
Qty:

Double Slotted Mini Vise SEM Cylinder Mount
Top and Bottom

Double Slotted Mini Vise

Double slotted set screw vise with 2 ea. 1mm wide x 3mm deep slots to clamp thin specimens or cross sections. Simple but effective design to hold wafers and thin samples up to 1mm (.039") thick. 15mm dia x 6mm H. Made of aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M2 x 3mm, Set, Stainless Steel

Prod # Description Unit Price Order / Quote
16341 Double Slotted Set Screw Vise, M4, Ø15 x 6mm H each $23.55
Qty:

Large Double Slotted Vise

Large Double Slotted Vise

Large Double Slotted Set Screw Vise with 2 ea. 2.5mm by 5mm deep slots. Dimensions ø25x10 mm (1 x 0.4"). Clamp thin specimens and cross sections without the need for tape of conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M3 x 6mm, flat head set screw, stainless steel.

Prod # Description Unit Price Order / Quote
16372 Large Double Slotted Set Screw Vise, Ø25mm x 10mm H, M4 each $32.80
Qty:

16312 Slotted Vise

Large Double Slotted Vise

Ø32mm Large double slotted set screw vise with 2 ea. 2.5mm wide by 5mm deep slots. Dimensions Ø32 x 10mm (1-1/4" x 0.394"). Clamp thin specimens and cross sections without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M3 x 8mm, flat head set screw, stainless steel.

Made in USA
Prod # Description Unit Price Order / Quote
16312 Large Double Slotted Set Screw Vise, Ø32 x 10mm, M4 each $48.95
Qty:

Specimen Holder Adapters for the Hitachi TM4000/TM3030/TM3000/TM1000 Tabletop SEM's

Hitachi SEM Single Pin Stub Holder
Hitachi SEM Single Pin Stub Holder with Pin StubHitachi SEM Single Pin Stub Holder, bottom

Single Pin Stub Holder

Pin stub mount adapters to M4 thread, 15x10mm H, 15x15mm H and 16x25mm H. Enables the use of the common pin stub mounts for FEI/Philips, ZEISS/LEO, Leica, Cambridge Instruments, Amray, CamScan and Tescan SEMs in the Hitachi TM4000/TM3030/TM3000/TM1000. Material: machined aluminum with stainless steel Allen set screw. Allen wrench included.

Screw used is 6-32 x 1/8 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15363-1 Hitachi Single Pin Stub Holder Ø15 x 10mm H, M4 each $27.50
Qty:
15363-2 Hitachi Single Pin Stub Holder Ø15 x 15mm H, M4 each 24.75
Qty:
15387-2 Hitachi Single Pin Stub Holder Ø16 x 25mm H, M4 each 30.25
Qty:

JEOL or ISI/ABT/Topcon mounts to Hitachi M4

JEOL or ISI/ABT/Topcon mounts to Hitachi M4 mount

Small cylinder mount adapter accommodates JEOL or ISI/ABT/Topcon cylinder mounts up to 15mm diameter. Enables the use of Ø9.5 and Ø12.2mm JEOL or Ø15mm ISI/ABT/Topcon cylinder mounts on Hitachi M4. Made from aluminum with stainless steel screw, Allen wrench included.

Screws used are M3 x 6mm, socket head cap screw, stainless steel and M3 x 10mm, socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15401 Adapter Holder for Cylinder Mounts, M4 each $39.60
Qty:

Multi Holder for 4 Pin Stubs

Multi Holder for 4 Pin Stubs

Accommodates up to four standard 12.7mm (1/2") pin stubs with 3.2mm (1/8) pin. Made of aluminum with stainless steel set screws. Allen wrench included.

Holder size is Ø31.8 x 11.25mm.

Screw used is 6-32 x 1/8 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15310-4 Multi Holder for 4 Pin Stubs, M4 each $53.90
Qty:

16142-25
4 Pin Holder, 25mm Diameter
(#16142-25)

16142-25
6 Pin Holder, 32mm Diameter
(#16142-32)

16142-25P
Ø9.6mm Small Pin Stub
(#16142)

Multi Holders for Smaller Diameter Pin Stubs

The 25mm diameter holder (#16142-25) can accommodate up to four Small Diameter Pin Stubs, and the larger 32mm diameter (#16142-32) holder can accommodate up to six. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Shown with and without Small Pins Stubs (Product #16142 Special Small Head Ø9.6mm, pin 8mm length x 3.2mm diameter), which are sold separately.

#16142-25P Dimensions are Ø25 x 10mm (0.98 x 0.39").
#16142-32P Dimensions are Ø32 x 10mm (1.26 x 0.39").

Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
16142-25 Multi Holder for 4 x Small Ø9.6mm Pin Stubs, M4 each $58.75
Qty:
16142-32 Multi Holder for 6 x Small Ø9.6mm Pin Stubs, M4 each 88.50
Qty:

Prod # Description Unit Price Order / Quote
16142 Special Small Pin Stub, aluminum, grooved edge pkg/50 $92.50
Qty:
Multi Holder for 5 JEOL Stubs
holding specimen mounts and bottom

Multi Holder for 5 JEOL Stubs

Holds up to five 9.5mm JEOL cylinder mounts. Made of aluminum with stainless steel set screws. Allen wrench included.

Size is Ø31.5 x 10mm and fits in standard 32mm mount holder

Screw used is 6-32 x 1/8, hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15315-4 Multi Specimen Holder for JEOL Stubs, M4 each $68.20
Qty:

SEM S-4 Mount Adapter

S-4 Mount Adapter, M4

The S-4 mount adapter allows the use of the S-4 specimen mounts (Cambridge Instruments, Leica, CamScan) on the Hitachi TM4000/TM3030/TM3000/TM1000 stage.

31mm diameter, 6mm height. Material: machined aluminum with stainless steel screw.

Note: Top Image shows S-4 mount left of the adapter, bottom: S-4 mount inserted into adapter.

Made in USA
Prod # Description Unit Price Order / Quote
15317 S-4 Mount Adapter, M4 each $42.90
Qty:


Mini SEMclamp specimen holder

PELCO Mini SEMClamp™ Ø15 x 10mm

Mini SEMclamp™ on a Ø15 x 10mm M4 cylinder mount. Convenient for holding flat or thin specimens such as Si chips, wires, foil and small tubes. Material: vacuum grade aluminum with brass screw.

Screw used is M2 x 3mm, pan head screw, brass.

Prod # Description Unit Price Order / Quote
15494 PELCO Mini SEMClamp™ Ø15 x 10mm, M4 each $23.75
Qty:
Small PELCO SEMClamp™ 15 x 10mm

PELCO SEMClamp™
shown holding a wire

Small PELCO SEMClamp™ 15 x 10mm

PELCO SEMClamp™ holder 15mm (0.6") long with 10mm (0.4") wide clamping area. Convenient holder for clamping down samples up to a thickness of 7mm under the clamping strips.

Overall dimensions 23 x 20 x 9mm (0.9" x 0.78" x 0.35"). Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan head screw, brass.

Prod # Description Unit Price Order / Quote
15347-4 Small PELCO SEMClamp™ 15 x 10mm, M4 each $94.60
Qty:

Medium PELCO SEMClamp™ 25 x 15mm

Medium PELCO SEMClamp™ 25 x 15mm

PELCO SEMClamp™ holder 25mm (1") long with 15mm (0.6") wide clamping area. Convenient holder for clamping down samples up to a thickness of 7mm under the clamping strips.

Overall dimensions 33 x 25 x 9mm (1.3" x 1" x 0.35"). Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan heads scew, brass.

Prod # Description Unit Price Order / Quote
15348-4 Medium PELCO SEMClamp™ 25 x 15mm, M4 each $104.50
Qty:



Recessed PELCO® SEMClamp™ 15 x 25mm

Recessed PELCO SEMClamp™ 25 x 15mm

5mm recess allows for background free imaging and no contact with sample surface in imaging area. Clamping area is 25mm (1") long and 15mm (0.6") wide. Maximum thickness 7mm under the clamping strips. Overall dimensions 33 x 25 x 11mm (1.3" x 1" x 0.43"). Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan head screw, brass.

Prod # Description Unit Price Order / Quote
15346-4 Recessed PELCO SEMClamp™ 25 x 15mm, M4 each $105.60
Qty:


PELCO SEMClip™ Cylinder Mounts for the Hitachi TM4000/TM3030/TM3000/TM1000 Tabletop SEM's

Made in USA
PELCO SEMClip™ Ø15mm Cylinder Mount, M4

18mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one clip for Hitachi SEMs PELCO SEMClip™ 18mmxM4 SEMClip back view back view

Prod # Description Unit Price Order / Quote
16324-10 PELCO SEMClip™, Ø15 x 6mm x M4 Cylinder Mount, 1 clip each $20.75
Qty:


Made in USA
PELCO SEMClip™ Ø25mm Cylinder Mount, M4

25mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips for Hitachi 25mmxM4 PELCO SEMClip™ back viewback view

Prod # Description Unit Price Order / Quote
16327-10 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 1 clip each $21.75
Qty:
16327-20 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 2 clips each 31.65
Qty:
16327-30 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 3 clips each 41.25
Qty:


Made in USA
PELCO SEMClip™ Ø32mm Cylinder Mount, M4

32mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips for Hitachi 32mmxM4 PELCO SEMClip™ back view back view

Prod # Description Unit Price Order / Quote
16326-10 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 1 clip each $21.75
Qty:
16326-20 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 2 clips each 31.65
Qty:
16326-30 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 3 clips each 41.50
Qty:


Made in USA
PELCO SEMClip™ Ø25mm Cylinder Mount, M4, 2 x 90°

PELCO SEMClip™, 25x16mm x M4 Cylinder Mount, Double 90°, 2 clips

Prod # Description Unit Price Order / Quote
16356-20 PELCO SEMClip™, 25 x 16mm x M4 Cylinder Mount, Double 90°, 2 clips each $37.35
Qty:


Made in USA
PELCO SEMClip™ 12 x 12mm Mount, M4, 4 x 90°

PELCO SEMClip™, 12x12x14mm H, M4, 4 clips

Prod # Description Unit Price Order / Quote
16241 PELCO SEMClip™, 12 x 12 x 14mm H, M4, 4 clips each $62.15
Qty:


Made in USA
PELCO SEMClip™ 14 x 14mm Mount, M4, Variable Tilt 0-90°

PELCO SEMClip

Prod # Description Unit Price Order / Quote
15439-10 PELCO SEMClip™ on compact variable tilt mount 0-90°, table size 11 x 14mm, Overall size is 14 x 14.3 x 14.5mm, M4 each $81.95
Qty:


Made in USA
PELCO SEMClip™ Ø25mm Mount, M4, 90° and 45°

PELCO SEMClip™, 25x16mm x M4 Cylinder Mount, Double 45/90°, 2 clips

Prod # Description Unit Price Order / Quote
16357-20 PELCO SEMClip™, Ø25 x 16mm x M4 Cylinder Mount, 45/90°, 2 clips each $38.45
Qty:


Made in USA

PELCO SEMClip™ Replacement Clips and Screws

PELCO SEMClip™ Replacement Clips and Screws PELCO SEMClip™ Clips are made from a spring grade beryllium-copper alloy. Thickness of clip is 0.25mm (0.01"), overall length is 12.7mm (1/2"), width at tip is 1.6mm (1/16"), hole diameter is 2.2mm (0.087").

Prod # Description Unit Price Order / Quote
16399 PELCO SEMClip™ Clips pkg/10 $82.50
Qty:
16399-10 PELCO SEMClip™ Screws, Brass, M2 x 3mm length pkg/10 20.65
Qty:




601
Top-down view showing
labeled standards

601
Side view showing
removable pin

NEW Multi Calibration Standard for Desktop SEM Users

Combined standard for resolution, magnification calibration, and EDS performance monitoring. Standards have engraved labels and are mounted in plane for ease of use. The 25mm diameter by 5mm tall aluminum cylinder mount has a M4 threaded base that comes with a removable pin adapter (#15319) allowing the standard to be used on systems that utilize pin, cylinder, or M4 threaded mounts.

Multi Calibration Standard Includes

Two SEM Resolution Test Specimens:

CDMS-XY-1T
CDMS-XY-1T
tin spheres on carbon
Tin Spheres
on Carbon
gold on carbon
Gold on Carbon
Critical Dimension Magnification Standard: Elements to assist in monitoring the performance of EDS Systems:
  • PELCO® 400 Mesh Copper Grid to check spectral calibration
  • Manganese 88%, nickel 12% alloy to measure full width at half max (FWHM) detector resolution

Prod # Description Unit Price Order / Quote
601 Multi Calibration Standard for Desktop SEM users, M4 threaded base with removable pin each $655.00
Qty:





Hitachi TM3030/3000/1000 Starter Kit

Hitachi TM4000/TM3030/TM3000/TM1000 Starter Kit

The starter kit for the Hitachi TM4000/TM3030/TM3000/TM1000 tabletop microscope contains a selection of sample mounts and sample preparation materials to get started right away with the tool. The starter kit contains also essential tools and storage boxes for the samples. See kit contents and ordering information below.

Product No. Description Quantity
16324 Specimen Mounts Ø15x6mm, M4 pkg/10
16327 Specimen Mounts Ø25x6mm, M4 pkg/10
16084-1 Conductive Carbon Tabs, Ø12mm pkg/100
16084-2 Conductive Carbon Tabs, Ø25mm pkg/54
16791 Storage Box for Hitachi SEM Mounts 2 each
81852 Ultrasense™ Nitrile Gloves, size L box/100
16053 Conductive Carbon Paint/Cement, 30g each
11620 Wooden Picks box/100
16072 3M™ Copper Conductive Tape, 6.3mm W x 16.46m L each
58099-NM Set with 4 Tweezers in a Pouch 1 set

Full selection of Sample Mounts & Holders for Hitachi TM4000/TM3030/TM3000/TM1000
Essential SEM Consumables for Hitachi SEMs

Prod # Description Unit Price Order / Quote
76100-20 Hitachi TM4000/TM3030/TM3000/TM1000 Starter Kit each $174.40
Qty:



Other useful products for specimen preparation are:

Sample Mount & Specimen Holder Storage Box
Conductive Adhesives for mounting sample on sample mounts
Conductive Coating for non-conductive specimens
Essential SEM Consumables for Hitachi SEMs
