Wafer Carriers, polypropylene
1", 1.5", 2", 2-1/2", 3", 4", 5" and 6"

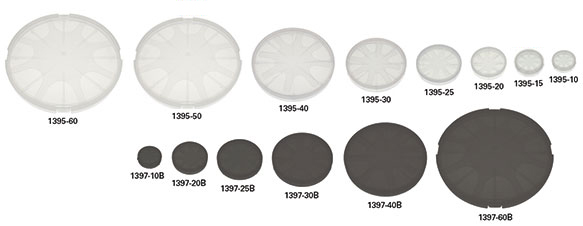

Wafer Carrier Trays

Natural or black conductive polypropylene material

These high quality wafer carrier trays are specifically designed for storage, transport and handling of semiconductor wafers, glass wafers or other delicate flat objects. Made from either natural or conductive black polypropylene material and available in sizes from 1" to 6" with maximum grip, minimum contact and minimum pressure. The wafer or disc carriers have a conical base to support the wafers at the edges only. The wafers are held in place and secured by a spider spring and locking cap.
Outside Dimensions
Product Number
Wafer Size
Outside Dimensions
1395-10, 1397-10B
1"   (25mm)
ø33 x 10mm
1395-15
1.5"   (38mm)
ø48 x 10mm
1395-20, 1397-20B
2"   (50mm)
ø60 x 11mm
1395-25, 1397-25B
2.5"   (63mm)
ø75 x 11mm
1395-30, 1397-30B
3"   (75mm)
ø84 x 11mm
1395-40, 1397-40B
4"   (100mm)
ø110 x 11mm
1395-50
5"   (130mm)
ø138 x 18mm
1395-60, 1397-60B
6"   (150mm)
ø160 x 18mm

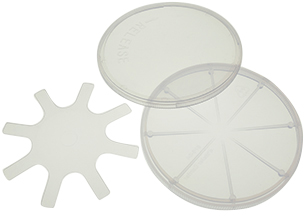

Wafer Carrier components include:

  • Base
  • Lid
  • Spider ring (pressure retention, edges or center)
Wafer Carrier Components

Prod # Description Unit Price Order / Quote
Round, Natural Polypropylene Wafer Carriers 1" to 6"
1395-10 Wafer Carrier Tray for 1" (25mm) Single Wafer, Natural Polypropylene pkg/10 $43.75
Qty:
1395-15 Wafer Carrier Tray for 1.5" (38mm) Single Wafer, Natural Polypropylene pkg/10 67.50
Qty:
1395-20 Wafer Carrier Tray for 2" (50mm) Single Wafer, Natural Polypropylene pkg/10 70.75
Qty:
1395-25 Wafer Carrier Tray for 2.5" (63mm) Single Wafer, Natural Polypropylene pkg/10 75.00
Qty:
1395-30 Wafer Carrier Tray for 3" (75mm) Single Wafer, Natural Polypropylene pkg/10 92.00
Qty:
1395-40 Wafer Carrier Tray for 4" (100mm) Single Wafer, Natural Polypropylene pkg/10 112.00
Qty:
1395-50 Wafer Carrier Tray for 5" (130mm) Single Wafer, Natural Polypropylene pkg/10 160.00
Qty:
1395-60 Wafer Carrier Tray for 6" (150mm) Single Wafer, Natural Polypropylene pkg/10 215.50
Qty:

Prod # Description Unit Price Order / Quote
Round, Conductive Black Polypropylene Wafer Carriers 1" to 6"
1397-10B Wafer Carrier Tray for 1" (25mm) Single Wafer, Conductive Black Polypropylene pkg/5 $43.00
Qty:
1397-20B Wafer Carrier Tray for 2" (50mm) Single Wafer, Conductive Black Polypropylene pkg/5 79.00
Qty:
1397-25B Wafer Carrier Tray for 2.5" (60mm) Single Wafer, Conductive Black Polypropylene pkg/5 106.00
Qty:
1397-30B Wafer Carrier Tray for 3" (75mm) Single Wafer, Conductive Black Polypropylene pkg/5 90.00
Qty:
1397-40B Wafer Carrier Tray for 4" (100mm) Single Wafer, Conductive Black Polypropylene pkg/5 110.00
Qty:
1397-60B Wafer Carrier Tray for 6" (150mm) Single Wafer, Conductive Black Polypropylene pkg/5 155.00
Qty:




clamshell wafer black clamshell wafer natural

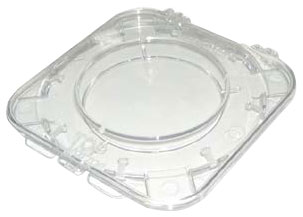

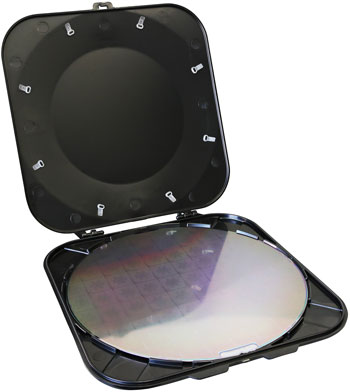

Clamshell Wafer Carriers

Polycarbonate for 6" and 8"

Clamshell type wafer carriers are available for 6" (150mm) and 8" (200mm) wafers in clear and conductive black polycarbonate. Internal height is 0.7mm for the 6" and 8" carriers.

Prod # Description Unit Price Order / Quote
1398-60 Clamshell Wafer Carrier, 6" (150mm), Clear Polycarbonate each $28.00
Qty:
1399-60B Clamshell Wafer Carrier, 6" (150mm), Conductive Black Polycarbonate each 46.00
Qty:
1398-80 Clamshell Wafer Carrier, 8" (200mm), Clear Polycarbonate each 52.00
Qty:
1399-80B Clamshell Wafer Carrier, 8" (200mm), Conductive Black Polycarbonate each 61.50
Qty:




Stacking Wafer Carriers

Stacking wafer carriers are available for 12" (300mm) wafers in clear and conductive black polycarbonate. Internal height is 0.8mm for the 12" carrier.

Prod # Description Unit Price Order / Quote
1398-120 Stacking Wafer Carrier, 12" (300mm), Clear Polycarbonate each $135.00
Qty:
1398-120B Stacking Wafer Carrier, 12" (300mm), Conductive Black Polycarbonate each 160.00
Qty:





NEW Wafer Carriers for Upright Storage

Polypropylene for 1", 2", 4", 6" and 8" wafers

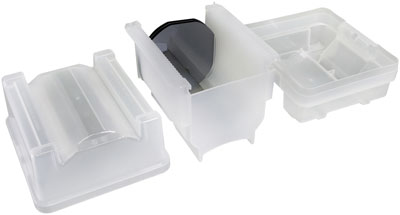

These wafer carriers hold up to 25 wafers each and are recommended for upright transport and shipping of whole wafers. They are comprised of a base, a wafer carrying tray and a lid (pieces shown below) and are available in 1" (25mm), 2" (50mm), 4" (100mm), 6" (150mm) and 8" (200mm) sizes. The lid has grooves to immobilize wafers during transport. Carriers will admit wafers up to 1mm in thickness.

1394-4
6" (150mm) Wafer Carrier
(#1394-6) 		4" (100mm) Wafer Carrier
(#1394-4) 		2" (50mm) Wafer Carrier
(#1394-2)

Prod # Description Unit Price Order / Quote
1394-1 Wafer Carrier, 1" (25mm), Translucent Polypropylene each $22.95
Qty:
1394-2 Wafer Carrier, 2" (50mm), Translucent Polypropylene each 25.00
Qty:
1394-4 Wafer Carrier, 4" (100mm), Translucent Polypropylene each 44.00
Qty:
1394-6 Wafer Carrier, 6" (150mm), Translucent Polypropylene each 55.00
Qty:
1394-8 Wafer Carrier, 8" (200mm), Translucent Polypropylene each 115.00
Qty:
