PELCO® Vacuum Desiccator Cabinets

A sturdy powder coated stainless steel constructed vacuum desiccator for storing electron microscopy samples, test samples, calibration standards, photographic film, forensic specimens, etc.



Vacuum Desiccator, powder coated stainless steel

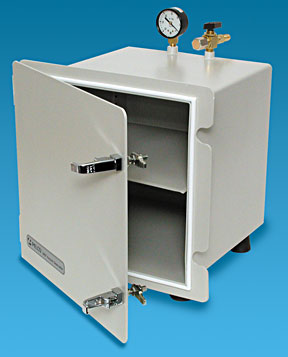

PELCO® Basic Vacuum Desiccator Cabinet

dry, dark, dust-free storage; maintain moisture-free conditions

This design offers:

  • Square corners to give more efficient storage space
  • Sturdy stainless steel materials
  • Effective vacuum sealing
  • Slow venting

Store photographic films, light or moisture sensitive materials, calibration standards and electron microscopy samples. Provided with vacuum gauge (inches of mercury, 0-30") and 3 way vacuum / vent valve. One adjustable and removable shelf included.

Outside dimensions (with valve and latch):
375mm W x 432mm H (with gauge) x 373mm D (14.75 W x 17 H x 14.7" D)

Inside dimensions:
298mm W x 298mm H x 302mm D (11.75 W x 11.75 H x 11.875" D)



Vacuum Desiccator, powder coated stainless steel

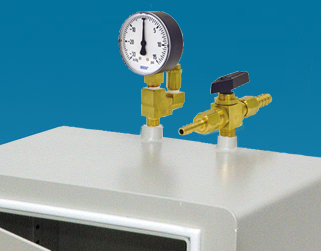

PELCO® N2 Purge Vacuum Desiccator Cabinet

The N2 Purge Desiccator Cabinet has the same specifications as above; but instead of purging the chamber with room air, it can be purged with N2.



vacuum Desiccator with NW/KF 25 connector
The PELCO® Basic and PELCO® N2 Purge Vacuum Desiccators are available with 3 vacuum connections:
  • 1/2" Hose Connection (standard) to connect vacuum systems with a 1/2" ID vacuum hose. A 3/8" Hose Connection is also included for 3/8" or 1/4" ID hose.
  • NW/KF 16 Connection, compatible with NW/KF 16 vacuum connection hardware
  • Shown at left: NW/KF 25 Connection, compatible with NW/KF 25 vacuum connection hardware


PELCO® Basic Vacuum Desiccator - Made in USA

Prod # Description Unit Price Order / Quote
2251 PELCO® Basic Vacuum Desiccator with 1/2" and 3/8" hose connector each $2195.00
Qty:
2251-16 PELCO® Basic Vacuum Desiccator with NW/KF 16 connector each 2295.00
Qty:
2251-25 PELCO® Basic Vacuum Desiccator with NW/KF 25 connector each 2295.00
Qty:
2251-10 Brushed, Stainless Steel Shelf for PELCO® Basic Vacuum Desiccator each 53.50
Qty:

PELCO® N2 Purge Vacuum Desiccator - Made in USA

Prod # Description Unit Price Order / Quote
2253 PELCO® N2 Purge Vacuum Desiccator with 1/2" and 3/8" hose connector each $2465.00
Qty:
2253-16 PELCO® N2 Purge Vacuum Desiccator with NW/KF 16 connector each 2595.00
Qty:
2253-25 PELCO® N2 Purge Vacuum Desiccator with NW/KF 25 connector each 2595.00
Qty:
2251-10 Brushed, Stainless Steel Shelf for PELCO® N2 Purge Vacuum Desiccator each 53.50
Qty:




Vacuum Pumping Kits for the PELCO® Vacuum Desiccator Cabinets:

Diaphragm Pump for the #2251 Vacuum Desiccator with hose connection
dry system with low pumping speed and moderate end-vacuum

VRI-2 Rotary Pump Kit 55 for the #2251 Vacuum Desicator with hose connection
good pumping speed and good end-vacuum

VRI-2 Rotary Pump Kit 51 with connection hardware for the #2251-16 Vacuum Desiccator with KF-16 connection
good pumping speed and good end-vacuum

VRI-2 Rotary Pump Kit 52 with connection hardware and foreline trap for the #2251-16 Vacuum Desiccator with KF-16 connection
good pumping speed, good end-vacuum and back-streaming protection

idp-3 dry scroll vacuum pump, oiless, varian
  Additional Oil-less Pumping Options for Vacuum Ovens


3436 Diaphragm Pump Kit for the #2251 Vacuum Desiccator

This dry pumping kit consists of the #3436 diaphragm pump with 3 feet of ¼” thick wall silicone hose. This is a cost efficient solution  suitable for moderate vacuum requirements. Achievable vacuum level is in the 200mbar range. For higher vacuum levels, a two stage rotary pump would be more suitable. Available in both 115V and 230V.

Prod # Description Unit Price Order / Quote
3436-51 Diaphragm Pump Kit for #2251 Vacuum Desiccator, 115V each $1146.55
Qty:
3436-51-230 Diaphragm Pump Kit for #2251 Vacuum Desiccator, 230V each 1336.55
Qty:




VRI-2 Rotary Pump Kit 55 for the #2251 Vacuum Desicator

This pumping kit consist of the VRI-2 pump with a KF16 hose adapter, ¼” thick wall silicone hose and rotary pump exhaust filter. The achievable vacuum is in the 10-2 mbar range. Very cost effective solution offering fast pumping speed and good end vacuum. Ideally used for intermittent pumping. Available both in 115V and 230V.

891-31, 891-34 SDS (93KB PDF)

Prod # Description Unit Price Order / Quote
92092-55 VRI-2 Pump Kit for Round Vacuum Desiccators, 115V each $595.00
Qty:
92092-55-230 VRI-2 Pump Kit for Round Vacuum Desiccators, 230V each 595.00
Qty:
891-31 PELCO® Ultra 19 Vacuum Pump Oil, 1 liter each 17.80
Qty:
9609 Exhaust Filter for VRI-2 Pump each 87.25
Qty:





VRI-2 Rotary Pump Kit 51 for the #2251-16 Vacuum Desiccator

This pumping kit consists of the VRI-2 pump with KF16 adapters, flexible stainless steel hose, connection hardware and  rotary pump exhaust filter. The achievable  vacuum level is in the 10-2 mbar range. Cost effective solution offering fast pumping speed and good end-vacuum. Suitable for intermittent pumping. For continuous pumping applications consider pumping kit 52.

891-31, 891-34 SDS (93KB PDF)

Prod # Description Unit Price Order / Quote
92092-51 VRI-2 Pump Kit 51 for #2251-16 Vacuum Desiccator, 115V each $695.00
Qty:
92092-51-230 VRI-2 Pump Kit 51 for #2251-16 Vacuum Desiccator, 230V each 695.00
Qty:
891-31 PELCO® Ultra 19 Vacuum Pump Oil, 1 liter each 17.80
Qty:
9609 Exhaust Filter for VRI-2 Pump each 87.25
Qty:





VRI-2 Rotary Pump Kit 52 for the #2251-16 Vacuum Desiccator, Including Foreline Trap

This pumping kit is the same as above with an additional foreline trap mounted between rotary pump and the vacuum desiccator. Includes all metal KF-16 hardware and exhaust filter. The foreline trap prevents backstreaming from the rotary pump to maintain an oil-free environment (provided the activated alumina for the foreline trap is exchanged at regular intervals). Best solution with good end vacuum. Suitable for continuous pumping applications.

891-31 SDS (93KB PDF)

Prod # Description Unit Price Order / Quote
92092-52 VRI-2 Pump Kit 52 with Foreline Trap for #2251-16 Vacuum Desiccator, 115V each $1115.00
Qty:
92092-52-230 VRI-2 Pump Kit 52 with Foreline Trap for #2251-16 Vacuum Desiccator, 230V each 1115.00
Qty:
891-31 PELCO® Ultra 19 Vacuum Pump Oil, 1 liter each 17.80
Qty:
9609 Exhaust Filter for VRI-2 Pump each 87.25
Qty:
92090-50 PELCO® Activated Alumina Sorbent, 450ml each 19.50
Qty:
