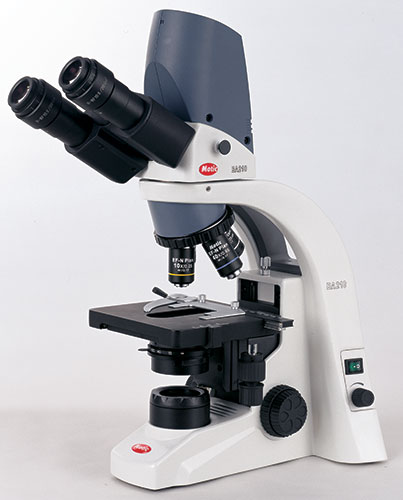

The Digital BA210 has all the specifications of the BA210 with trinocular head plus a built-in
high resolution digital CMOS camera. The digital microscope provides one package,
easy to set up and operate. The 3.0 Mega Pixel CMOS camera is ideal for recording, storing
and sharing high quality digital images. See all options available on the
BA210 Microscope Systems Diagram . (CMOS and photo adapters
are not available for the Digital BA210 due to the integrated camera).
The Motic® BA210 provides high resolution and excellent optical performance for all microscopy needs.
The BA210 is designed for both educational and teaching environments from basic life sciences to
medical biological applications. The BA210's standard configuration along with the newly formulated
Motic® Infinity Optics (CCIS®), best meets the needs of the College, University, and Medical school
markets. The BA210 delivers a high level of performance in education and training.
 |
Siedentopf Observation tube
The BA210's sidentopf observation tube is designed with an ergonomic viewing angle of 30° and incorporating an interpupillary distance of 55-75mm. The BA210 observation tubes guarantee fatigue-free viewing for hours. An optional large field of view (20mm) enables fast and comfortable screening of a specimen.
|
 |
Eyepieces
The standard eyepieces are made of high quality optical glass and have a high eye point for eyeglass wearers. The eyepieces provide consistent diopter adjustments for both eyes. This enables perfect usage of reticles for measuring, counting, etc. Standard lockable eyepieces guard against inadmissible removal.
|
 |
Reversed Quadruple Turret Revolving Nosepiece
The BA210 has the capability for mounting up to four quality objectives, allowing easy access to the
slide. Precision positive click-stop mechanism ensures precise alignment of objectives.
Objectives
To improve overall optical performance of the BA210, Motic® introduces a newly designed generation of
Plan Achromatic Objectives made of high quality optical glass: CCIS® EF-N Plan. These new lenses are
now multilayer coated for improved contrast to enhance images even with weak slide staining. Together
with a newly calculated tube lens, the result is a fully coated, perfected intermediate image without
colored fringes. RMS thread.
|
Fine/Coarse Coaxial Focusing
Fine and coarse coaxial focusing mechanism is precision brass manufactured using a reliable triangular rail system, with adjustable tension, providing durable operation of the microscope. The focusing range is 25mm with min. increments of 2µm.
 |
Condenser
To ensure the perfect height adjustment of the condenser, a condenser lock is available. While using
phase/darkfield sliders, the teacher can pre-set the condenser position to prevent potential student
mis-adjustments.
|
Illumination
The BA210 introduces a new collector lens assembly with a secure, threaded holder for the frequently used blue daylight
filter, which is an integral part of the illumination package. The fixed cap prevents the filter from dropping and breaking
when the instrument is moved or stored.
 |
Mechanical Stage
The BA210 offers an optional left/right hand control and the slide holder enables consistent
sample movement across a 76x30mm range. The BA210 also offers a hard coated surface, resistant
against routine usage abrasion and most lab chemicals.
|
Light source with integrated power supply
The universal power supply (110-240V) is integrated inside the frame for increased
stability. The 6V/30W halogen lamp with intensity controls provides bright and even
illumination at any magnification.
Anti-Fungus Coating
To protect the system from fungus formation in high-humidity environments, an anti-fungus coating is used to prolong the
life of both microscope and objectives.
 |
Simple Phase Contrast
Offered as an option, simple phase contrast is available for magnification 10x and 40x.
|
 |
Simple Darkfield
Darkfield is possible with a separate DF slider.
|
 |
Simple Polarization
Convenient and simple, the BA210 polarization system consists of an analyzer filter
placed between the head and body; and a polarizer filter placed on top of the
collector lens.
|
Documentation
The importance of documentation has expanded into every aspect of microscopy, as has the method of documentation.
3.0 Mega Pixel digital CMOS camera
The 3.0 Mega Pixel digital 1/2" CMOS camera has an image resolution of 2048
x 1536 pixels, fast 480MB/sec data transfer over USB 2.0 port and comes complete
with Motic® Image Plus 2.0 software
|
Digital BA210 Technical Specifications
|
|
Optical System
|
Parfocal distance 45mm CCIS® Optical System (Color Corrected Infinity System) |
|
Observation tube
|
Siedentopf 30° Binocular. Optional Trinocular with 100% binocular or 100% photo.
|
|
Eyepiece
|
Widefield high eyepoint WF 10x (FN20)
|
|
Nosepiece
|
Quadruple reversed
|
Coarse/Fine
focusing
|
Coaxially positioned control knobs, coarse 42mm/rotation, fine 0.2mm/rotation. Min. increment 2µm.
Coarse motion torque adjustable. Brass gears.
|
|
Stage
|
Rectangular 140 x 135mm surface area, 76 x 30mm cross travel. Hard coated surface,
vertical movement range is 25mm.
|
|
Substage Illumination
|
6V/30W Quartz Halogen lamplamp / Attachable mirror set
|
| Power Requirements |
Universal; 110-240V; 50/60Hz |
|
Filter
|
Blue
|
|
CMOS Camera
|
1/2" CMOS, 2048 x 1536 pixel resolution.
|

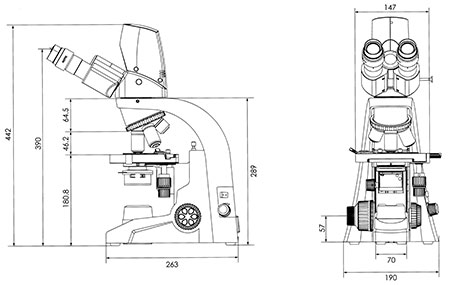

BA210 Dimensions (unit: mm)
Key Improvements on BA210
- The WF10x/20x eyepieces are non-compensated, removing the yellow fringe.
- A Siedentopf Head with chromatic compensated tube lens, therefore the image at the trinocular port is also compensated.
- A new lead free and multi-layer coating EF-N Plan objectives with a new sleeve.
- New capabilities for stage movement either with the right or left hand.
- A new stage with a new slide holder. The slide holder for the BA210 has a wider slide holder fixing screw distance to
fix the holder firmer. There is also a smoother surface paint and finish.
- Now comes with a condenser position lock for fixed-Koehler illumination for optimal light intensity.
- A new stage and condenser support assembly to increase the movement range for the condenser.
The upper position of the condenser can be adjusted to within 1mm from the specimen to avoid formation
of the ground glass image on the image plane. It also prevents the left hand control knob from getting
too close to the condenser focusing knob and interfering with its operation.
- A new collector with a filter lock. The blue filter can be fixed onto the collector lens by a screw cap
to protect the filter from being removed or dropped and broken during system movement.
- A new lamp module for increased light intensity and improved heat dispersion.
- Has new rubber feet with softer material to reduce vibration from the work environment.
- A new white body color giving a better impression as professional laboratory equipment with model name and a new logo.
- A new ISO adapter with a 38mm diameter.
- Many accessories are compatible with the new BA210 including 2.5x and 4x photoeyepieces, a 1.25N.A.
abbe condenser, phases sliders, darkfield sliders, polarizer and analyzer, and a reflector mirror.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| Complete System for the Digital BA210
|
| 22455-200
| BA210 Digital, N-WF10x/20 Eyepieces, EF-N Plan Achromat Objectives 4x, 10x, 40x S, 100x S-Oil, focusable 1.25 NA, Abbe Condenser, 3W Bright LED Illumination with intensity control. Live Hi-Res 3.0 megapixel imaging chip (2048x1536), USB 2.0 connection and Motic® Image PLUS software for PC or Mac
| each
| $2383.00
|
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| Accessories and Options for the Digital BA210
|
| Eyepieces (each)
|
| 22455-312
| N-WF12.5x/16mm, focusable with diopter adjustment
| each
| $211.00
|
|
| 22455-313
| N-WF15x/14.5mm, focusable with diopter adjustment
| each
| 141.00
|
|
| Reticles (each)
|
| 22455-301
| Cross Line, ø25mm
| each
| 61.00
|
|
| 22455-302
| Cross Line w Micrometer (100 div. in 10mm), ø25mm
| each
| 61.00
|
|
| 22455-303
| Micrometer (100 div. in 10mm), ø25mm
| each
| 60.00
|
|
| 22455-305
| Eyepiece Pointer, ø25mm
| each
| 59.00
|
|
| EF-N Plan Achromat Objectives - EF-N PL
|
| 22455-322
| CCIS® EF-N Plan Achromatic Objective 20x/0.40 (WD 1.3mm)
| each
| 91.00
|
|
| 22455-327
| CCIS® EF-N Plan Achromatic Objective 60x/0.8/S (WD 0.14mm)
| each
| 188.00
|
|
| EF-N Plan Phase Contrast Objectives - EF-N PL PH
|
| 22455-331
| CCIS® EF-N Plan Phase Contrast Objective 40x/0.65 (WD 0.4mm)
| each
| 416.00
|
|

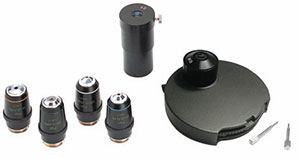

| Phase Contrast Equipment
|
| 22430-365
| Phase Slider 10x
| each
| 98.00
|
|
| 22455-366
| Phase Slider 40x
| each
| 81.00
|
|
| 22431-370
| Phase Centering Telescope
| each
| 117.00
|
|
| Darkfield
|
| 22455-410
| Darkfield Slider 10-40x
| each
| 134.00
|
|
| Simple Polarizing
|
| 22430-412
| Simple Add-on Analyzer
| each
| 47.00
|
|
| 22430-414
| Simple Add-on Polarizer
| each
| 47.00
|
|
| Optional Accessories and Replacements
|
| 22430-420
| Yellow Filter (45mm)
| each
| 23.00
|
|
| 22430-421
| Green Filter (45mm)
| each
| 23.00
|
|
| 22431-230
| Quartz Halogen Lamp, 6V/30W
| each
| 24.00
|
|
| 22430-240
| Immersion Oil, 5ml
| each
| 11.00
|
|
