Grids Overview

Gilder TEM Grids

for Transmission Electron Microscopy
Grid detail   Fine mesh
Standard Mesh Grids with marks: An asymmetrical mark in the rim, shown top. Center mark for quadrant location or older style, “reverse arrow”, bottom. Fine Mesh Grids with marks: An asymmetrical mark in the rim, shown top. Center mark divides grid into 6 areas, bottom.

The Gilder grids are available in 50 to an unrivalled ultra fine 2000 mesh. The Gilder grids feature well defined grid bars, shiny (smooth) and matt side difference and are packaged in custom anti-static vials. They are made with precision electroplating technologies. An additional feature of the Gilder grids are the rim and center marks to aid in the orientation on the grid and identification of each side. Most Gilder grids have a rim mark and many grids also have center marks. Wide selection of grid styles to support virtually every application with standard diameter of 3.05mm. Available materials are Cu, Ni, Au, Mo and Cu/Pd.

Packaging: Standard Cu, Ni or Cu/Pd, 100 grids/vial except special configurations which are listed accordingly with packaging of 25 or 50 grids/vial.

Thickness of Nickel grids is typically 35µm ±5µm.
Thickness of Mo grids is typically 25µm - 50µm.

Gilder Grid Size Specifications

Molybdenum is used principally in applications where its hardness, expansion coefficient, high temperature and corrosive resistance characteristics are considered important. Mo typical purity 99.9%, melting point 2617°C (4742.6°F).

50 Mesh
75 Mesh
100 Mesh
150 Mesh
 200 Mesh
300 Mesh
400 Mesh
600 Mesh 		Ultra Fine Mesh: 1000 Mesh
Ultra Fine Mesh: 1500 Mesh
Ultra Fine Mesh: 2000 Mesh
 Hexagonal

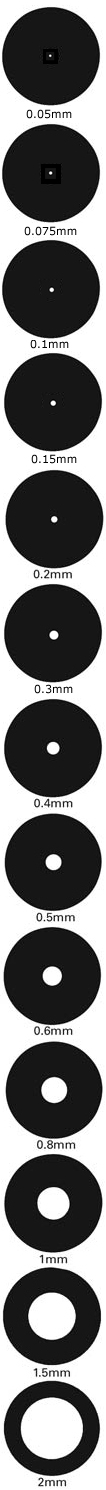

Aperture Grids
Slot grids
Triple Slot Grids

Gilder Standard Square Mesh - overall thickness variation: G50: 25µm , ±5µm; G600TT: 6µm , ±2µm



Gilder 50 Mesh Grids

Prod # Description Unit Qty Price Order / Quote
G50: Pitch 500µm; Hole Width 420µm; Bar Width 80µm; Transmission 70%
G50 Gilder Grids, 50 mesh, 3.05mm O.D., Copper 100/vial 1-9 $25.00
Qty:
10+ 23.14
G50N Gilder Grids, 50 mesh, 3.05mm O.D., Nickel 100/vial 1-9 36.00
Qty:
10+ 34.26

gilder 50 mesh tem grid



Gilder 75 Mesh Grids

Prod # Description Unit Qty Price Order / Quote
G75: Pitch 340µm; Hole Width 285µm; Bar Width 55µm; Transmission 66%
G75 Gilder Grids, 75 mesh, 3.05mm O.D., Center and Rim-Mark, Copper 100/vial 1-9 $25.00
Qty:
10+ 23.59
G75N Gilder Grids, 75 mesh, 3.05mm O.D., Center and Rim-Mark, Nickel 100/vial 1+ 31.00
Qty:
G75G Gilder Grids, 75 mesh, 3.05mm O.D., Center and Rim-Mark, Gold 50/vial 1-9 91.00
Qty:
10+ 84.87
G75CUPD Gilder Grids, 75 mesh, 3.05mm O.D., Center and Rim-Mark, Cu/Pd Palladium Coated Copper Grids 100/vial 1-9 36.00
Qty:
10+ 33.74
gilder 75 mesh tem grid



Gilder 100 Mesh Grids

Prod # Description Unit Qty Price Order / Quote
G100: Pitch 250µm; Hole Width 205µm; Bar Width 45µm; Transmission 67%
G100 Gilder Grids, 100 mesh, 3.05mm O.D., Center and Rim-Mark, Copper 100/vial 1-9 $28.50
Qty:
10+ 26.40
G100CUPD Gilder Grids, 100 mesh, 3.05mm O.D., Center and Rim-Mark, Cu/Pd Palladium Coated Copper Grids 100/vial 1-9 49.00
Qty:
10+ 46.82
G100N Gilder Grids, 100 mesh, 3.05mm O.D., Center and Rim-Mark, Nickel 100/vial 1-9 41.55
Qty:
10+ 39.85
G100M Gilder Grids, 100 mesh, 3.05mm O.D., Molybdenum, Center and Rim-Mark 25/vial 1+ 98.65
Qty:
gilder 100 mesh, center marked tem grid
G100, G100N

gilder 100 mesh tem grid
G100M




Gilder 150 Mesh Grids

Prod # Description Unit Qty Price Order / Quote
G150: Pitch 165µm; Hole Width 125µm; Bar Width 40µm; Transmission 45%
G150 Gilder Grids, 150 mesh, 3.05mm O.D., Center and Rim-Mark, Copper 100/vial 1-9 $33.25
Qty:
10+ 31.05
G150CUPD Gilder Grids, 150 mesh, 3.05mm O.D., Center and Rim-Mark, Cu/Pd Palladium Coated Copper Grids 100/vial 1-9 39.00
Qty:
10+ 36.61
G150G NEW Gilder Grids, 150 mesh, 3.05mm O.D., Center and Rim-Mark, Gold 50/vial 1+ 65.00
Qty:
G150N Gilder Grids, 150 mesh, 3.05mm O.D., Center and Rim-Mark, Nickel 100/vial 1-9 47.70
Qty:
10+ 45.30
gilder 150 mesh, center marked tem grid




Gilder 200 Mesh Grids

Prod # Description Unit Qty Price Order / Quote
Center-Marked
G200: Pitch 125µm; Hole Width 90µm; Bar Width 35µm; Transmission 52%
G200 Gilder Grids, 200 mesh, 3.05mm O.D., Center and Rim-Mark, Copper 100/vial 1-9 $31.30
Qty:
10+ 29.80
G200N Gilder Grids, 200 mesh, 3.05mm O.D., Center and Rim-Mark, Nickel 100/vial 1-9 39.00
Qty:
10+ 36.40
Fine Bar Grids, square mesh
G200HS: Pitch 125µm; Hole Width 113µm; Bar Width 12µm; Transmission 82%
G200HS Gilder Fine Bar Grids, 200 mesh, 3.05 O.D., Rim-Tab, Rim-Mark, Copper 100/vial 1-9 45.00
Qty:
10+ 42.85
G200HSN Gilder Fine Bar Grids, 200 mesh, 3.05 O.D., Rim-Tab, Rim-Mark, Nickel 100/vial 1-9 51.00
Qty:
10+ 48.45
G200HSG Gilder Fine Bar Grids, 200 mesh, 3.05 O.D., Rim-Tab, Rim-Mark, Gold 50/vial 1-9 59.45
Qty:
10+ 56.48
G200M Gilder Grids, 200 mesh, Center-Marked, 3.05mm O.D., Rim-Mark, Molybdenum 25/vial 1+ 90.00
Qty:
gilder 200 mesh, fine bar tem grids
G200

G200HS
G200HS
gilder 200 mesh tem grid
G200M



Gilder 300 Mesh Grids

Prod # Description Unit Qty Price Order / Quote
Center-Marked
G300: Pitch 83µm; Hole Width 58µm; Bar Width 25µm; Transmission 49%
G300 Gilder Grids, 300 mesh, 3.05mm O.D., Center and Rim-Mark, Copper 100/vial 1-9 $30.00
Qty:
10+ 27.86
G300G Gilder Grids, 300 mesh, 3.05mm O.D., Center and Rim-Mark, Gold 50/vial 1-9 67.00
Qty:
10+ 63.27
G300N Gilder Grids, 300 mesh, 3.05mm O.D., Center and Rim-Mark, Nickel 100/vial 1-9 35.00
Qty:
10+ 33.60
Fine Bar Grids, square mesh
G300HS Gilder Fine Bar Grids, 300 mesh, 3.05 O.D., Rim-Tab, Rim-Mark, Copper 100/vial 1-9 53.00
Qty:
10+ 50.51
G300HSN Gilder Fine Bar Grids, 300 mesh, 3.05 O.D., Rim-Tab, Rim-Mark, Nickel 100/vial 1-9 60.25
Qty:
10+ 57.24
gilder 300 mesh tem grids
G300, G300N

G300HS



Gilder 400 Mesh / 400 Lines Grids

Prod # Description Unit Qty Price Order / Quote
Center-Marked
G400: Pitch 62µm; Hole Width 37µm; Bar Width 25µm; Transmission 37%
G400 Gilder Grids, 400 mesh, 3.05mm O.D., Center and Rim-Mark, Copper 100/vial 1-9 $30.00
Qty:
10+ 28.15
G400G Gilder Grids, 400 mesh, 3.05mm O.D., Center and Rim-Mark, Gold 50/vial 1-9 70.00
Qty:
10+ 67.08
G400CUPD Gilder Grids, 400 mesh, 3.05mm O.D., Center and Rim-Mark, Cu/Pd Palladium Coated Copper Grids 100/vial 1-9 38.00
Qty:
10+ 34.99
G400N Gilder Grids, 400 mesh, 3.05mm O.D., Center and Rim-Mark, Nickel 100/vial 1-9 84.00
Qty:
10+ 80.08
Fine Bar Grids, square mesh
G400HS Gilder Fine Bar Grids, 400 mesh, 3.05 O.D., Rim-Tab, Rim-Mark, Copper 100/vial 1-9 60.85
Qty:
10+ 57.81
Parallel Bar Grids
G400P Gilder Parallel Bar Grids, 400 lines, 3.05mm O.D., Rim-Mark, Gold 50/vial 1+ 71.00
Qty:
gilder 400 mesh tem grids
G400
gilder 400 mesh tem grids
G400HS
gilder 400 mesh tem grids
G400P

Gilder Standard Square Mesh - overall thickness variation: G50: 25µm , ±5µm; G600TT: 6µm , ±2µm

600 Mesh

Prod # Description Unit Qty Price Order / Quote
Fine Bar: Pitch 42µm, Hole Width 37µm, Bar Width 5µm, Transmission 78%
G600HSS Gilder Extra Fine Bar Grids, 600 mesh, 3.05mm O.D., Rim-Mark, Copper 100/vial 1-9 $67.45
Qty:
10+ 64.95

Prod # Description Unit Qty Price Order / Quote
Thick-Thin, hole size 30µm, bar 10/16µm, center-marked
G600TT Gilder Thick-Thin Bar Grids, 600 mesh, 3.05mm O.D., Center-Mark, Copper 100/vial 1-9 $48.00
Qty:
10+ 45.68
G600TTG Gilder Thick-Thin Bar Grids, 600 mesh, 3.05mm O.D., Center-Mark, Gold 50/vial 1+ 107.65
Qty:

Gilder G600HSS TEM Grid
G600HSS
G600TT Gilder Grid
G600TT



Ultra Fine Grids: Square, Hexagonal, Circular Mesh



Ultra Fine Square 1000 Mesh

Prod # Description Unit Qty Price Order / Quote
G1000HS: Pitch 25µm; Hole Width 19µm; Bar Width 6µm; Transmission 57%
G1000HS Gilder Extra Fine Bar Grids, 1000 mesh, 3.05mm O.D., Rim-Mark, Copper 25/vial 1-9 $51.55
Qty:
10+ 49.40
G1000HSN Gilder Extra Fine Bar Grids, 1000 mesh, 3.05mm O.D., Rim-Mark, Nickel 25/vial 1-9 76.15
Qty:
10+ 72.35
G1000HSG Gilder Extra Fine Bar Grids, 1000 mesh, 3.05mm O.D., Rim-Mark, Gold 25/vial 1-9 126.00
Qty:
10+ 119.70
G1000HS Gilder Grid
G1000HS



Ultra Fine Hexagonal 1000 Mesh

Prod # Description Unit Qty Price Order / Quote
G1000HH: Pitch 25µm; Hole Width 19µm; Bar Width 6µm; Transmission 57%
G1000HH Gilder Extra Fine Bar Grids, 1000 mesh Hex, 3.05mm O.D., Rim-Mark, Copper 25/vial 1-9 $51.55
Qty:
10+ 49.40
G1000HHN Gilder Extra Fine Bar Grids, 1000 mesh Hex, 3.05mm O.D., Rim-Mark, Nickel 25/vial 1-9 76.15
Qty:
10+ 72.35
G1000HHG Gilder Extra Fine Bar Grids, 1000 mesh Hex 3.05mm O.D., Rim-Mark, Gold 25/vial 1-9 141.15
Qty:
10+ 134.10
G1000HH Gilder Grid
G1000HH



Ultra Fine Square 1500 Mesh

Prod # Description Unit Qty Price Order / Quote
G1500HS: Pitch 16.5µm; Hole Width 11.5µm; Bar Width 5µm; Transmission 49%
G1500HS Gilder Extra Fine Bar Grids, 1500 mesh, 3.05mm O.D., Rim-Mark, Copper 15/vial 1-9 $56.05
Qty:
10+ 52.65
G1500HSN Gilder Extra Fine Bar Grids, 1500 mesh, 3.05mm O.D., Rim-Mark, Nickel 15/vial 1-9 76.30
Qty:
10+ 72.45
G1500HSG Gilder Extra Fine Bar Grids, 1500 mesh, 3.05mm O.D., Rim-Mark, Gold 15/vial 1-9 141.15
Qty:
10+ 134.10
G1500HS Gilder Grid
G1500HS



Ultra Fine Hexagonal 1500 Mesh

Prod # Description Unit Qty Price Order / Quote
G1500HH: Pitch 16.5µm; Hole Width 10.5µm; Bar Width 6µm; Transmission 40%
G1500HH Gilder Extra Fine Bar Grids, 1500 mesh hex, 3.05mm O.D., Rim-Mark, Copper 15/vial 1-9 $56.05
Qty:
10+ 52.65
G1500HHN Gilder Extra Fine Bar Grids, 1500 mesh hex, 3.05mm O.D., Rim-Mark, Nickel 15/vial 1-9 76.15
Qty:
10+ 72.35
G1500HHG Gilder Extra Fine Bar Grids, 1500 mesh hex, 3.05mm O.D., Rim-Mark, Gold 15/vial 1-9 141.15
Qty:
10+ 134.10
G1500HH Gilder Grid
G1500HH



Ultra Fine Square 2000 Mesh

Prod # Description Unit Qty Price Order / Quote
G2000HS: Pitch 12.5µm; Hole Width 6.5µm; Bar Width 6µm; Transmission 41%
G2000HS Gilder Extra Fine Bar Grids, 2000 mesh, 3.05mm O.D., Rim-Mark, Copper 10/vial 1-9 $48.75
Qty:
10+ 46.30
G2000HSN Gilder Extra Fine Bar Grids, 2000 mesh, 3.05mm O.D., Rim-Mark, Nickel 10/vial 1-9 68.00
Qty:
10+ 64.60
G2000HSG Gilder Extra Fine Bar Grids, 2000 mesh, 3.05mm O.D., Rim-Mark, Gold 10/vial 1-9 126.00
Qty:
10+ 119.70
G2000HS Gilder Grid
G2000HS



Ultra Fine Circular Aperture 2000 Mesh

Prod # Description Unit Qty Price Order / Quote
G2000HA: Pitch 12.5µm; Hole Width 6.5µm; Bar Width 6µm; Transmission 41%
G2000HA Gilder Extra Fine Bar Grids, 2000 mesh circular, 3.05mm O.D., Rim-Mark, Copper 10/vial 1-9 $50.45
Qty:
10+ 48.35
G2000HAN Gilder Extra Fine Bar Grids, 2000 mesh circular, 3.05mm O.D., Rim-Mark, Nickel 10/vial 1-9 72.55
Qty:
10+ 68.90
G2000HAG Gilder Extra Fine Bar Grids, 2000 mesh circular, 3.05mm O.D., Rim-Mark, Gold 10/vial 1-9 141.15
Qty:
10+ 133.55
G2000HH Gilder Grid
G2000HA



Gilder Hexagonal Mesh, Standard Grids

Hexagonal Mesh - overall thickness variation: G400HEX: 25µm , ±5µm; G300HEX: 10µm , ±2µm

Prod # Description Unit Qty Price Order / Quote

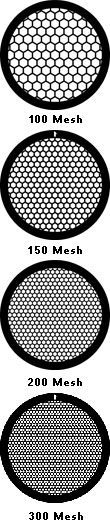

Gilder Standard Hexagonal Mesh
G100HEX: Pitch 250µm; Hole Width 220µm; Bar Width 30µm; Transmission 77%
G100HEX Gilder Hexagonal Grids, 100 mesh, 3.05mm O.D., Copper 100/vial 1-9 $34.80
Qty:
10+ 33.06
G100HEX-AU Gilder Hexagonal Grids, 100 mesh, 3.05mm O.D., Gold 50/vial 1-9 72.05
Qty:
10+ 67.80
G100HEX-CUPD Gilder Hexagonal Grids, 100 mesh, 3.05mm O.D., Cu/Pd Palladium Coated Copper Grids 50/vial 1-9 35.00
Qty:
10+ 33.76
G100HEX-N Gilder Hexagonal Grids, 100 mesh, 3.05mm O.D., Nickel 100/vial 1-9 47.50
Qty:
10+ 44.45
G150HEX: Pitch 165µm; Hole Width 105µm; Bar Width 35µm; Transmission 62%
G150HEX Gilder Hexagonal Grids, 150 mesh, Rim-Mark, 3.05mm O.D., Copper 100/vial 1-9 34.45
Qty:
10+ 33.10
G200HEX: Pitch 125µm; Hole Width 90µm; Bar Width 20µm; Transmission 70%
G200HEX Gilder Hexagonal Grids, 200 mesh, 3.05mm O.D., Copper 100/vial 1-9 28.00
Qty:
10+ 26.13
G200HEX-N Gilder Hexagonal Grids, 200 mesh, 3.05mm O.D., Nickel 100/vial 1-9 38.00
Qty:
10+ 36.40
G300HEX: Pitch 83µm; Hole Width 58µm; Bar Width 25µm; Transmission 49%
G300HEX Gilder Hexagonal Grids, 300 mesh, Rim-Mark, 3.05mm O.D., Copper 100/vial 1-9 28.00
Qty:
10+ 26.12
gilder hexagonal tem grids



Gilder Hexagonal Mesh, Fine Bar Grids

Prod # Description Unit Qty Price Order / Quote
Gilder Fine Bar Hexagonal Mesh
G200HH: Pitch 125µm; Hole Width 113µm; Bar Width 12µm; Transmission 82%
G200HH Gilder Fine Bar Hexagonal Grids, 200 mesh, 3.05 O.D., Rim-Tab, Copper 100/vial 1-9 $44.00
Qty:
10+ 41.98
G200HHN Gilder Fine Bar Hexagonal Grids, 200 mesh, 3.05 O.D., Rim-Tab, Nickel 100/vial 1-9 51.00
Qty:
10+ 48.45
G300HH: Pitch 83µm; Hole Width 73µm; Bar Width 10µm; Transmission 77%
G300HH Gilder Fine Bar Hexagonal Grids, 300 mesh, 3.05 O.D., Rim-Tab, Copper 100/vial 1-9 52.00
Qty:
10+ 49.45
G300HHN Gilder Fine Bar Hexagonal Grids, 300 mesh, 3.05 O.D., Rim-Tab, Nickel 100/vial 1-9 61.00
Qty:
10+ 57.79
G400HH: Pitch 57µm; Hole Width 49µm; Bar Width 8µm; Transmission 74%
G400HH Gilder Fine Bar Hexagonal Grids, 400 mesh, 3.05 O.D., Center Mark, Rim-Tab, Copper 100/vial 1-9 60.85
Qty:
10+ 57.81
G400HHG Gilder Fine Bar Hexagonal Grids, 400 mesh, 3.05 O.D., Center Mark, Rim-Tab, Gold 50/vial 1-9 75.50
Qty:
10+ 71.73
G400HHN Gilder Fine Bar Hexagonal Grids, 400 mesh, 3.05 O.D., Center Mark, Rim-Tab, Nickel 100/vial 1-9 77.00
Qty:
10+ 73.15
G600HH: Pitch 37µm; Hole Width 29µm; Bar Width 8µm; Transmission 61%
G600HH Gilder Fine Bar Hexagonal Grids, 600 mesh, 3.05 O.D., Center Mark, Rim-Tab, Copper 100/vial 1-9 69.00
Qty:
10+ 65.84
G600HHG Gilder Fine Bar Hexagonal Grids, 600 mesh, 3.05 O.D., Center Mark, Rim-Tab, Gold 50/vial 1+ 53.50
Qty:
G600HHG-1 Gilder Fine Bar Hexagonal Grids, 600 mesh, with Rim-Mark only, 3.05mm O.D., Gold 50/vial 1+ 53.50
Qty:
G600HHN Gilder Fine Bar Hexagonal grids, 600 mesh, 3.05 O.D., Center Mark, Rim-Tab, Nickel 100/vial 1-9 88.25
Qty:
10+ 83.85
G600HHS: Pitch 42µm; Hole Width 37µm; Bar Width 5µm; Transmission 78%
G600HHS Gilder Fine Bar Hexagonal grids, 600 mesh, 3.05 O.D., Rim-Mark only, Copper 100/vial 1-9 67.45
Qty:
10+ 64.95

gilder fine bar hexagonal grids
G200HH

G300HH

G400HH

G600HH

G600HHS



Gilder Aperture Grids

Gilder Aperture - overall thickness variation: GA200: 25µm , ±3µm; GA2000: 50µm , ±5µm

Prod # Description Unit Qty Price Order / Quote
GA50 Gilder Aperture Grids, 0.05mm Hole, 3.05mm O.D., Copper 100/vial 1-9 $36.00
Qty:
10+ 34.22
GN50 Gilder Aperture Grids, 0.05mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 49.00
Qty:
10+ 46.40
GA75 Gilder Aperture Grids, 0.075mm Hole, 3.05mm O.D., Copper 100/vial 1-9 40.00
Qty:
10+ 36.50
GN75 Gilder Aperture Grids, 0.075mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 52.00
Qty:
10+ 49.36
GA100 Gilder Aperture Grids, 0.1mm Hole, 3.05mm O.D., Copper 100/vial 1-9 36.00
Qty:
10+ 34.22
GN100 Gilder Aperture Grids, 0.1mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 53.00
Qty:
10+ 50.43
GA150 Gilder Aperture Grids, 0.15mm Hole, 3.05mm O.D., Copper 100/vial 1-9 37.00
Qty:
10+ 34.95
GN150 Gilder Aperture Grids, 0.15mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 50.00
Qty:
10+ 47.35
GA200 Gilder Aperture Grids, 0.2mm Hole, 3.05mm O.D., Copper 100/vial 1-9 36.00
Qty:
10+ 33.52
GN200 Gilder Aperture Grids, 0.2mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 50.00
Qty:
10+ 47.35
GA300 Gilder Aperture Grids, 0.3mm Hole, 3.05mm O.D., Copper 100/vial 1-9 37.00
Qty:
10+ 34.95
GN300 Gilder Aperture Grids, 0.3mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 45.00
Qty:
10+ 43.77
GA400 Gilder Aperture Grids, 0.4mm Hole, 3.05mm O.D., Copper 100/vial 1-9 37.00
Qty:
10+ 34.95
GN400 Gilder Aperture Grids, 0.4mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 51.00
Qty:
10+ 48.33
GA500 Gilder Aperture Grids, 0.5mm Hole, 3.05mm O.D., Copper 100/vial 1-9 37.00
Qty:
10+ 34.95
GN500 Gilder Aperture Grids, 0.5mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 51.00
Qty:
10+ 48.33
GA600 Gilder Aperture Grids, 0.6mm Hole, 3.05mm O.D., Copper 100/vial 1-9 36.00
Qty:
10+ 34.22
GN600 Gilder Aperture Grids, 0.6mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 49.00
Qty:
10+ 46.40
GA800 Gilder Aperture Grids, 0.8mm Hole, 3.05mm O.D., Copper 100/vial 1-9 42.00
Qty:
10+ 39.11
GN800 Gilder Aperture Grids, 0.8mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 51.00
Qty:
10+ 48.33
GA1000 Gilder Aperture Grids, 1.0mm Hole, 3.05mm O.D., Copper 100/vial 1-9 36.00
Qty:
10+ 34.22
GN1000 Gilder Aperture Grids, 1.0mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 48.00
Qty:
10+ 44.62
GA1000M Gilder Aperture Grids, 1mm Hole, 3.05mm O.D., Molybdenum 25/vial 1+ 87.00
Qty:
GA1500 Gilder Aperture Grids, 1.5mm Hole, 3.05mm O.D., Copper 100/vial 1-9 35.00
Qty:
10+ 32.85
GN1500 Gilder Aperture Grids, 1.5mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 52.00
Qty:
10+ 49.36
GA2000 Gilder Aperture Grids, 2.0mm Hole, 3.05mm O.D., Copper 100/vial 1-9 36.00
Qty:
10+ 34.22
GN2000 Gilder Aperture Grids, 2.0mm Hole, 3.05mm O.D., Nickel 100/vial 1-9 50.00
Qty:
10+ 47.35
gilder triple slot grid



Gilder Slot Grids

Gilder Slot - overall thickness variation: G1X0.2: 25µm , ±3µm; G2X1.5: 60µm , ±6µm

Prod # Description Unit Qty Price Order / Quote
G1X0.2CU Gilder Slot Grids, 1 x 0.2mm, 3.05mm O.D., Copper 100/vial 1-9 $42.75
Qty:
10+ 40.65
G1X0.2N Gilder Slot Grids, 1 x 0.2mm, 3.05mm O.D., Nickel 100/vial 1-9 65.35
Qty:
10+ 61.25
G1X0.2AU Gilder Slot Grids, 1 x 0.2mm, 3.05mm O.D., Gold 50/vial 1+ 89.10
Qty:
G1.5X0.3CU Gilder Slot Grids, 1.5 x 0.3mm, 3.05mm O.D., Copper 100/vial 1-9 42.75
Qty:
10+ 39.90
G1.5X0.3N Gilder Slot Grids, 1.5 x 0.3mm, 3.05mm O.D., Nickel 100/vial 1-9 74.45
Qty:
10+ 70.60
G2X0.5CU Gilder Slot Grids, 2 x 0.5mm, 3.05mm O.D., Copper 100/vial 1-9 34.00
Qty:
10+ 32.86
G2X0.5N Gilder Slot Grids, 2 x 0.5mm, 3.05mm O.D., Nickel 100/vial 1-9 54.00
Qty:
10+ 51.55
G2X0.5AU Gilder Slot Grids, 2 x 0.5mm, 3.05mm O.D., Gold 50/vial 1+ 78.00
Qty:
G2X0.75CU Gilder Slot Grids, 2 x 0.75mm, 3.05mm O.D., Copper 100/vial 1-9 36.00
Qty:
10+ 33.19
G2X0.75N Gilder Slot Grids, 2 x 0.75mm, 3.05mm O.D., Nickel 100/vial 1-9 77.00
Qty:
10+ 73.15
G2X0.75AU Gilder Slot Grids, 2 x 0.75mm, 3.05mm O.D., Gold 50/vial 1+ 71.00
Qty:
G1X2CU Gilder Slot Grids, 2 x 1mm, 3.05mm O.D., Copper 100/vial 1-9 42.75
Qty:
10+ 40.65
G1X2N Gilder Slot Grids, 2 x 1mm, 3.05mm O.D., Nickel 100/vial 1-9 46.00
Qty:
10+ 43.77
G1X2AU Gilder Slot Grids, 2 x 1mm, 3.05mm O.D., Gold 50/vial 1+ 73.00
Qty:
G1X2CU/PD Gilder Slot Grids, 2 x 1mm, 3.05mm O.D., Cu/Pd Palladium Coated Copper Grids 100/vial 1-9 52.00
Qty:
10+ 48.95
GS1X2M Gilder Slot Grids, 2 x 1mm, 3.05mm O.D., Molybdenum 25/vial 1+ 80.00
Qty:
G2X1.5CU Gilder Slot Grids, 2 x 1.5mm, 3.05mm O.D., Copper 100/vial 1-9 32.00
Qty:
10+ 30.43
G2X1.5N Gilder Slot Grids, 2 x 1.5mm, 3.05mm O.D., Nickel 100/vial 1-9 43.00
Qty:
10+ 40.70
G2X1.5AU Gilder Slot Grids, 2 x 1.5mm, 3.05mm O.D., Gold 50/vial 1+ 71.00
Qty:
gilder triple slot grid



Gilder Triple Slot Grid

Three .54mm x .95mm slots in a 3.05mm copper grid.
Bar width 90µm

Extra bars provide better support over a large area. If a supporting film is ruptured in one area it does not effect the other 2 areas. This is an advantage compared to one-slot grids.

Prod # Description Unit Qty Price Order / Quote
1GC3X1 Gilder Triple Slot Grids, 3.05mm O.D., Copper 100/vial 1+ $46.30
Qty:
gilder triple slot grid

Gilder Grids Size Specifications

Rim Width: 300-500µm
Thickness: Square Mesh 6-25µm
Hex 10-25µm
Parallel Bar 12-27µm
Slot 25-60µm
Aperture 25-50µm
Diameter: 3.05mm
Packaging: 100 grids/vial for standard Cu, or Ni grids
50 grids/vial for Au
25 grids/vial for Mo
25/15/10 grids/vial for ultra fine mesh
Pitch: Is 1"/mesh or 25.4mm/mesh
Example 200 mesh pitch = 25.4/200 = 127µm

grid bars

From the drawing above, the hole and bar widths are shown. Sometimes "pitch" is used in this terminology and it is the equivalent of hole width plus bar width.
Material Code
Copper G or GC
Nickel GN
Gold GG /G-G, or G-AU
Copper/Palladium G-CUPD
Molybdenum G-M



Square
Mesh 		Pitch
µm 		Hole
Width
µm 		Bar
Width
µm 		% Trans-
mission 		Mark
Center Rim
G50 500 420 80 70 - -
G75 340 285 55 66 • •
G100 250 205 45 67 • •
G100HEX 250 220 30 77 - -
G150 165 125 40 45 • •
G150HEX 165 130 35 62 - •
G200 125 90 35 52 • •
G200HEX 125 105 20 70 - -
G200HH 125 113 12 82 - •
G200HS 125 113 12 82 - •
G300 83 58 25 49 • •
G300HS 83 73 10 77 - •
G300HEX 83 58 25 49 - •
G300HH 83 73 10 77 - •
G400 62 37 25 37 • •
G400HS 62 54 8 76 - •
G400HEX 62 37 25 36 - •
G400HH 57 49 8 74 • •
G400P 62 40 22 65 - •
G600TT - 30 10/16 - • -
G600HH 37 29 8 61 • •
G600HHS 42 37 5 78 - •
G600HSS 42 37 5 78 - •
G1000HS 25 19 6 57 - •
G1000HH 25 19 6 57 - •
G1500HS 16.5 11.5 5 49 - •
G1500HH 16.5 10 6 40 - •
G2000HS 12.5 7.5 5 36 - •
G2000HA 12.5 6.5 65 41 - •
