Designed specifically for the steam sterilization of laboratory research tools, the BioClave™ benchtop autoclaves offer space-saving exterior dimensions while maintaining large internal stainless steel chambers to accommodate a variety of liquids, media, instruments, glassware, plasticware, and other common research laboratory items. Available in 8L, 18L, and 28L chamber volumes with a large digital LCD display and fully automatic operation, all segments of the cycle (fill, sterilize, exhaust, and dry) commence and run to completion by simply pressing the start button.
These benchtop models include a mechanical and electrical safety interlock that prevents the door from being opened until the pressure has reached zero PSI. A USB drive can be used to record settings and transfer them to a PC. Three wire trays (two with the BioClave™ Mini) are supplied with each unit, along with a convenient tray removal tool.
The BioClave™ benchtop autoclaves are preprogrammed to meet basic sterilization needs. They offer preset cycle options (standard programs), for use with liquids, wrapped research instruments, or unwrapped instruments/plasticware. An additional option “Dry Only” is also available for additional drying time to be added to the end of a cycle. For special applications requiring variations in cycle parameters, all settings such as temperature and the sterilization time are fully adjustable, making the BioClave™ the ideal choice wherever benchtop sterilization is required and space is limited.
Features
- Designed specifically for the rapid, complete sterilization of laboratory research tools
- Fully automatic operation – just press start
- Built in water tank – no external connection needed
- 8L, 18L and 28L models
- Extremely compact – all models small enough for benchtop use
Specifications
Model |
BioClave™ Mini |
BioClave™ 18 |
BioClave™ 28 |
Chamber Volume |
8L |
18L |
28L |
Max Pressure |
29 PSI (2 Bar) |
29 PSI (2 Bar) |
34.8 PSI (2.4 Bar) |
Chamber Dimensions
(diameter x depth) |
17 x 31cm
(6.7 x 12.5") |
24.8 x 35cm
(9.8 x 13.77") |
32 x 41.7cm
(12.6 x 16.4") |
Exterior Dimensions |
51 x 34 x 33cm
(20 x 13.5 x 12.9") |
56 x 44.5 x 40cm
(22 x 17.5 x 15.7") |
63.5 x 63.5 x 55.9cm
(25 x 25 x 22") |
Weight |
33kg (74 lb) |
40kg (89 lb) |
95kg (209 lb) |
Electrical |
120V/230V; 50-60Hz |
120V/230V; 50-60Hz |
120V/220V; 50-60Hz |
Power |
950W |
1600W |
1750W/2300W |
Warranty |
1 year |
Bottle/Flask Capacity
Model |
BioClave™ Mini |
BioClave™ 18 |
BioClave™ 28 |
100mL Media Bottle |
8 |
15 |
42 |
250mL Media Bottle |
4 |
8 |
11 |
500mL Media Bottle |
N/A |
3 |
8 |
1L Media Bottle |
N/A |
N/A |
6 |
2L Media Bottle |
N/A |
N/A |
2 |
125mL Erlenmeyer Flask |
4 |
8 |
30 |
250mL Erlenmeyer Flask |
2 |
6 |
8 |
500mL Erlenmeyer Flask |
N/A |
3 |
6 |
1L Erlenmeyer Flask |
N/A |
N/A |
3 |
2L Erlenmeyer Flask |
N/A |
N/A |
2 |
Ordering Information
Prod #
| Description
| Unit
| Price
| Order / Quote
|
3250
| BioClave™ Mini Autoclave, 8 liter, 120V
| each
| P.O.R.
|
|
3250-230
| BioClave™ Mini Autoclave, 8 liter, 230V
| each
| P.O.R.
|
|
3251
| BioClave™ Autoclave, 18 liter, 120V
| each
| P.O.R.
|
|
3251-230
| BioClave™ Autoclave, 18 liter, 230V
| each
| P.O.R.
|
|
3252
| BioClave™ Autoclave, 28 liter, 120V
| each
| P.O.R.
|
|
3252-220
| BioClave™ Autoclave, 28 liter, 220V
| each
| P.O.R.
|
|
|
|

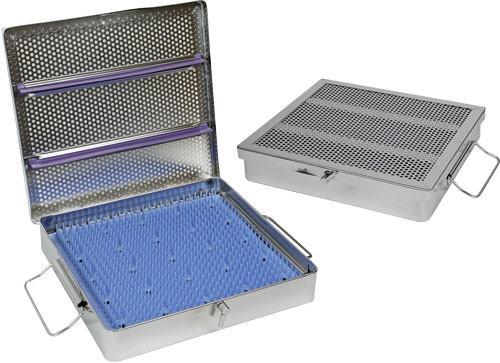

Stainless Steel Instrument Cases
These instrument cases provide an effective way of protecting delicate surgical instruments during procedures and autoclave steam sterilization.
- Interlocking silicone strips keep instruments in place
- Available with silicone mat for smaller micro dissecting instruments (#3241-1 & #3242-1)
- Stackable and made of Stainless Steel with a removable cover to facilitate easy cleaning
|
Prod #
| Description
| Unit
| Price
| Order / Quote
|
3241
| Instrument Case, SS, 8 x 8.5"
| each
| $205.00
|
|
3242
| Instrument Case, SS, 8 x 12"
| each
| 230.00
|
|
3241-1
| Instrument Case, SS, 8 x 8.5" with Silicone Mat
| each
| 230.00
|
|
3242-1
| Instrument Case, SS, 8 x 12" with Silicone Mat
| each
| 280.00
|
|
3241-M
| Replacement Silicone Mat, 8 x 8.5"
| each
| 65.00
|
|
3242-M
| Replacement Silicone Mat, 8 x 12"
| each
| 80.00
|
|
|

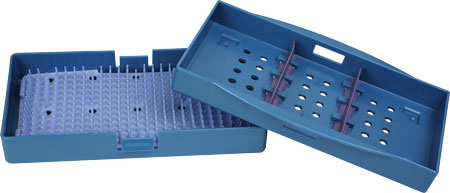

Plastic Instrument Cases
Protect your delicate surgical instruments during autoclaving with these cost effective Instrument cases.
- Interlocking silicone strips keep instruments in place
- Available with silicone mat for smaller micro dissecting instruments (#3243-1 & #3244-1)
- Stackable and made of lightweight, durable, autoclave-safe Ultem 1000 Plastic with a removable cover to facilitate easy cleaning
|
Prod #
| Description
| Unit
| Price
| Order / Quote
|
3243
| Instrument Case, Plastic, 8 x 4"
| each
| $62.00
|
|
3244
| Instrument Case, Plastic, 8 x 15"
| each
| 92.00
|
|
3243-1
| Instrument Case, Plastic, 8 x 4" with Silicone Mat
| each
| 70.00
|
|
3244-1
| Instrument Case, Plastic, 8 x 15" with Silicone Mat
| each
| 105.00
|
|
3243-M
| Replacement Silicone Mat, 8 x 4"
| each
| 50.00
|
|
3244-M
| Replacement Silicone Mat, 8 x 15"
| each
| 85.00
|
|
|

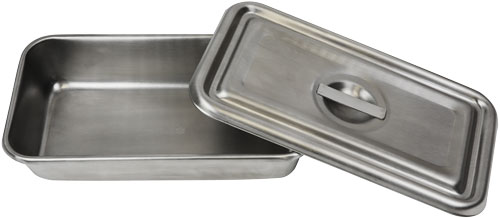

Stainless Steel Instrument Trays
These instrument trays are electro-polished to provide a durable, corrosion-resistant surface with a bright, clean finish. Constructed of heavy gauge stainless steel, these trays are ideal for the harsh autoclave environment as well as chemical sterilization, able to withstand repeated cold chemical soaks. These instrument trays also make excellent separation containers for the organizing, storage, and protection of valuable instruments. |
Prod #
| Description
| Unit
| Price
| Order / Quote
|
3245
| Instrument Tray, SS, 9 x 5 x 2"
| each
| $45.00
|
|
3245-1
| Lid for Instrument Tray, SS, 9 x 5"
| each
| 30.00
|
|
3246
| Instrument Tray, SS, 10 x 6 x 2"
| each
| 50.00
|
|
3246-1
| Lid for Instrument Tray, SS, 10 x 6"
| each
| 35.00
|
|
