SEM Supplies & Accessories Overview
Essential SEM Consumables for JEOL SEMs
Pelcotec™ CDMS-1T Traceable Magnification Standard

PELCO® Specimen Mounts & Holders
for the JEOL NeoScope™ Benchtop SEM




A wide range of PELCO® Sample Holders have been designed especially for use in the JEOL NeoScope™ Benchtop SEMs. These holders enable easy mounting of a wide variety of specimens for NeoScope™ SEM users. To use these sample holders, the standard stage adapter needs to be replaced by one of the NeoScope™ Stage Adapter Kits. There are two kits available: one that is compatible with the JCM-7000 (#15398-7000), and another that is compatible with the JCM-6000 and JCM-5000 (#15398).

The wide range of PELCO® Specimen Holders allows for investigation of a greater variety of specimens. Easy mounting of specimens make the NeoScope™ Benchtop SEM more productive and accessible to more applications. There are also adapters available to accommodate pin stubs mounts which are used in other scanning electron microscopes. Cylinder mounts with the M4 threaded holes fit directly on the adjustable height pillars. This enhanced versatility allows users of the NeoScope™ Benchtop SEM to share specimens mounts used on other SEM platforms.

We also offer standard 25 and 32mm JEOL cylinder mounts, which can be used on the sample holders supplied with the NeoScope™ Benchtop SEMs.

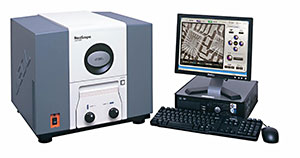

 JEOL NeoScope JCM-6000 Benchtop SEM, fits on small lab tabletop, also called benchtop SEM
JEOL NeoScope™ JCM-7000
JEOL NeoScope JCM-6000 Benchtop SEM, fits on small lab tabletop, also called benchtop SEM
JEOL NeoScope™ JCM-6000		 JEOL NeoScope JCM-5000 Benchtop SEM, fits on small lab tabletop, also called benchtop SEM
JEOL NeoScope™ JCM-5000


multi-calibration standard
NEW Multi-Calibration
Standard		 108 manual kit
NEW 108 Manual Sputter
Coater Desktop SEM Kit



JEOL NeoScope Benchtop SEM, Scanning Electron Microscope
The JCM-7000 Stage Adapter Kit #15398-7000 (left) includes two pillar lengths (right, #15398-S, 15398-L)

JEOL NeoScope Benchtop SEM, Scanning Electron Microscope
#15398-7000 shown with specimen
in Bulk Holder (#15308)

JEOL NeoScope Benchtop SEM, Scanning Electron MicroscopeJEOL NeoScope Benchtop SEM, Scanning Electron Microscope

The #15398-7000 kit includes a M6 adapter
to use with optional threaded rods
(#15373-2, 15365-2, 15374-2)

JEOL JCM-7000 NeoScope™ Stage Adapter Kit

The JCM-7000 NeoScope™ Benchtop SEM Adapter Kit includes two different length pillars (23 and 38.1mm) whose tops are fitted with M4 screws. Any of the M4 threaded sample holders or stubs (if dimensions are compatible with SEM) can be attached to these pillars. The height of the sample, plus holder, above the stage adapter should not exceed 50mm. Therefore, the choice of pillar length would depend on sample height, with shorter samples needing the longer pillar and taller samples the shorter pillar. The pillars go into the stage adapter and are held by a set screw so that the height can be adjusted. A height gauge is also included with the kit to verify the sample is at the correct height. A separate M6 adapter is included so that the stage adapter can be used with the optional threaded rods, #15373-2, 15365-2, and 15374-2, for further versatility.

JEOL JCM-7000 NeoScope™ Stage Adapter Kit Technical Notes (156KB PDF)

Prod # Description Unit Price Order / Quote
15398-7000 JEOL JCM-7000 NeoScope™ Stage Adapter Kit, includes two different length pillars, threaded rod adapter, and height gauge. each $335.00
Qty:
15373-2 Short 12mm Height Threaded Pillar each 46.75
Qty:
15365-2 Medium 18mm Height Threaded Pillar each 46.75
Qty:
15374-2 Long 25mm Height Threaded Pillar each 46.75
Qty:
15373-22 Replacement M6 Locking Nut, Aluminum each 16.50
Qty:
15398-S Replacement Short 23mm Pillar each 26.50
Qty:
15398-L Replacement Long 38mm Pillar each 26.50
Qty:


JEOL NeoScope Benchtop SEM, Scanning Electron Microscope
JCM-5000 and JCM-6000
Stage Adapter #15398

JEOL NeoScope Benchtop SEM, Scanning Electron Microscope
#15398 shown with specimen
in Micro Vise Holder (#15340-4)

JEOL JCM-5000 & JCM-6000 NeoScope™ Stage Adapter Kit

The JCM-5000 and JCM-6000 NeoScope™ Benchtop SEM Adapter Kit needs to be fitted on the NeoScope™ specimen stage to enable using the PELCO® specimen holders. The adjustable height pillars allow for easy height adjustment needed for the JCM-5000 and JCM-6000 NeoScope™ SEMs. The top of the adjustable height pillar is fitted with an M4 screw, so any holder or mount with an M4 threaded hole can be mounted as long as the total height of the stage adapter, pillar, specimen holder and sample does not exceed a total height of 50mm. Just make sure the top of the specimen is level with the top of the height gauge supplied with the stage adapter kit and the specimen will fit into the NeoScope™ SEM.

JEOL JCM-5000 & JCM-6000 NeoScope™ Stage Adapter Kit Technical Notes (156KB PDF)

Prod # Description Unit Price Order / Quote
15398 JEOL JCM-5000 & JCM-6000 NeoScope™ Stage Adapter Kit, includes base plate adapter, 18mm and 25mm adjustable height pillars, locking nut, and height gauge. each $137.50
Qty:
15398-10 Replacement NeoScope™ Stage Base Adapter plate. each 93.50
Qty:
15373-2 Short 12mm Height Threaded Pillar each 46.75
Qty:
15365-2 Medium 18mm Height Threaded Pillar each 46.75
Qty:
15374-2 Long 25mm Height Threaded Pillar each 46.75
Qty:
15373-22 Replacement M6 Locking Nut, Aluminum each 16.50
Qty:




Specimen Holders for the NeoScope™ Benchtop SEM

Requires NeoScope™ Stage Adapter Kit #15398-7000 for JCM-7000 or #15398 for JCM-5000 /6000
Hitachi SEM Adjustable Profile Holder Hitachi SEM Adjustable Profile Holder with specimen
Hitachi SEM Adjustable Profile Holder, bottomBottom View

Adjustable Profile Holder

Designed to adjust the exact angle for cross sections made from wafers. Maximum specimen thickness 3.2mm (1/8"). Material: machined aluminum with brass and stainless steel Allen set screw. Allen wrench included.

Screws used are 4-40 x 1/2 socket head cap screw, stainless steel and 10-32 x 3/16 set screw, brass.

Prod # Description Unit Price Order / Quote
15356-4 Hitachi Adjustable Profile Holder, M4 each $132.00
Qty:
Compact Variable Tilt SEM Mount

Compact Variable Tilt Mount

This Compact Variable Tilt Specimen Mount allows for easy mounting and tilting small samples from 0° - 90° and SEM investigation with small working distances. Markings for 30°, 45°, 70° and 90°.  Table size is 11 x 14mm (0.46" x 0.55"). Overall size is 14 x 14.3 x 14.5mm (0.55" x 0.56" x 0.57"). Made of aluminum with stainless steel screw. Allen wrench included.

Screw used is M2 x 12mm, socket cap head screw, stainless steel.

Prod # Description Unit Price Order / Quote
15439 Compact Variable Tilt Mount, M4 each $64.35
Qty:

Variable Tilt Specimen Holder

Variable Tilt Specimen Holder for Pin Mounts

Accommodates specimens pin stubs up to 18mm (.7") diameter or with a size up to 26 x 20mm. Tilts 0 - 90° with 10° markings. Additional markings for 30°, 45°, and 70°. Tilt table size is 26 x 20mm, overall size is 33 x 20 x 19mm H. Made of aluminum with stainless steel screws. Allen wrench included.

Screws used are M2 x 6mm, socket cap head screw, stainless steel and M2 x 3mm, set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15450-4 Variable Tilt Specimen Holder, M4 each $324.50
Qty:

45° Pre-Tilt Holder for Hitachi Mounts and Pin Stubs
top and bottom 		45° Pre-Tilt Holder for Hitachi Mounts and Pin Stubs

Accepts 15mm M4 mounts on pin with M4 thread. Pin can be rotated and fixed for optimum position. When the pin with M4 thread is removed, this holder also accepts a standard 12.7mm (1/2") pin stub with 3.2mm (1/8") pin. Material: machined aluminum with stainless steel Allen set screw. Allen wrench included.

Screw used is M3 x 3mm Set, SS

Prod # Description Unit Price Order / Quote
15428-45 45° Pre-Tilt Holder, M4 each $52.25
Qty:
Micro Vise Holder

Micro Vise Holder

Holds a variety of specimens. The maximum gap is 11mm (7/16"). The jaws are 25.4mm (1") wide. Made of aluminum with stainless steel screw. Allen wrench included.

Screws used are 6-32 x 3/4 vented socket cap head screw, stainless steel and 6-32 x 5/16 flat head screw, stainless steel.

Prod # Description Unit Price Order / Quote
15340-4 Micro Vise Holder, M4 each $126.50
Qty:

Small Springloaded Vise Clamp
closed position with pushrod in place

Small Springloaded Vise Clamp
holding specimen in place with pushrod removed

Small Springloaded Vise Clamp

Small Springloaded vise clamp for samples up to 12.7mm (1/2"). The jaws are 25mm (1") wide. Jaws also accommodate 1/16" x 1/2" stainless steel pins for more awkward shaped samples. 4 pins are included. Removable pushrod for easy loading is provided. Material: machined aluminum with stainless steel pins and springs. Overall size w/o pushrod 30 x 25 x 12.5mm (1.18" x 1" x ½").

Technical Notes, Small Springloaded Vise Clamp (276KB PDF)

Screw used is 2-56 x 1/8 cup point set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15341-4 Small Springloaded Vise Clamp, M4 each $211.75
Qty:
15341-20 Replacement Pins for Vise Clamp, 1/2" long pkg/10 35.75
Qty:

Thin Specimen Split Mount Holder Thin Specimen Split Mount Holder with specimen
shown with silicon chip on right
Thin Specimen Split Mount Holder bottom
bottom

Thin Specimen Split Mount Holder

Simple but effective design to hold wafers and thin samples up to 3.2mm (1/8"). 15mm dia x 10mm H. Made of aluminum with stainless steel allen screws. Allen wrench included.

Screw used is 2-56 x 1/4 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15335-4 Thin Specimen Split Mount Holder, M4 each $26.40
Qty:

tube needle clamp holder

Tube/Needle Clamp

A small tube, needle or wire clamp based on a standard Ø15x10mm cylinder mount with M4 thread. Ideal for examining wire cross sections or needle tips. Holds wires, tubes and needles up to Ø2mm (0.008"); hole is 5mm (0.20") deep. Material: vacuum grade aluminum with a stainless steel set screw. Allen wrench included.

Screw used is 2-56 x 1/8 cup point set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15490 Tube/Needle Clamp, Ø15 x 10mm, M4 each $25.85
Qty:

Hitachi Set Screw Vise
Top and Bottom

Small Set Screw Vise

Small set screw vise with an open slot of 4mm (0.157") wide and 5mm (0.197") deep. Ø15 x 12mm x M4. Material: machined aluminum with stainless steel allen set screw. Allen wrench included.

Screw used is M3 x 6mm set screw, stainless steel.

Made in USA
Prod # Description Unit Price Order / Quote
16335 Small Set Screw Vise, M4, Ø15 x 12mm H, M4 each $24.15
Qty:

Large Set Screw Vise sem specimen holder

Large Set Screw Vise

Set screw vise with an open slot of 10mm (.394") wide x 5mm (0.197") deep. ø25mm (1") x 10mm (0.394") high. Material: machined aluminum with stainless steel set screw. Allen wrench included.

Screws used are M3 x 6mm, flat head set screw, stainless steel and M3 x 8mm, flat head set screw, stainless steel.

Prod # Description Unit Price Order / Quote
16371 Large Set Screw Vise, Ø25x10mm H, M4 each $43.90
Qty:

Double Slotted Mini Vise SEM Cylinder Mount
Top and Bottom

Double Slotted Mini Vise

Double slotted set screw vise with 2 ea. 1mm wide x 3mm deep slots to clamp thin specimens or cross sections. Simple but effective design to hold wafers and thin samples up to 1mm (.039") thick. 15mm dia x 6mm H. Made of aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M2 x 3mm, Set, Stainless Steel

Prod # Description Unit Price Order / Quote
16341 Double Slotted Set Screw Vise, M4, Ø15 x 6mm H each $23.55
Qty:

Large Double Slotted Vise

Large Double Slotted Vise

Large Double Slotted Set Screw Vise with 2 ea. 2.5mm by 5mm deep slots. Dimensions ø25x10 mm (1 x 0.4"). Clamp thin specimens and cross sections without the need for tape of conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M3 x 6mm, flat head set screw, stainless steel.

Prod # Description Unit Price Order / Quote
16372 Large Double Slotted Set Screw Vise, Ø25mm x 10mm H, M4 each $32.80
Qty:

SEM Single Pin Stub Holder SEM Single Pin Stub Holder with Pin Stub
shown with pin stub on right
Single Pin Stub Holder, bottom
15363-1

Single Pin Stub Holders

For holding and viewing SEM mounts with the standard 3.2mm pin. Made of aluminum, includes a pin locking screw. Two different heights are available: 10, 15mm. Allen wrench included.

Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
15363-1 Single Pin Stub Holder Ø15x10mm H each $27.50
Qty:
15363-2 Single Pin Stub Holder Ø15x15mm H each 24.75
Qty:

Multi Holder for 4 Pin Stubs

Multi Holder for 4 Pin Stubs

Accommodates up to four standard 12.7mm (1/2") pin stubs with 3.2mm (1/8) pin. Made of aluminum with stainless steel set screws. Allen wrench included.

Holder size is Ø31.8 x 11.25mm.

Screw used is 6-32 x 1/8 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15310-4 Multi Holder for 4 Pin Stubs, M4 each $53.90
Qty:

16142-25
4 Pin Holder, 25mm Diameter
(#16142-25)

16142-25
6 Pin Holder, 32mm Diameter
(#16142-32)

16142-25P
Ø9.6mm Small Pin Stub
(#16142)

NEW Multi Holder for Smaller Diameter Pin Stubs

The 25mm diameter holder (#16142-25) can accommodate up to four Small Diameter Pin Stubs, and the larger 32mm diameter (#16142-32) holder can accommodate up to six. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Shown with and without Small Pins Stubs (Product #16142 Special Small Head Ø9.6mm, pin 8mm length x 3.2mm diameter), which are sold separately.

#16142-25P Dimensions are Ø25 x 10mm (0.98 x 0.39").
#16142-32P Dimensions are Ø32 x 10mm (1.26 x 0.39").

Material: machined aluminum with stainless steel allen set screws. Allen wrench included.

Screw used is 6-32 x 1/8 Hex Set, SS

Prod # Description Unit Price Order / Quote
16142-25 Multi Holder for 4 x Small Ø9.6mm Pin Stubs, M4 each $58.75
Qty:
16142-32 Multi Holder for 6 x Small Ø9.6mm Pin Stubs, M4 each 88.50
Qty:

Prod # Description Unit Price Order / Quote
16142 Special Small Pin Stub, aluminum, grooved edge pkg/50 $92.50
Qty:
Specimen holder for cylinders up to 22mm

Cylinder Holder, 22mm (7/8")

Specimen holder for cylinders up to 22mm (7/8") diameter. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screw used is M3 x 6mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15402 Specimen Holder for Cylinders up to 22mm (7/8"), M4 each $42.90
Qty:


Metallographic Mount Holder, 1"or 25mm Metallographic Mount Holder, 1"or 25mm, with specimen

Metallographic Mount Holder, 1" or 25mm

Specimen holder for 1" or 25mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screw used is M3 x 6mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15403 Metallographic Mount Holder, 1" or 25mm, M4 each $50.60
Qty:

Metallographic Mount Holder, 1-1/4"or 32mm Metallographic Mount Holder, 1-1/4"or 32mm, with specimen

Metallographic Mount Holder, 1-1/4" or 30-32mm

Specimen holder for 1-1/4" or 30-32mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw. stainless steel.

Prod # Description Unit Price Order / Quote
15404 Metallographic Mount Holder, 1-1/4" or 30-32mm, M4 each $63.80
Qty:

Metallographic Mount Holder, 1-1/2"or 38mmMetallographic Mount Holder, 1-1/2"or 38mm, with specimen

Metallographic Mount Holder, 1-1/2" or 38-40mm

Specimen holder for 1-1/2" or 38-40mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15405 Metallographic Mount Holder, 1-1/2" or 38-40mm, M4 each $74.80
Qty:

Metallographic Mount Holder, 2"or 51mm

Metallographic Mount Holder, 2" or 50mm

Specimen holder for 2" or 50mm metallographic mounts. Made of aluminum with stainless steel allen screw. Allen wrench included.

Screws used are M3 x 6mm socket head cap screw, stainless steel and M3 x 12mm socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15406 Metallographic Mount Holder, 2" or 50mm, M4 each $81.40
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1" and 25mm

Specimen holder for 1" and 25mm metallographic mounts and other cylindrical 1” diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a UHV-EL Reference Standard for EDS/WDS (not included).

Prod # Description Unit Price Order / Quote
15603 Low Profile Metallurgical Mount Holder, 1" and 25mm diameter, M4 each $50.60
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1-1/4" and 30mm

Specimen holder for 1-1/4" and 30mm metallographic mounts and other cylindrical 1-1/4" diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included.

Prod # Description Unit Price Order / Quote
15604 Low Profile Metallographic Mount Holder, 1-1/4" and 30mm diameter, M4 each $61.60
Qty:

Low Profile

Metallographic Mount Holder, 2"or 51mm Metallographic Mount Holder, 2"or 51mm

Low Profile Metallographic Mount Holder, 1-1/2" and 40mm

Specimen holder for 1-1/2" and 40mm metallographic mounts and other cylindrical 1-1/2" diameter samples. Holder height is 0.33" (8.4mm) with a recessed area 0.15" (3.8mm) deep. Open sides for easier sample removal. Made of machined aluminum with two stainless steel Allen screws (M3 x 6mm and M3 x 12mm) and Allen wrench included. Also shown on right holding a specimen (not included).

Prod # Description Unit Price Order / Quote
15605 Low Profile Metallographic Mount Holder, 1-1/2" and 40mm diameter, M4 each $72.60
Qty:

Bulk Specimen Holder, with specimen
shown holding specimen and shorter screws
with allen wrench
Bulk Specimen Holder, bottom
bottom

Round Bulk Specimen Holder

The bulk specimen holder holds irregular and round specimens up to a diameter of 32mm (1-1/4"). Made of aluminum with two sets of stainless steel allen screws. Allen wrench included. Holder size is Ø40 x 13mm H.

Screws used are M3 x 10mm set screw, stainless steel and M3 x 20mm set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15308-4 Bulk Specimen Holder, M4 each $93.50
Qty:

Straight Bulk Specimen Holder
holding specimen and bottom

Straight Bulk Specimen Holder

Versatile specimen holder to clamp irregular or long shaped specimens. Opening is 15.9W x 25.4L x 9.5mm D (5/8" x 1" x 3/8"). Made of aluminum with stainless steel allen screws. Allen wrench included.

Screw used is 6-32 x 1/2 hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15320-4 Straight Bulk Specimen Holder, M4 each $90.20
Qty:

Made in USA
Multi Purpose Specimen Holder
holding specimen and bottom

Multipurpose Specimen Holder

Accepts up to 25.4mm (1") diameter specimens. The slotted design also allows for clamping elongated or rod shaped specimens. Made of aluminum with stainless steel allen screw. Allen wrench included. Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397).

Screw used is 6-32 x 1/2 hex, set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15305-4 Multipurpose Specimen Holder, M4 each $68.20
Qty:
Made in USA
45°/90° Combination Holder, holding specimen 45°/90° Combination Holder, holding specimen
shown holding silicon chip and pin stub
45°/90° Combination Holder, bottom
bottom

45°/90° Combination Holder

Combined specimen holder for 90° cross sections of wafers or thin samples up to 6.35mm (1/4") and a pin stub at 45°. Made of aluminum with stainless steel set screws. Allen wrench included.

Screws used are 6-32 x 1/4 set screw, 316 stainless steel and 6-32 x 3/8 set screw, 316 stainless steel.

Prod # Description Unit Price Order / Quote
15358-4 45° / 90° Combination Holder, M4 each $103.40
Qty:

Multi Holder for 5 JEOL Stubs
holding specimen mounts and bottom

Multi Holder for 5 JEOL Stubs

Holds up to five 9.5mm JEOL cylinder mounts. Made of aluminum with stainless steel set screws. Allen wrench included.

Size is Ø31.5 x 10mm and fits in standard 32mm mount holder

Screw used is 6-32 x 1/8, hex set screw, stainless steel.

Prod # Description Unit Price Order / Quote
15315-4 Multi Specimen Holder for JEOL Stubs, M4 each $68.20
Qty:

JEOL or ISI/ABT/Topcon mounts to Hitachi M4

JEOL or ISI/ABT/Topcon mounts to Hitachi M4 mount

Small cylinder mount adapter accommodates JEOL or ISI/ABT/Topcon cylinder mounts up to 15mm diameter. Enables the use of Ø9.5 and Ø12.2mm JEOL or Ø15mm ISI/ABT/Topcon cylinder mounts on Hitachi M4. Made from aluminum with stainless steel screw, Allen wrench included.

Screws used are M3 x 6mm, socket head cap screw, stainless steel and M3 x 10mm, socket head cap screw, stainless steel.

Prod # Description Unit Price Order / Quote
15401 Adapter Holder for Cylinder Mounts, M4 each $39.60
Qty:

Mini SEMclamp specimen holder

PELCO Mini SEMClamp™ Ø15 x 10mm

Mini SEMclamp™ on a Ø15 x 10mm M4 cylinder mount. Convenient for holding flat or thin specimens such as Si chips, wires, foil and small tubes. Material: vacuum grade aluminum with brass screw.

Screw used is M2 x 3mm, pan head screw, brass.

Prod # Description Unit Price Order / Quote
15494 PELCO Mini SEMClamp™ Ø15 x 10mm, M4 each $23.75
Qty:
Small PELCO SEMClamp™ 15 x 10mm

PELCO SEMClamp™
shown holding a wire

Small PELCO SEMClamp™ 15 x 10mm

PELCO SEMClamp™ holder 15mm (0.6") long with 10mm (0.4") wide clamping area. Convenient holder for clamping down samples up to a thickness of 7mm under the clamping strips.

Overall dimensions 23 x 20 x 9mm (0.9" x 0.78" x 0.35"). Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan head screw, brass.

Prod # Description Unit Price Order / Quote
15347-4 Small PELCO SEMClamp™ 15 x 10mm, M4 each $94.60
Qty:

Medium PELCO SEMClamp™ 25 x 15mm

Medium PELCO SEMClamp™ 25 x 15mm

PELCO SEMClamp™ holder 25mm (1") long with 15mm (0.6") wide clamping area. Convenient holder for clamping down samples up to a thickness of 7mm under the clamping strips.

Overall dimensions 33 x 25 x 9mm (1.3" x 1" x 0.35"). Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan heads scew, brass.

Prod # Description Unit Price Order / Quote
15348-4 Medium PELCO SEMClamp™ 25 x 15mm, M4 each $104.50
Qty:



Recessed PELCO® SEMClamp™ 15 x 25mm

Recessed PELCO SEMClamp™ 25 x 15mm

5mm recess allows for background free imaging and no contact with sample surface in imaging area. Clamping area is 25mm (1") long and 15mm (0.6") wide. Maximum thickness 7mm under the clamping strips. Overall dimensions 33 x 25 x 11mm (1.3" x 1" x 0.43"). Material: machined aluminum with brass screws.

Screws used are M2 x 10mm, pan head screw, brass and M2 x 6mm, pan head screw, brass.

Prod # Description Unit Price Order / Quote
15346-4 Recessed PELCO SEMClamp™ 25 x 15mm, M4 each $105.60
Qty:


Made in USA
PELCO SEMClip™ Ø15mm Cylinder Mount, M4

18mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one clip for Hitachi SEMs PELCO SEMClip™ 18mmxM4 SEMClip back view back view

Prod # Description Unit Price Order / Quote
16324-10 PELCO SEMClip™, Ø15 x 6mm x M4 Cylinder Mount, 1 clip each $20.75
Qty:


Made in USA
PELCO SEMClip™ Ø25mm Cylinder Mount, M4

25mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips for Hitachi 25mmxM4 PELCO SEMClip™ back viewback view

Prod # Description Unit Price Order / Quote
16327-10 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 1 clip each $21.75
Qty:
16327-20 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 2 clips each 31.65
Qty:
16327-30 PELCO SEMClip™, Ø25 x 6mm x M4 Cylinder Mount, 3 clips each 41.25
Qty:


Made in USA
PELCO SEMClip™ Ø32mm Cylinder Mount, M4

32mmxM4 PELCO SEMClip™ Specimen Cylinder Mount with one, two and three clips for Hitachi 32mmxM4 PELCO SEMClip™ back view back view

Prod # Description Unit Price Order / Quote
16326-10 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 1 clip each $21.75
Qty:
16326-20 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 2 clips each 31.65
Qty:
16326-30 PELCO SEMClip™, Ø32 x 10mm x M4 Cylinder Mount, 3 clips each 41.50
Qty:


Made in USA
PELCO SEMClip™ Ø25mm Cylinder Mount, M4, 2 x 90°

PELCO SEMClip™, 25x16mm x M4 Cylinder Mount, Double 90°, 2 clips

Prod # Description Unit Price Order / Quote
16356-20 PELCO SEMClip™, 25 x 16mm x M4 Cylinder Mount, Double 90°, 2 clips each $37.35
Qty:


Made in USA
PELCO SEMClip™ 12 x 12mm Mount, M4, 4 x 90°

PELCO SEMClip™, 12x12x14mm H, M4, 4 clips

Prod # Description Unit Price Order / Quote
16241 PELCO SEMClip™, 12 x 12 x 14mm H, M4, 4 clips each $62.15
Qty:


Made in USA
PELCO SEMClip™ 14 x 14mm Mount, M4, Variable Tilt 0-90°

PELCO SEMClip

Prod # Description Unit Price Order / Quote
15439-10 PELCO SEMClip™ on compact variable tilt mount 0-90°, table size 11 x 14mm, Overall size is 14 x 14.3 x 14.5mm, M4 each $81.95
Qty:


Made in USA
PELCO SEMClip™ Ø25mm Mount, M4, 90° and 45°

PELCO SEMClip™, 25x16mm x M4 Cylinder Mount, Double 45/90°, 2 clips

Prod # Description Unit Price Order / Quote
16357-20 PELCO SEMClip™, Ø25 x 16mm x M4 Cylinder Mount, 45/90°, 2 clips each $38.45
Qty:


Made in USA

PELCO SEMClip™ Replacement Clips and Screws
PELCO SEMClip™ Replacement Clips and Screws PELCO SEMClip™ Clips are made from a spring grade beryllium-copper alloy. Thickness of clip is 0.25mm (0.01"), overall length is 12.7mm (1/2"), width at tip is 1.6mm (1/16"), hole diameter is 2.2mm (0.087").

Prod # Description Unit Price Order / Quote
16399 PELCO SEMClip™ Clips pkg/10 $82.50
Qty:
16399-10 PELCO SEMClip™ Screws, Brass, M2 x 3mm length pkg/10 20.65
Qty:


SEM Mounts fitting the NeoScope™ Stage Adapter Kit

Requires NeoScope™ Stage Adapter Kit #15398-7000 for JCM-7000 or #15398 for JCM-5000 /6000
hitachi sem specimen mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16324 Specimen Mount, M4, Ø15 x 6mm pkg/10 $13.00
Qty:
pkg/50 62.50
Qty:
pkg/100 120.00
Qty:
15mm Novelx mySEM Specimen Mount dimensions 15mm Novelx mySEM Specimen Mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16322 Specimen Mount, Ø15 x 10mm x M4 pkg/10 $19.50
Qty:
pkg/50 87.50
Qty:
pkg/100 160.00
Qty:
sem specimen mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16327 Specimen Mount, Ø25 x 6mm x M4 pkg/10 $33.00
Qty:
pkg/50 157.50
Qty:
pkg/100 295.00
Qty:
M4 thread hitachi specimen mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16323 Specimen Mount, Ø25 x 10mm x M4 pkg/10 $23.50
Qty:
pkg/50 100.00
Qty:
M4 thread sem specimen mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16325 Specimen Mount, Ø32 x 6mm x M4 pkg/10 $32.50
Qty:
pkg/50 140.00
Qty:
32 x 10mm SEM Specimen Mount dimensions 32 x 10mm SEM Specimen Mount

Prod # Description Unit Price Order / Quote
Cylinder, M4, Aluminum
16326 Specimen Mount, Ø32 x 10mm x M4 pkg/10 $34.50
Qty:
pkg/50 157.50
Qty:




Mounts with Engraved and Numbered Divisions

Made in USA
15 x 6mm x M4 cylinder mount with 3 divisions

Prod # Description Unit Qty Price Order / Quote
16361 Ø15 x 6mm x M4 cylinder mount with 3 divisions each 1-9 $6.40
Qty:
10+ 5.85
25 x 6mm x M4 cylinder mount with 9 divisions

Prod # Description Unit Qty Price Order / Quote
16365 Ø25 x 6mm x M4 cylinder mount with 9 divisions each 1-9 $7.45
Qty:
10+ 6.90
32 x 6mm x M4 cylinder mount with 12 divisions

Prod # Description Unit Qty Price Order / Quote
16368 Ø32 x 6mm x M4 cylinder mount with 12 divisions each 1-9 $9.00
Qty:
10+ 8.35




JEOL 25 and 32mm Cylinder Mounts & SEMClips™

(for standard NeoScope™ sample holders)

Prod # Description Unit Price Order / Quote
JEOL, Aluminum
16150 Specimen Mount, Ø25 x 5mm pkg/10 $21.00
Qty:
pkg/50 97.50
Qty:

Prod # Description Unit Price Order / Quote
JEOL, Aluminum
16151 Specimen Mount, Ø25 x 8mm pkg/10 $22.00
Qty:
pkg/50 100.00
Qty:
specimen mount dimensions specimen mount cylindrical

Prod # Description Unit Price Order / Quote
JEOL, Aluminum
16152 Specimen Mount, Ø25 x 12.7mm pkg/10 $25.50
Qty:
pkg/50 112.50
Qty:
specimen mount drawing sem cylindrical specimen mount

Prod # Description Unit Price Order / Quote
JEOL, Aluminum
16156 Specimen Mount, Ø25 x 19.7mm pkg/10 $26.50
Qty:
pkg/50 117.50
Qty:
JEOL Specimen Mount JEOL Specimen Mount

Prod # Description Unit Price Order / Quote
JEOL, Aluminum
16217 Specimen Mount, Ø32 x 5mm pkg/10 $25.50
Qty:
pkg/50 105.00
Qty:
JEOL sem mount 32mm JEOL sem cylinder specimen mount

Prod # Description Unit Price Order / Quote
JEOL, Aluminum
16216 Specimen Mount, Ø32 x 10mm pkg/10 $32.00
Qty:
pkg/50 142.50
Qty:
cylinder mount drawing jeol cylindrical specimen mount

Prod # Description Unit Price Order / Quote
JEOL, Aluminum
16215 Specimen Mount, Ø32 x 20mm pkg/10 $32.50
Qty:
pkg/50 150.00
Qty:
pkg/100 280.00
Qty:




25mm SEMClip Specimen Cylinder Mount with one, two and three clips

Prod # Description Unit Price Order / Quote
16151-10 PELCO SEMClip™, Ø25 x 8mm Cylinder Mount, 1 clip each $21.45
Qty:
16151-20 PELCO SEMClip™, Ø25 x 8mm Cylinder Mount, 2 clips each 30.80
Qty:
16151-30 PELCO SEMClip™, Ø25 x 8mm Cylinder Mount, 3 clips each 40.15
Qty:


SEM Cylinder Mount 25x16mm Double 90° and two specimen clips

Prod # Description Unit Price Order / Quote
16358-20 PELCO SEMClip™ Cylinder Mount, Ø25 x 16mm Double 90°, 2 clips each $37.35
Qty:


Made in USA
PELCO SEMClip™ Ø32 x 12mm JEOL Cylinder Mount, Double 90°

PELCO SEMClip Mount

Prod # Description Unit Price Order / Quote
16378-20 PELCO SEMClip™, Ø32 x 12mm JEOL Cylinder Mount, Double 90°, 2 Clips each $43.90
Qty:





601
Top-down view showing
labeled standards

601
Side view showing
removable pin

NEW Multi Calibration Standard for Desktop SEM Users

Combined standard for resolution, magnification calibration, and EDS performance monitoring. Standards have engraved labels and are mounted in plane for ease of use. The 25mm diameter by 5mm tall aluminum cylinder mount has a M4 threaded base that comes with a removable pin adapter (#15319) allowing the standard to be used on systems that utilize pin, cylinder, or M4 threaded mounts.

Multi Calibration Standard Includes

Two SEM Resolution Test Specimens:

CDMS-XY-1T
CDMS-XY-1T
tin spheres on carbon
Tin Spheres
on Carbon		 gold on carbon
Gold on Carbon
Critical Dimension Magnification Standard: Elements to assist in monitoring the performance of EDS Systems:
  • PELCO® 400 Mesh Copper Grid to check spectral calibration
  • Manganese 88%, nickel 12% alloy to measure full width at half max (FWHM) detector resolution

Prod # Description Unit Price Order / Quote
601 Multi Calibration Standard for Desktop SEM users, M4 threaded base with removable pin each $655.00
Qty:
