Ovens, Gravity Convection, Laboratory and Vacuum Ovens

Digital, Low Temperature
Ovens / Incubators

Our laboratory ovens are available in multiple sizes and styles. Choose from a series of utility, gravity or vacuum, and cleanroom types of ovens. These ovens include multiple features including high- temperature, vacuum and microprocessor controls. These laboratory ovens can be used for sample drying, baking, annealing, conditioning, sterilizing, evaporating and dehydrating, and other general laboratory work. Operating temperatures range up to 235°C (455°F). These ovens are cost-effective, rugged and versatile for both manufacturing and laboratory requirements.

Gravity Convection Oven

Energy efficient, low wattage double-wall insulated construction; impregnated fiberglass insulation, automatic bimetallic and hydraulic thermostat controls, sturdy, lightweight. Supplied with thermometer and holder. Two removable nickel plated metal shelves are included. Steel exterior, finished in a beige colored baked enamel with the inside chamber of aluminized iron. Inner chamber is insulated from the outer chamber with 2.5cm (1") of impregnated fiberglass.

Designed for continuous temperature uniformity, the even air circulation will provide maximum temperature within one-half hour of start-up time. Intake/exhaust vents, door latch and cool handle. Bimetallic thermostat, neon pilot light and on/off switch.

Temperature Range:	100°C to 235°C ±10°C (212°F to 455°F ±18F)
Chamber Dimensions:	28.6 W x 24.8 D x 23.5 H cm (11-1/4 x 9-3/4 x 9-1/4")
Chamber Capacity:	0.6 cu. ft. (17 L)
Overall Dimensions:	34.3 W x 29.2 D x 27 H cm (13-1/2 x 11-1/2 x 10-5/8")
Volts, AC:	115VAC
Watts:	660
Weight:	11.4kg Net (unpacked), 13.6kg Gross (packed) (25 lbs. Net, 30 lbs. Gross)

Prod #

Description

Unit

Price

Order / Quote

137

Oven, Gravity Convection, 115VAC, 600W

each

$2553.75

Qty:

Vacuum Ovens

Vacuum Ovens can be used for process drying under vacuum or standard atmospheric conditions. They are designed to operate with reduced pressures and/or inert atmospheres. These versatile ovens are equipped with a high reliability hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C (at 100°C; 25" Hg) and built-in over temperature protection system. These vacuum ovens feature independent vacuum and purge needle valves. These ovens feature 3" of glass wool insulation, a silicone door gasket and a polycarbonate safety shield. The vacuum level gauge displays 0 to 30" Hg. The vacuum and air lines are constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.

Recommended Vacuum Pumping Systems

NOT FOR USE WITH FLAMMABLE SOLVENTS, VAPORS OR GASES

Standard Features

Temperatures to 220°C (428°F)
Radiant wall heating provides uniform temperature and total use of work space
Vacuum gauge, control and release valves
Full-view tempered safety glass window
304 stainless steel interior
Powder coated Heavy gauge steel exterior
Two (2) removable, solid aluminum shelves
Secure latch and silicone rubber door gasket provide tight seal
0.25" (6mm) diameter vacuum fitting
3" of glass wool insulation insures minimum heat loss
3-wire line cord
2 year limited warranty

Model Number	Chamber Dimensions (W x H x D) Inches	Overall Dimensions (W x H x D) Inches	Controller Type	Chamber Volume	Volts	Amps	Max Temp
1384-1	8 x 8 x 12	17 x 17.4 x 16	Hydraulic	0.44 cu. ft. / 12.5 L	120	5.00	220°C	428°F
1384-1-220	8 x 8 x 12	17 x 17.4 x 16	Hydraulic	0.44 cu. ft. / 12.5 L	220	2.50	220°C	428°F
1384-2	10 x 10 x 12	19.8 x 16.25 x 16	Hydraulic	0.7 cu. ft. / 19.8 L	120	5.00	220°C	428°F
1384-2-220	10 x 10 x 12	19.8 x 16.25 x 16	Hydraulic	0.7 cu. ft. / 19.8 L	220	2.50	220°C	428°F
1384-3	14 x 14 x 20	25 x 22 x 25	Hydraulic	2.3 cu. ft. / 65.1 L	120	13.3	220°C	428°F
1384-3-220	14 x 14 x 20	25 x 22 x 25	Hydraulic	2.3 cu. ft. / 65.1 L	220	220	6.7	220°C	428°F

Prod #

Description

Unit

Price

Order / Quote

1384-1

Vacuum Oven, 0.44 cu.ft./12.5 L, 120V

each

P.O.R.

Qty:

1384-1-220

Vacuum Oven, 0.44 cu.ft./12.5 L, 220V

each

P.O.R.

Qty:

1384-2

Vacuum Oven, 0.7 cu. ft./19.8 L, 120V

each

P.O.R.

Qty:

1384-2-220

Vacuum Oven, 0.7 cu. ft./19.8 L, 220V

each

P.O.R.

Qty:

1384-3

Vacuum Oven, 2.3 cu. ft./65.1 L, 120V

each

P.O.R.

Qty:

1384-3-220

Vacuum Oven, 2.3 cu. ft./65.1 L, 220V

each

P.O.R.

Qty:

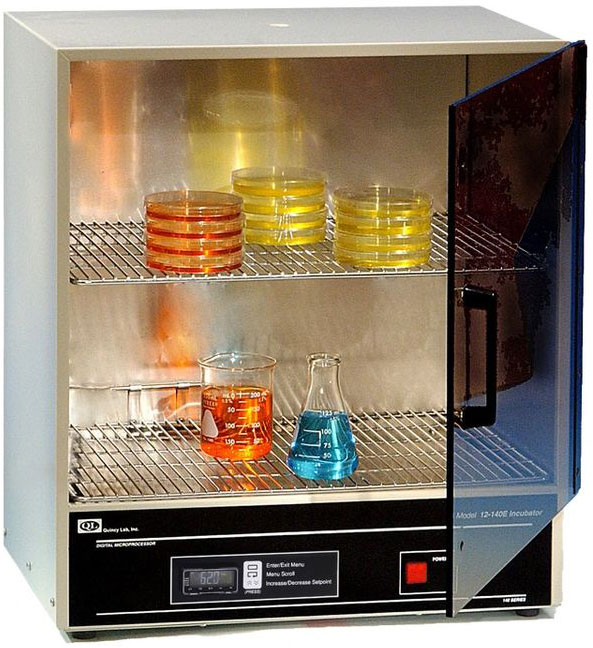

Low Temperature, Digital Oven / Incubator

Our digital control low temperature oven / incubator offers the ease of digital temperature setting and the stability of a full PID microprocessor that accurately maintains a temperature setting even in varying ambient or power supply conditions. Perfect for polymerizing embedding epoxies.

Features

Digital PID (proportional integral derivative) microprocessor
High grade aluminum interior.
Powder coated Cr steel exterior.
Resistive-tubular incoloy heating elements.
See-through, tinted, acrylic door
One fixed and one adjustable shelf*

Temperature Range:	Ambient +2°C to 62°C (143°F)
Chamber Dimensions:	45.7 x 40.6 x 30.5cm (18 x 16 x 12")
Chamber Capacity:	57L (2 CF)
Overall Dimensions:	48.3 x53.3 x 33.0cm (19 x 21 x 13")
Volts, AC:	115 VAC
Watts:	270
Temperature Accuracy:	+/- 0.5°C

1390

Low temperature Oven/Incubator, 115VAC

each

$1570.00

Qty:

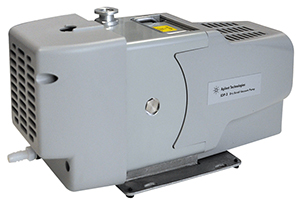

Pumping Systems for Vacuum Ovens

There are two vacuum pump kits available for the vacuum ovens:

VRI-2 Rotary Pump Kit 55

This pumping kit consist of the VRI-2 pump with a KF16 hose adapter, ¼” thick wall silicone hose and rotary pump exhaust filter. The achievable vacuum is in the 10-2 mbar range. Very cost effective solution offering fast pumping speed and good end vacuum. Available both in 115V and 230V.

891-31 SDS (93KB PDF)

92092-55

VRI-2 Pump Kit for Vacuum Ovens, 115V

each

$595.00

Qty:

92092-55-230
