PELCO BioWave® Pro+ Accessories & Consumables
Beakers & Vials
Microwave-assisted Immunostaining on Glass Slides

Microwave Processor
Accessories & Replacements


microwave capsule holder
Un-assembledmicrowave capsule holder
Assembled

PELCO® Microwave Capsule Holder with Lid

The improved PELCO® Microwave Capsule Holder has three design features that set it apart from the previous design.
  • "Stops" on the legs to keep the capsule base level during loading
  • A hole with a stop in the base to allow the 00 embedding capsule to be set in place easily
  • The new capture top that has a recess to keep the embedding capsule lid in place throughout the polymerization process in the microwave

Prod # Description Unit Price Order / Quote
36131-2 PELCO® Microwave Capsule Holder with Lid each $217.30
Qty:




Microwave Capsule Preparation Station

Capsule Preparation Station

This Preparation Station is a capsule loading platform to maintain cleanliness from epon liquid spillovers from the above Microwave Capsule Holder 36131-2. This pre-loading station avoids a potential situation of water contamination in the microwave polymerization procedure. The 36131-6 permits the technician/scientist to pre-load 00 capsules. Capsules are then transferred to 36131-2 for the polymerization step in the microwave.

Prod # Description Unit Price Order / Quote
36131-6 Capsule Preparation Station each $170.50
Qty:




flat bottom embedding capsules

Flat Bottom Capsules

For embedding specimens requiring flat or en-face orientation in capsule configuration. Inside dimensions are 00 size: 7.92mm dia x 18.87mm deep (0.312 x 0.743"). Polypropylene (up to 100°C). Outside diameter 9.6mm.

Prod # Description Unit Qty Price Order / Quote
133-P Flat Bottom Capsules, Polypropylene, 00, Microwave Transparent pk/100 1-4 $22.50
Qty:
5+ 20.79




microcentrifuge tube holder

PELCO® Microwave Microcentrifuge Tube Holders

Made from PTFE, the holder for microcentrifuge tubes is designed to hold 18 conventional 2ml polyethylene microcentrifuge tubes. Tubes shown not included.

These tube holders may be used in a water bath or on the PELCO ColdSpot® Pro during processing.

Prod # Description Unit Price Order / Quote
36134 PELCO® Microcentrifuge Tube (2ml) Holder for 18 tubes each $51.60
Qty:




macro tube holder

PELCO® Microwave Macrocentrifuge Tube Holders

The PTFE holder for 5ml macrocentrifuge tubes will hold 12 tubes. Tubes shown not included.

These tube holders may be used in a water bath or on the PELCO ColdSpot® Pro during processing.

Prod # Description Unit Price Order / Quote
36134-1 PELCO® Macrocentrifuge Tube (5ml) Holder for 12 tubes each $55.00
Qty:




microcentrifuge tubes

1.5ml Microcentrifuge Tubes, Clear

The 1.5ml microcentrifuge tubes are manufactured from polypropylene and able to be autoclaved. These tubes are also microwave transparent. The tubes feature a frosted label area for sample identification and volume graduations of 0.1, 0.5, 1.0 and 1.5ml. The microcentrifuge tubes have a snap cap for secure closure but are also syringe pierceable. These microcentrifuge tubes offer convenience and versatility for various utilizations in histology, immunology and scientific research.

MC-6600 Mini Centrifuge

Prod # Description Unit Price Order / Quote
20836 Microcentrifuge Tubes, 1.5ml, Clear, Polypropylene pkg/100 $7.00
Qty:
20838 Microcentrifuge Tubes, 1.5ml, Clear, Polypropylene pkg/500 17.60
Qty:




black 1.5ml Microcentrifuge Tubes

1.5ml Microcentrifuge Tubes, Black

The 1.5ml microcentrifuge tubes are composed of polypropylene and are completely autoclavable as well as microwave transparent. The opaque black provides protection for light sensitive samples. The microcentrifuge tubes offer a frosted label area for writing or moisture resistant labels. The tubes contain volume graduations of 0.1, 0.5, 1.0 and 1.5mls. The tight-fitting snap cap offers convenience and safety in storage as well as a syringe-pierceable alternative. These microcentrifuge tubes provide versatility and convenience in many facets of histology, immunology and scientific research.

MC-6600 Mini Centrifuge

Prod # Description Unit Price Order / Quote
20836-B Microcentrifuge Tubes, 1.5ml, Black, Polypropylene pkg/100 $9.00
Qty:




1.5ml microcentrifuge tubes, colored

1.5ml Microcentrifuge Tubes, Assorted Colors

These 1.5 ml microcentrifuge tubes in assorted colors consist of polypropylene, are microwave transparent and autoclavable. The frosted label provides are for specimen identification. The tubes are labeled in graduated volumes of 0.1, 0.5, 1.0 and 1.5 ml. The tight-fitting snap cap offers secure closure and syringe insertion ability. The assorted colors of the 1.5 ml microcentrifuge tubes provide assistance in organization and reference for multiple samples. These tubes offer versatility in specimen handling in histology, immunology and scientific research.

MC-6600 Mini Centrifuge

Prod # Description Unit Price Order / Quote
20840 Assorted Colors, Microcentrifuge Tubes pkg/500 $53.90
Qty:







5ml Snap Cap Macrocentrifuge Tubes, Assorted Colors

  • Provides convenience of 1.5 ml microcentrifuge tubes in a tube that holds larger volumes
  • Attached Snap Cap
  • Pierceable cap for needle or syringe
  • Dual graduation scales in increments of 0.5ml and 0.2ml
  • Temperature range of -86°C to +80°C
  • Seven colors available: natural, amber, blue, black, green, red, yellow, assorted
  • Polypropylene (PP)

Prod # Description Unit Price Order / Quote
12944-1 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, white natural pkg/200 $44.30
Qty:
12944-2 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, white amber pkg/200 50.80
Qty:
12944-3 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, blue blue pkg/200 50.50
Qty:
12944-4 NEW 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, white black pkg/200 50.76
Qty:
12944-5 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, white green pkg/200 42.25
Qty:
12944-6 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, red red pkg/200 50.76
Qty:
12944-7 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, white yellow pkg/200 42.25
Qty:
12944-8 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, assorted colors pkg/200 50.75
Qty:
12944-9 5ml Macrocentrifuge Tubes, PP, Attached Snap Cap, graduated, sterile pkg/200 58.25
Qty:




5ml Locking Macrocentrifuge Tubes, Natural

  • Locking Snap Cap preventing accidental opening
  • Suitable for centrifugation, boiling, incubation, freezing and sample storage
  • Optimally clear USP Class VI medical grade polypropylene (PP)
  • Manufactured in Class 100,000 clean room
  • Certified to be free from RNase, DNase,human DNA, pyrogens, PCT inhibitors and ATP
  • Tubes feature graduations, writing area, peirceable cap, are autoclavable and packaged in zip re-closable bags

Prod # Description Unit Price Order / Quote
12944 5ml Macrocentrifuge Tubes, PP, Attached Locking Snap Cap, graduated,
white natural 		pkg/100 $28.50
Qty:




NEW 5ml Screw Cap Macrocentrifuge Tubes

  • Single turn threaded caps seal easily and securely
  • Graduated in 0.5ml increments
  • Available sterile in bags or foam racks and non-sterile with tubes and caps packed separately
  • Temperature range of -86°C to 80°C
  • For low temperature sample storage, general laboratory uses, or boiling procedures
  • Polypropylene (PP) with polyethylene (PE) screw caps
  • Use with #1062 MagFuge® Centrifuge.

Prod # Description Unit Price Order / Quote
12944-10 5ml Macrocentrifuge Tubes, PP, Separated Red Screw Cap, 100/bag, 5 bags per case, white natural cs/500 $104.60
Qty:
12944-11 5ml Macrocentrifuge Tubes, PP, Sterile, Assembled Red Screw Cap, 50 per rack, 10 racks per case, white natural cs/500 132.00
Qty:
12944-12 5ml Macrocentrifuge Tubes, PP, Sterile, Assembled Red Screw Cap, 20 per bag, 10 bags per case, white natural cs/200 128.00
Qty:
12944-14 5ml Macrocentrifuge Tubes, PP, Sterile, Assembled Screw Cap, graduated, white black pkg/500 113.00
Qty:




Microwave Resin Polymerization System

Designed for resin polymerization using the 36131 or 36131-2 Capsule Holders in the PELCO BioWave® Microwave Tissue Processor

During microwave-assisted resin polymerization the microwave polymerization system is placed on the Microwave Polymerization Stand on the PELCO ColdSpot® Pro. The tray is filled with water to cover the 36131 or 36131-2 capsule holders. The insulator pad is placed on the surface of the water and the lid placed on the tray. There are two holes in the lid so that the temperature probe can be inserted on either side to monitor heating rates. This new system controls the rate of heating and the temperature maximum (100°C) without the loss of water during the polymerization process. Microwave wattage will control the heating rate which ensures a quality polymerization each run.

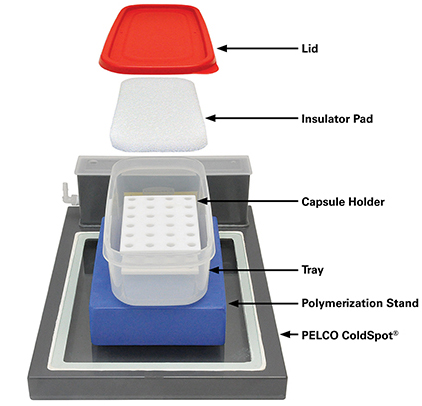

polymerization tray
Microwave Polymerization System
shown expanded, with the optional
PELCO® Microwave Capsule Holder (36131-2)

Prod # Description Unit Price Order / Quote
36133 Microwave Polymerization System, Includes Tray, Insulator Pad and Lid each $32.80
Qty:
36133-10 Replacement Insulator Pads, 1/2" thick pkg/3 14.20
Qty:


Microwave Polymerization Stand

The Polymerizations Stand (36133-20) is a foam block used to elevate the Microwave Polymerization System (36133) above the PELCO ColdSpot® during resin polymerization. This elevation allows for controlled heating of the water in the Microwave Polymerization System. The Stand is microwave transparent and provides a stable base for the Polymerization System.

Prod # Description Unit Price Order / Quote
36133-20 Polymerization Stand each $82.50
Qty:




plastic petri dish

Polypropylene Petri Dishes

Polypropylene Petri Dishes are microwave transparent and sturdy. These dishes can be coupled with the PELCO Prep-Eze™ Specimen Holders for microwave processing.

Bottom inside dimensions: 50mm dia. x 12mm deep
Lid inside dimensions: 56mm dia. x 10mm deep

Prod # Description Unit Qty Price Order / Quote
36135 Polypropylene Petri Dishes, 50mm ID x 12mm pk/100 1-4 $32.75
Qty:
5+ 31.10
36135-5 Polypropylene Petri Dishes, 50mm ID x 12mm pk/500 1+ 150.00
Qty:




PELCO BioWave Pro Microwave Processor Temperature Probe

Temperature Restrictive Temperature Probe with PTFE Coating

This PTFE-coated probe is supplied with the PELCO BioWave® Pro+ and is a replacement probe for all the previous PELCO® Microwave systems.

It is used to monitor and/or maintain preset temperature maximums during microwave processing. The temperature probe is accurate to ±1°C (from 0°C to 100°C) and will maintain ±1°C in water and most fixative solutions. The 10cm probe is protected with a PTFE coating for decalcification and special stain applications. It has a 40cm long lead and is designed to fit into Product No. 36138 PTFE Probe Stand. This stand has a 12cm long arm that can be adjusted up and down over an 18cm range to allow precise location of the probe into processing vessels or a container. The Product No. 3536 PELCO® EM Microwave Vacuum Chamber is also designed for use with this temperature probe.

Prod # Description Unit Qty Price Order / Quote
36145-T Temperature Restrictive Temperature Probe with PTFE Coating each 1+ $144.10
Qty:
36138 PTFE Temperature Probe Stand each 1+ 47.90
Qty:
