Rapid-Core Sampling Punches
dimensions in mm

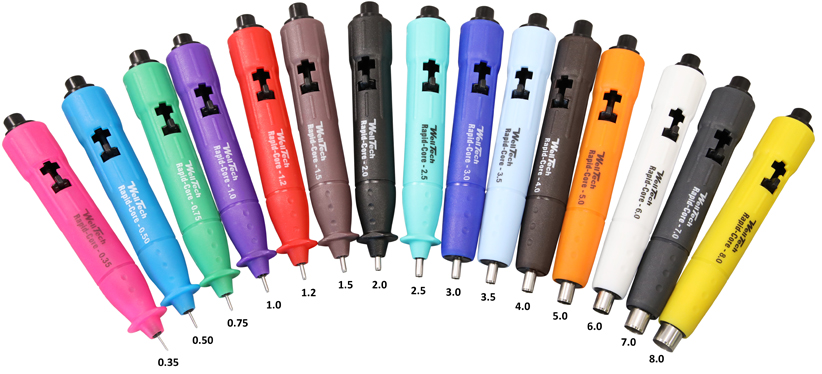

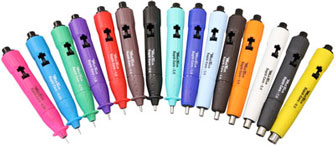

Rapid-Core is a multi-purpose sampling tool, designed with a retractable cutting cannula. It features easy operation, is safe to use, and is fast and precise. The body of the tool is made from polypropylene (PP) and the cutting tip from stainless steel 304 (SS304). The Rapid-Core razor sharp stainless steel cutting tip is designed to cut, retrieve and store cored samples from source materials such as skin, tissue, gels, paper, cloth, leaves, paint chips, films or other thin, soft substrates. The Rapid-Core is recommended as a special DNA sampling tool and ideal for forensic and laboratory sampling purposes. Each Rapid-Core Punch is ethylene oxide sterilized in a self-sealing sterilization pouch. This product will not withstand steam sterilization in an autoclave.
Features:
- Single application disposable sampling punch
- Retractable cutting cannula
- Body is made of polypropylene
- Stainless steel 304 (SS304) razor sharp cutting tip
- Individually packaged
- Sterile
Specifications:
Sizes: 0.35, 0.5, 0.75, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0, 6.0, 7.0, 8.0mm
Material: PP - body, 304 stainless steel - cutting cannula (tip)
Packaging: individually packaged
Sterilization: EO (ethylene Oxide)
Patent: US patent no. US 9,655,598 B2
| Product No. |
Size (mm) |
I.D. (mm) |
O.D. (mm) |
Wall Thickness (mm) |
| 15115 |
0.35 |
0.33 |
0.63 |
0.15 |
| 15115-1 |
0.5 |
0.50 |
0.80 |
0.15 |
| 15115-2 |
0.75 |
0.77 |
1.07 |
0.15 |
| 15115-3 |
1.0 |
0.96 |
1.26 |
0.15 |
| 15115-4 |
1.2 |
1.2 |
1.5 |
0.15 |
| 15115-5 |
1.5 |
1.5 |
1.9 |
0.20 |
| 15115-6 |
2.0 |
2.0 |
2.4 |
0.20 |
| 15115-7 |
2.5 |
2.5 |
2.9 |
0.20 |
| 15115-8 |
3.0 |
3.0
|
3.4 |
0.20 |
| 15115-9 |
3.5 |
3.5 |
3.9 |
0.20 |
| 15115-10 |
4.0 |
4.0 |
4.4 |
0.20 |
| 15115-11 |
5.0 |
5.0 |
5.5 |
0.25 |
| 15115-12 |
6.0 |
6.0 |
6.5 |
0.25 |
| 15115-13 |
7.0 |
7.0 |
7.5 |
0.25 |
| 15115-14 |
8.0 |
8.0 |
8.5 |
0.25 |
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15115
| Rapid Core, ID 0.35mm, OD 0.63mm, Pink
| each
| $6.50
|
|
| 15115-1
| Rapid Core, ID 0.5mm, OD 0.80mm, Blue
| each
| 6.50
|
|
| 15115-2
| Rapid Core, ID 0.75mm, OD 1.07mm, Green
| each
| 6.50
|
|
| 15115-3
| Rapid Core, ID 1.0mm, OD 1.26mm, Purple
| each
| 6.50
|
|
| 15115-4
| Rapid Core, ID 1.2mm, OD 1.5mm, Red
| each
| 6.50
|
|
| 15115-5
| Rapid Core, ID 1.5mm, OD 1.9mm, Brown
| each
| 6.50
|
|
| 15115-6
| Rapid Core, ID 2.0mm, OD 2.4mm, Black
| each
| 6.50
|
|
| 15115-7
| Rapid Core, ID 2.5mm, OD 2.9mm, Teal
| each
| 6.50
|
|
| 15115-8
| Rapid Core, ID 3.0mm, OD 3.4mm, Royal Blue
| each
| 6.50
|
|
| 15115-9
| Rapid Core, ID 3.5mm, OD 3.9mm, Light Blue
| each
| 6.50
|
|
| 15115-10
| Rapid Core, ID 4.0mm, OD 4.4mm, Black
| each
| 6.50
|
|
| 15115-11
| Rapid Core, ID 5.0mm, OD 5.5mm, Orange
| each
| 6.50
|
|
| 15115-12
| Rapid Core, ID 6.0mm, OD 6.5mm, White
| each
| 6.50
|
|
| 15115-13
| Rapid Core, ID 7.0mm, OD 7.5mm, Black
| each
| 6.50
|
|
| 15115-14
| Rapid Core, ID 8.0mm, OD 8.5mm, Yellow
| each
| 6.50
|
|
|
 |
Aluminum Rapid-Punch Sampling Punches
The Rapid-Punch consists of a razor sharp cutting tip designed to cut, retrieve and store cored samples from source materials such as tissue, gels, paper, cloth, leaves, paint chips, films or other thin substrates. The Rapid-Punch is recommended as a special DNA sampling tool and ideal for forensic and most laboratory sampling purposes.
This multi-purpose sampling tool kit is manufactured with 6061-T6 grade aluminum (full CNC machined aluminum alloy parts) with replaceable stainless steel cutting tips. The cutting tips are sharpened SS440C stainless steel, heat treated to HRC 58 hardness. The cutting tips are designed for numerous and precise sampling operations.
Features:
- Full CNC machined 6061-T6 aluminum alloy punch parts
- Replaceable cutting tips
- Cutting Tip: sharpened SS440C stainless steel with heat treatment to HRC 58 hardness
- Sizes I.D.: 0.5, 1.0, 1.2, 2.0 & 3.0mm
- Designed for numerous and precise sampling operations
- Durable lifetime, up to 2000 punches
- All new plunger system and changeable plunger sizes
- Recommended for repeated and mass sampling applications
- Autoclavable
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 15116
| Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 0.5mm
| each
| $145.00
|
|
| 15116-1
| Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 1.0mm
| each
| 145.00
|
|
| 15116-2
| Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 1.2mm
| each
| 145.00
|
|
| 15116-3
| Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 2.0mm
| each
| 145.00
|
|
| 15116-4
| Rapid-Punch Sampling Kit, material 6061-T6 aluminum alloy, ID 3.0mm
| each
| 145.00
|
|
|
