PELCO® Long, Microscopic Needle Holder, Stainless Steel
Long, stainless steel, microscopic needle holder with plastic handle, total length 240mm (9-1/2"). Accepts needles up to 0.66mm (0.026") diameter. Ideal for difficult to reach spots and use in fluids where corrosion resistance is needed. Stainless steel shank Ø3.5mm (0.64"), plastic handle Ø6.35mm (1/4"), total length 240mm (9.45").
For stainless steel Micro Needles, see below.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 1350-5
| PELCO® Long Microscopic Needle Holder
| each
| $16.30
|
|
|
Micro Picks
Stainless Steel, for dissecting, manipulating, or holding small tissues or objects,
wooden handle, needle diameter 0.63mm (0.025").
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13531
| Micro Pick, Angled, 19.0cm L
| each
| $10.80
|
|
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13532
| Micro Pick, Straight 18.4cm L
| each
| $8.80
|
|
|
Micro Probes

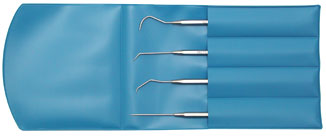

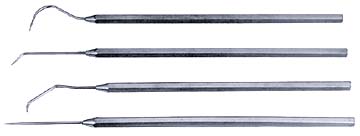

Probing, picking, poking or moving; set of 4 probes with very fine flexible tips.
Made of stainless steel, tempered spring wire. Set of 4 comes in vinyl pouch. Probes
and pouch may be ordered separately.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13550
| Micro Probes, Set of 4, with Pouch
| each
| $12.60
|
|
| 13551
| Probe, Straight Needle, 14cm (5-1/2")
| each
| 3.30
|
|
| 13552
| Probe, Hook Curve, 14cm (5-1/2")
| each
| 3.00
|
|
| 13553
| Probe, Bent Needle, 14cm (5-1/2")
| each
| 3.30
|
|
| 13554
| Probe, Large Curve, 14cm (5-1/2")
| each
| 3.30
|
|
| 13550-P
| Probe Pouch Only
| each
| 3.90
|
|
|
Pin Vise and Micro Needles
This quality pin vise, with a wide choice of micro needles, is ideally suited for probing, picking, scribing, cleaning, marking and similar fine work. There is a wide choice of fine pointed needles for different grades of precision work.
- Straight stainless steel needles with 0.25, 0.40 and 0.55 mm diameter
- Angled stainless steel needle with 0.25, 0.40 and 0.55 mm diameter
- Very fine and straight short micro needle with a 0.1mm diameter
- Sharp carbon tool steel needle (nickel plated) with a diameter of 0.35mm.
The stainless steel micro needles are more flexible and suitable for probing, picking and sorting.
They are also more chemically resistant. The carbon steel needle is stiffer and harder and more suitable
for marking, scribing and cleaning applications.
 |
 |
 |
|
13560 Brass Pin Vise with Steel Collet
|
Pin Vise Holding Needle
13562-10
|
Pin Vise Holding
Needle
13561-50 (image 2x)
|
The Precision Pin Vise has a knurled brass handle for a firm grip and a precision carbon
steel collet for holding the needles. 80mm (3-1/8") long. The maximum needle diameter
capacity for the pin vise is 0.70mm (0.028").
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13560
| Pin Vise without Needles, 80mm (3-1/8") Long
| each
| $15.00
|
|
|
|
Micro Needles for Pin Vise |
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| Stainless Steel Micro Needles
|
| 13561-10
| Straight Stainless Steel Needles 0.25mm Diameter, 36mm Long
| pkg/10
| $5.00
|
|
| 13561-20
| Straight Stainless Steel Needles 0.40mm Diameter, 36mm Long
| pkg/10
| 5.00
|
|
| 13561-30
| Straight Stainless Steel Needles 0.55mm Diameter, 36mm Long
| pkg/10
| 5.00
|
|
| 13561-50
| Straight Stainless Steel Needles 0.1mm Diameter, 12mm Long
| pkg/10
| 5.50
|
|
| 13562-10
| Angled Stainless Steel Needles 0.25mm Diameter, 36mm Long
| pkg/10
| 6.50
|
|
| 13562-20
| Angled Stainless Steel Needles 0.40mm Diameter, 36mm Long
| pkg/10
| 6.50
|
|
| 13562-30
| Angled Stainless Steel Needles 0.55mm Diameter, 36mm Long
| pkg/10
| 6.50
|
|
| Carbon Steel Micro Needles
|
| 13565-10
| Straight Sharp Carbon Tool Steel Needles 0.35mm Diameter, 30mm Long, Nickel Plated
| pkg/10
| 16.20
|
|
The wide selection of micro needles are also compatible with the Long Microscopic Needle Holder, 1350-5, (top of page).
Pin Vise with Straight Stainless Steel Needles
Pin Vise #13560 complete with a pack of 10 Straight Stainless Steel Micro Needles (#13561-10), 0.25mm diameter.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13561
| Pin Vise with 10 Straight, Stainless Steel Needles
| each
| $17.60
|
|
Pin Vise with Angled Stainless Steel Needles
Pin Vise #13560 complete with a pack of 10 Angled Stainless Steel Micro Needles (#13562-10), 0.25mm diameter.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13562
| Pin Vise with 10 Angled, Stainless Steel Needles
| each
| $13.50
|
|
Pin Vise with Straight, Sharp Carbon Steel Needles
Pin Vise #13560 complete with a pack of 10 Straight, Sharp Carbon Steel (nickel plated) Micro Needles (#13565-10),
0.35mm diameter.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13565
| Pin Vise with 10 Straight, Sharp Carbon Steel (nickel plated) Needles
| each
| $18.70
|
|
|
Ultrafine Tungsten Manipulator Probe
 |
 |
The Ultrafine Tungsten Manipulator Probe consists of a fine tungsten needle with 0.6um radius in a
quality precision pin vise. The ultrafine point is ideally suitable for probing and manipulating
very small particles or feature under a microscope. The tungsten needle has a diameter of 0.52mm
(0.020"), a length of 25mm (1") and a sharp tip radius of 0.6µm. The precision pin
vise has knurled brass handle for a firm grip and a precision carbon steel collet for holding the
tungsten probe. 80mm (3-1/8") long. The maximum probe diameter for the pin vise is 0.70mm (0.028").
The sharp tungsten needle can also be used in other needle holders or for custom made probing systems.
|
|
13570 Ultrafine Tungsten Manipulator Probe
|
13570 Ultrafine Tungsten
Manipulator Probe
(image 2x)
|
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13570
| Ultrafine Tungsten Manipulator Probe
| each
| $22.60
|
|
| 13570-10
| Replacement Tungsten Probe, 0.6µm/25mm L
| each
| 16.50
|
|
|
Micromanipulator Accessory Probe
Inset Magnified ~6x |
"Catwhisker Probe" with 0.07µm Tip Radius, Tungsten Tip
A specialized ultraminiature flexible probe for micromanipulator use. Total length is 1-7/16" (36.5mm), shaft diameter is 0.020" (0.51mm). Other applications may be developed because of the extremely fine tip and its unique design which allows the probe tip to "flex", reducing pressure on the tip.
This probe may be used in the Pin Vise #13560 or the Long Microscopic Needle Holder #1350-5, shown above.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 99-15864
| Ultraminiature Catwhisker Probes
| box/25
| $400.00
|
|
|
|
Speedles
 |
Removing Protective Cap from Speedle
Blade Widths:
Large (red) 800µm
Medium (green) 560µm
Medium Fine (blue) 360µm
Fine (gold) 200µm
Extra Fine (black) 180µm
|
|
Speedles are miniature needle-like spatulas with five different blade sizes from 180–800µm. Handles are color coded for easy identification, includes protective cap. Ideal for making micro dispersions directly on SEM specimen stubs. Properly shaped for applying micro amount of adhesive for tacking down specimens. Can also be used for applying small droplets of oil. Another use is specimen manipulation under the light microscope. Overall length 2-1/2" (63.5mm), sold in sets of five (one of each size), or as individual pieces. |
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13580
| Speedles Set: Red, Green, Blue, Gold, Black
| each
| $29.70
|
|
| 13580-1
| Speedle, Large, Red
| each
| 8.80
|
|
| 13580-2
| Speedle, Medium, Green
| each
| 10.20
|
|
| 13580-3
| Speedle, Medium Fine, Blue
| each
| 10.20
|
|
| 13580-4
| Speedle, Fine, Gold
| each
| 8.80
|
|
| 13580-5
| Speedle, Extra Fine, Black
| each
| 8.80
|
|
|
Angle Tip Probe
Made of stainless steel, highly polished with smooth rounded tip.
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13225
| Angled Tip Probe, 152mm L (6")
| each
| $1.40
|
|
|
PELCO® Carbo-Probe™ CP, ESD Safe PEEK Probes
 |
 |
|
Set of three Carbo-Probes™ in plastic pouch
|
The PELCO® Carbo-Probe™ CP tools are made of ESD safe PEEK (polyetheretherketone) reinforced with conducting carbon fibers. They are wear resistant and the soft tips do not scratch delicate
surfaces. Ideal for positioning small specimens/parts/components. Also suited for forensic and microscopy
sampling applications. Three different types or a complete set. Available with a straight or curved point being flat
on the opposite end or as a double spatula. Temperature resistant up to 300°C (575°F)
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 5097
| PELCO® Carbo-Probe™ CP, (PEEK), Set of 3 (Straight, Curved, Spatula) in Plastic Pouch
| each
| $32.20
|
|
| 5094
| PELCO® Carbo-Probe™ CP, (PEEK), MPT-1R, Straight Point, 150mm L (5.9")
| each
| 10.80
|
|
| 5095
| PELCO® Carbo-Probe™ CP, (PEEK), MPT-2, Curved Point, 148mm L (5.8")
| each
| 10.80
|
|
| 5096
| PELCO® Carbo-Probe™ CP, (PEEK), MPT-3, Double Spatula, 140mm L (5.5")
| each
| 10.80
|
|
|
PELCO® Nylon-Probe
The PELCO® Nylon-Probe has the same design and dimensions as the PELCO® Carbo-Probe™ tools but is made of stabilized glass fiber reinforced nylon. This material exhibits high strength, good wear resistance and moderate to good chemical resistance. Temperature resistant up to 120°C (248°F)
| Prod #
| Description
| Unit
| Price
| Order / Quote
|
| 13557-3
| PELCO® Nylon-Probe MPT-3, Double Spatula, 140mm L (5.5")
| each
| $5.40
|
|
|
