DiATOME® Diamond Knives Overview

Now available from Ted Pella, Inc.

DiATOME® ultra sonic Diamond Knives

Available for sale in U.S.A. only




Features:

  • Thinner sections
  • No compression
  • Best structure preservation

ultra sonic Oscillating Diamond Knife 35°

Patented piezo actuated ultra sonic oscillating diamond knife can produce compression free, ultra-thin sections with state of the art preservation of structure. Oscillation frequency can be set between 25 and 45 kHz and amplitude is adjustable by setting the voltage between 0 and 30 volts. Using these two adjustments, the oscillation produced parallel to the cutting edge can be varied to match the cutting characteristics of the material being sectioned. Section thicknesses range from 15 to 100nm. Blade width is 3.0mm. 110V power requirement.

ultra sonic maxi Diamond Knife 35°

The ultra sonic maxi diamond knife is similar to the ultra sonic but with a wider boat. It is designed specifically for biological serial sectioning. Oscillation frequency can be set between 25 and 45 kHz and amplitude is adjustable by setting the voltage between 0 and 30 volts. Using these two adjustments, the oscillation produced parallel to the cutting edge can be varied to match the cutting characteristics of the material being sectioned. Section thicknesses range from 15 to 100nm. 3.0 and 4.0mm blade widths. 110V power requirement.

Knife Specifications

Knife angle: 35°
Section thickness range: 15 to 100nm
Knife cutting edge length: 3.0mm

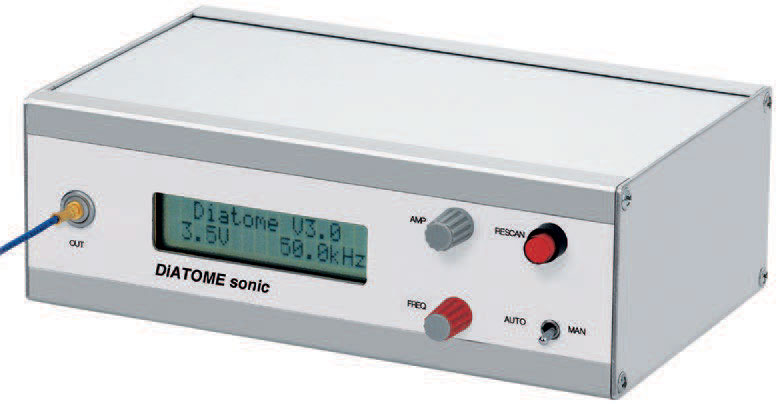

Control Unit

Frequency: 25 to 45kHz, or automatic setting of the resonance
Amplitude: variable (voltage 0 to 30V)
Mains voltage: 110V
Dimensions: 16 W x 12 D x 6cm H (6.3 x 4.72 x 2.36")
Weight: 400g (0.88 lb)

The theoretical considerations and first results of this invention were presented in the Journal of Microscopy. Results with polymers using the oscillating knife were shown at the M&M 2002 meeting in Quebec.

The following materials were tested using the oscillating knife:

  • Biological samples in Epon, Araldite, EM Bed, etc.
  • Biological samples in acrylic resins (Lowicryl, LR White).
  • Rigid polymers such as PS, PMMA, ABS, HIPS, modified PP, etc.

Neuropil of a HP frozen / freeze substituted hippocampus slice culture, Daniel Studer and Werner Graber, Inst. of Anatomy, University of Bern. Sectioned with the ultra sonic knife.
Handling & Use of DiATOME® Diamond Knives (500KB PDF)


product selector icon DiATOME® Diamond Knife Selector
Knife Type & Angle Width Select
Price: P.O.R Qty:


DiATOME® Ordering Information

Prod # Description Unit Price Order / Quote
For Sale in U.S.A. Only
R = Resharpen
123-US3-C3 DiATOME® ultra sonic Diamond Knife and Control Unit, Angle 35°, Knife 3.0mm each P.O.R.
Qty:
123-US3-K3 DiATOME® ultra sonic Diamond Knife, Angle 35°, Knife 3.0mm each P.O.R.
Qty:
123-US3-K3R DiATOME® ultra sonic Diamond Knife, Angle 35°, Knife 3.0mm, Resharpen each P.O.R.
Qty:
123-USM3-C3 DiATOME® ultra sonic maxi Diamond Knife and Control Unit, Angle 35°, Knife 3.0mm each P.O.R.
Qty:
123-USM3-K3 DiATOME® ultra sonic maxi Diamond Knife, Angle 35°, Knife 3.0mm each P.O.R.
Qty:
123-USM3-K3R DiATOME® ultra sonic maxi Diamond Knife, Angle 35°, Knife 3.0mm, Resharpen each P.O.R.
Qty:
123-USM3-C4 DiATOME® ultra sonic maxi Diamond Knife and Control Unit, Angle 35°, Knife 4.0mm each P.O.R.
Qty:
123-USM3-K4 DiATOME® ultra sonic maxi Diamond Knife, Angle 35°, Knife 4.0mm each P.O.R.
Qty:
123-USM3-K4R DiATOME® ultra sonic maxi Diamond Knife, Angle 35°, Knife 4.0mm, Resharpen each P.O.R.
Qty:




123-C

NEW Ultramicrotome Section Thickness Color Reference Chart

This reference chart allows the user to easily gauge section thickness from the interference color of cut sections. Useful for both new and experienced ultramicrotome users.

Made of durable, water resistant vinyl, this is an essential tool for any ultramicratome facility.

Prod # Description Unit Price Order / Quote
123-C Ultramicrotome Section Thickness Color Reference Chart each $11.50
