Materials Science Overview
Embedding Supplies for Materials Science Overview
Plastic & Silicone Rubber Molds

Specimen Mounting Clips

metal spring mounting clips
Metal Spring Mounting Clips
Plastic Spring Mounting Clips
Plastic Spring Mounting Clips
mounting clips
Specimen Mounting Clips
Multiclips, Plastic Mounting Clips
Multiclips
Multiclips, Plastic Mounting Clips
NEW Embedding Aids




metal spring mounting clips

Metal Spring Mounting Clips

Spring clips, ideal for holding thin samples for cross sectioning. Can be used for hot and cold embedding. Give additional support to facilitate flat grinding and polishing. Size is 6.3 x 120mm (W x L). Can be unrolled to hold a section with a thickness up to 40mm. Made of stainless steel.

Prod # Description Unit Price Order / Quote
813-210 Metal Spring Mounting Clips pkg/100 $32.50
Qty:




Plastic Spring Mounting Clips

Plastic Spring Mounting Clips

Ideal for holding thin samples of softer material. For cold embedding aplications. Size is 6.2 x 120mm tightly rolled to 7.5mm diameter. Can be unrolled to form clip and hold sample up to 40mm. Made of polyester.

Prod # Description Unit Price Order / Quote
813-212 Plastic Spring Mounting Clips pkg/100 $28.90
Qty:




mounting clips

Plastic Mounting Clips

For cold clear embedding applications with epoxy or polyester. Different colors for easy sample location. Size is 6 x 8 x 11mm (H x W x L). Can hold a thin section with a maximum thickness of 2.5mm. Made of PVC.

Prod # Description Unit Price Order / Quote
813-214 Plastic Mounting Clips pkg/100 $80.00
Qty:




Multiclips, Plastic Mounting Clips

Multiclips

Plastic clips for holding up to five small and thin sections. Size is 9 x 12.5 x 21mm (H x W x L). Can hold thin sections with a maximum thickness of 2.5mm. Made of PPE.

Prod # Description Unit Price Order / Quote
813-213 Multiclips, Plastic Mounting Clips pkg/25 $121.70
Qty:




Multiclips, Plastic Mounting Clips

NEW Embedding Aids

Plastic clips for holding up to three or four small and thin sections such as sheet metal or printed circuit boards. Size is 30mm OD x 12mm H  (1.18" OD x 0.47" H). Can hold thin sections with maximum thickness of 1, 2, or 3mm. Made of polystyrene.

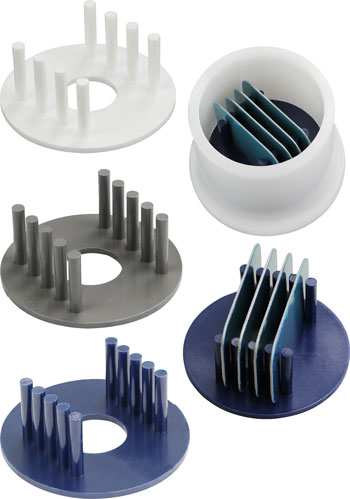

Image left-side top to bottom: Embedding Aid 3mm (white) #813-737, 2mm (gray) #813-736, 1mm (navy) #813-735.

Image right-side top to bottom: Embedding Aid 1mm (#813-735) shown with Samples in Mounting Mold (#813-630), Embedding Aid 1mm (#813-735) shown with Samples.

Prod # Description Unit Price Order / Quote
813-735 Embedding Aid, Navy, 1mm pkg/100 $53.00
Qty:
813-736 Embedding Aid, Gray, 2mm pkg/100 53.00
Qty:
813-737 Embedding Aid, White, 3mm pkg/100 53.00
Qty:
