Polishing Overview
Materials Science Overview
Polishing Discs

Diamond Polishing Suspensions

diamond suspensions

PELCO® Diamond Suspension, Monocrystalline

PELCO® Monocrystalline Diamond Suspensions are formulated in a water soluble base carrier with carefully cleaned and graded diamond powder to ensure tight particle size distribution around the given average size for fast polishing rates with minimal possibility of scratching. The carrier medium mix has been designed for optimal lubricity and viscosity to achieve the desired cutting rate. At the same time, it can be easily dispensed from a spray bottle by hand or from an automated dispensing system with no further dilution or additional extending fluid needed. Plus being water soluble, PELCO® Diamond Suspensions are readily cleaned off from the polished sample, the polishing machine and the polishing cloth as needed, with soapy water. Available in all the below listed average particle sizes in 16oz. or 1 gallon refill bottles for your existing spray bottles or dispensing system.

SDS (136KB PDF)

Prod # Description Unit Price Order / Quote
894-10 PELCO® Diamond Suspension, Monocrystalline, 0.1µm, 16oz each $90.20
Qty:
894-11 PELCO® Diamond Suspension, Monocrystalline, 0.25µm, 16oz each 77.00
Qty:
894-12 PELCO® Diamond Suspension, Monocrystalline, 1µm, 16oz each 75.90
Qty:
894-13 PELCO® Diamond Suspension, Monocrystalline, 3µm, 16oz each 75.90
Qty:
894-14 PELCO® Diamond Suspension, Monocrystalline, 6µm, 16oz each 75.90
Qty:
894-15 PELCO® Diamond Suspension, Monocrystalline, 9µm, 16oz each 91.30
Qty:
894-16 PELCO® Diamond Suspension, Monocrystalline, 15µm, 16oz each 91.30
Qty:
894-17 PELCO® Diamond Suspension, Monocrystalline, 30µm, 16oz each 91.30
Qty:
894-18 PELCO® Diamond Suspension, Monocrystalline, 45µm, 16oz each 91.30
Qty:
894-10-1 PELCO® Diamond Suspension, Monocrystalline, 0.1µm, 1gal each 335.50
Qty:
894-11-1 PELCO® Diamond Suspension, Monocrystalline, 0.25µm, 1gal each 335.50
Qty:
894-12-1 PELCO® Diamond Suspension, Monocrystalline, 1µm, 1gal each 297.00
Qty:
894-13-1 PELCO® Diamond Suspension, Monocrystalline, 3µm, 1gal each 297.00
Qty:
894-14-1 PELCO® Diamond Suspension, Monocrystalline, 6µm, 1gal each 297.00
Qty:
894-15-1 PELCO® Diamond Suspension, Monocrystalline, 9µm, 1gal each 401.50
Qty:
894-16-1 PELCO® Diamond Suspension, Monocrystalline, 15µm, 1gal each 401.50
Qty:
894-17-1 PELCO® Diamond Suspension, Monocrystalline, 30µm, 1gal each 401.50
Qty:
894-18-1 PELCO® Diamond Suspension, Monocrystalline, 45µm, 1gal each 401.50
Qty:




diamond polishing pump spray

Diamond Polishing Pump Sprays, Water Based

Diamond Polishing Spray, ready for use in convenient spray bottle for direct application on polishing cloth. Same high quality diamond grades as used in the syringes.

MSDS (220KB PDF)

Prod # Description Unit Price Order / Quote
895-35 Diamond Polishing Pump Spray, 0.25µm size, 250ml each $34.00
Qty:
895-36 Diamond Polishing Pump Spray, 0.5µm size, 250ml each 34.00
Qty:
895-37 Diamond Polishing Pump Spray, 1µm size, 250ml each 34.00
Qty:
895-38 Diamond Polishing Pump Spray, 3µm size, 250ml each 34.00
Qty:
895-39 Diamond Polishing Pump Spray, 6µm size, 250ml each 34.00
Qty:
895-30 Diamond Polishing Pump Spray, set of 5 sizes each 169.70
Qty:




polycrystalline diamond suspension

Polycrystalline Diamond Suspension

Polycrystalline Diamonds are typically used on hard materials such as ceramics, tool steel, sapphire, super alloys and Si. They have more cutting edges, are less fragile and cause less subsurface deformation. Water soluble, bottle of 250ml.

SDS (134KB PDF)

Prod # Description Unit Price Order / Quote
814-310 Polycrystalline Diamond Suspension, 0.1µm, 250ml each $105.60
Qty:
814-312 Polycrystalline Diamond Suspension, 0.25µm, 250ml each 39.60
Qty:
814-314 Polycrystalline Diamond Suspension, 0.5µm, 250ml each 40.70
Qty:
814-316 Polycrystalline Diamond Suspension, 1µm, 250ml each 45.10
Qty:
814-318 Polycrystalline Diamond Suspension, 3µm, 250ml each 45.10
Qty:
814-320 Polycrystalline Diamond Suspension, 6µm, 250ml each 45.10
Qty:
814-322 Polycrystalline Diamond Suspension, 9µm, 250ml each 53.90
Qty:
814-324 Polycrystalline Diamond Suspension, 15µm, 250ml each 52.80
Qty:
814-326 Polycrystalline Diamond Suspension, 30µm, 250ml each 58.30
Qty:
814-328 Polycrystalline Diamond Suspension, 45µm, 250ml each 69.30
Qty:




polycrystalline diamond suspension

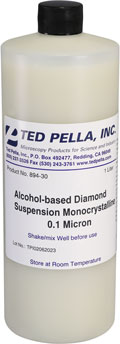

NEW PELCO® Alcohol-Based Diamond Suspension, Monocrystalline

Monocrystalline diamond suspensions formulated in an alcohol base for polishing samples that may be sensitive to the presence of water. Suspensions have a low viscosity and can be cleaned with water. Due to alcohol vapors, good ventilation is required.

SDS (646KB PDF)

Prod # Description Unit Price Order / Quote
894-30 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 0.1µm, 1L each $95.00
Qty:
894-31 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 0.25µm, 1L each 95.00
Qty:
894-32 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 0.5µm, 1L each 95.00
Qty:
894-33 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 1µm, 1L each 100.00
Qty:
894-34 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 3µm, 1L each 100.00
Qty:
894-35 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 6µm, 1L each 100.00
Qty:
894-36 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 9µm, 1L each 105.00
Qty:
894-37 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 15µm, 1L each 105.00
Qty:
894-38 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 30µm, 1L each 110.00
Qty:
894-39 PELCO® Alcohol-Based Diamond Suspension, Monocrystalline, 45µm, 1L each 110.00
Qty:




polycrystalline diamond suspension

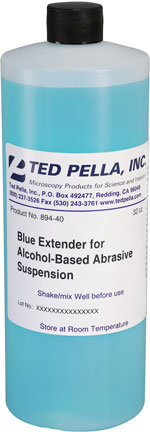

NEW PELCO® Extender for Alcohol-Based Diamond Suspension

Extender solution for PELCO® alcohol-based diamond suspensions.

SDS (644KB PDF)

Prod # Description Unit Price Order / Quote
894-40 PELCO® Blue Extender for Alcohol-Based Abrasive Suspension, 1L each $50.00
Qty:
