Embedding Overview

Molds for Flat Embedding
Machined from PTFE Resin

for electron microscopy specimen embedding
cured acrylics are successfully released

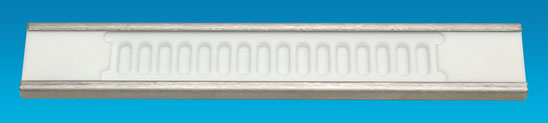

ptfe flat embedding mold, 16 cavities
16 Cavities, cavity dimensions: 14 L x 4.8 W x 3 D (mm)

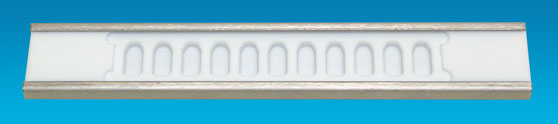

ptfe flat embedding mold, 11 size 00 cavities
11 Size 00 Cavities, cavity dimensions: 14 L x 6.9 W x 3 D (mm)

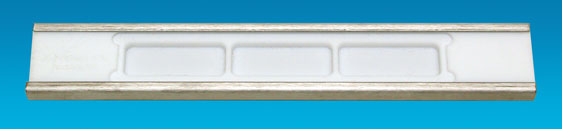

ptfe flat embedding mold, 3 cavities
3 Cavities, cavity dimensions: 37.6 L x 13.8 W x 3 D (mm)

embedding mold with electron microscopy specimens
  • Especially useful when embedding with LR White, LR Gold, and Lowicryls for electron microscopy
  • Can be used for both low temperature UV and thermal polymerization
  • Unique configuration provides recesses for Thermanox® Cover Slips or ACLAR® film to insure anaerobic polymerization (see ACLAR® under "Embedding")

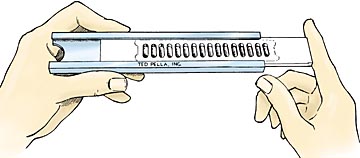

Following curing, each of the specimen blocks can be removed by flexing the Mold. To restore flatness of the mold, simply slide it back into the provided metal Clamping Frame. PTFE resin is nonreactive and provides durability, flexibility and ease of release.

Prod # Description Unit Price Order / Quote
10506 Flat Embedding PTFE Mold with Metal Frame, 16 cavities each $76.50
Qty:
10506-10 Flat Embedding PTFE Mold with Metal Frame, 11 size 00 cavities each 75.00
Qty:
10508 Flat Embedding PTFE Mold with Metal Frame, 3 cavities each 76.50
Qty:
10501-10 ACLAR® Embedding Film, 7.8 mil Thick, 8 x 12.5, (203 x 318mm) pkg/10 96.45
Qty:
26026 Thermanox® Cover Slips, 22 x 60mm pkg/100 137.50
Qty:


PELCO® Technical Notes, PTFE Molds for Flat Embedding (84KB PDF)


ptfe flat embedding mold embedding mold for specimen processing for electron microscopy

PTFE Flat Embedding Mold

Six tapered round openings, 34mmOD at top and 32mmOD at the bottom, 3mm deep. The cavities are numbered 1-6 at the bottom.
(idea courtesy of Doug Price, University of Kentucky)

Prod # Description Unit Price Order / Quote
10509 Flat Embedding PTFE Mold, 6 cavities each $83.20
Qty:
