NEW Motic® Panthera U Light Microscopes

motic panthera U binocularmotic panthera U trinocular microscope

The Motic® Panthera U is a user friendly microscope with Motic® LightTracer digital illumination control, full Koehler illumination and premium Plan UC optics to deliver unmatched color fidelity and definition. The 3W LED illumination is easily interchangeable with different color temperature LED bulbs. The Panthera U also features a newly designed 2-slide compact rackless stage.

Features:

panthera U eyepieces

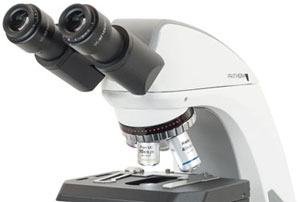

Siedentopf Observation Tube

The Panthera U's Siedentopf observation tube is designed with an ergonomic viewing angle of 25° and incorporating an interpupillary distance of 48-75mm. The Panthera U's observation tubes guarantee fatigue free viewing for hours. Large field of view (22mm) enables fast and comfortable screening of specimens. The trinocular tube allows digital documentation and integration to a wide variety of digital cameras.


panthera U siedentopf observation tube

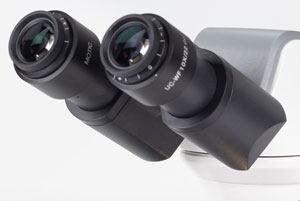

Eyepieces

The UC eyepieces are made of high quality optical glass and have a high-eyepoint for eyeglass wearers. The eyepieces provide consistent diopter adjustments for both eyes. This enables perfect usage of reticles for measuring, counting, etc.  The new UC eyepieces feature a 22mm field of view.



panthera reverse quintuple nosepiece

Reversed Quintuple Turret Revolving Nosepiece

The Panthera U has the capability for mounting up to five quality objectives. Precision positive click-stop mechanism ensures precise alignment of objectives.



panthera objectives

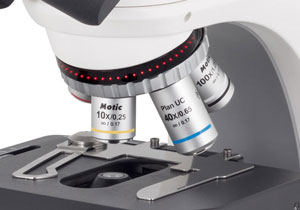

Objectives

To provide overall optical performance of the Panthera U, Motic® introduces a newly designed generation of Plan UC Achromatic Objectives made of high quality optical glass (Pb free): CCIS®. The new UC lenses are multilayer coated for improved contrast to enhance images even with weak slide staining. Also available is a 100x/0.8 dry lens for oil free observation. All have standard RMS thread.

Fine/Coarse Coaxial Focusing

The brass, coaxial fine and course focusing mechanism uses a precise and reliable triangular rail system featuring adjustable tension. The focusing range is 25mm with minimum increments of 2µm.


Condenser

To ensure the best possible illumination quality, the Panthera U condenser is a full Koehler type, N.A. 0.90/1.25 Abbe with slider slot.

panthera stage

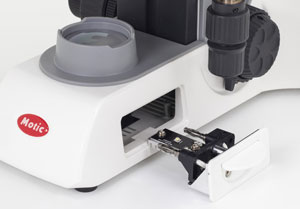

Illumination

The Panthera U introduces Motic’s new integrated intellligent illumination system. The LightTracer system combines a digital multi-function knob, a coded nose piece and an LED feedback indicator. The automated light management is controlled by the multi-function knob. It is responsible for adjusting the light intensity and works with coded nose piece  to memorize the illumination for each objective position. The Panthera U 3W LED illumination offers two options: 3500K or 5500K. Able to Perform BF PH POL Epi LED DF FL MMC Contrast Techniques.


panthera stage

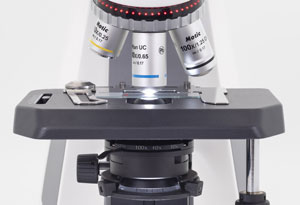

Stage

New, patented, rackless, compact stage features dual slide holder and one hand operation.


Simple Darkfield

Darkfield is possible with a separate DF slider.

BA210 standard eyepieces

Digital Documentation

The integration of the Panthera U trinocular microscope and Moticam® series of digital cameras delivers crisp and live images. All Moticam® Cameras come equipped with software to transfer the Panthera U into an analysis and documentation station. The Panthera U features an integral USB 2.0 port for external camera power. The system provides high resolution imaging in both real time and capture modes. Motic® provides a range of CCD-adapters which are necessary for trinocular port attachment.





Panthera U Technical Specifications
Optical System Color Corrected Infinity Optical System (CCIS®)
Observation Tube Siedentopf, 25° Rotate 360°
Eyepiece  Widefield UC-WF10X/22mm with diopter adjustment
Nosepiece Quintuple Reversed
Focusing Coarse/Fine with tension adjustment
Stage Rectangular 185 x 145mm, X and Y 75 x 50mm
Illumination Motic® LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
Power Requirements Universal; 110-240V; 50/60Hz
Size 282 x 210 x 394mm (11.1 L x 8.3 W x 15.6" H); Weight: 7.7kg (17 lb.)
Warranty 5-year warranty excluding electrical parts

Motic® Panthera Microscope Comparison


Prod # Description Unit Price Order / Quote
Complete Systems for the Panthera U
22469-10 Panthera U Binocular Microscope, N- WF10x/22 Eyepieces, Plan Achromat UC Objectives 4x, 10x, 40x S, 100x S-Oil, Focusable Abbe condenser NA 0.9, 3W LED illumination with intensity control each $1522.00
Qty:
22469-12 Panthera U Trinocular Microscope, N- WF10x/22 Eyepieces, Plan Achromat UC Objectives 4x, 10x, 40x S, 100x S-Oil, Focusable Abbe condenser NA 0.9, 3W LED illumination with intensity control each 1714.00
Qty:

Prod # Description Unit Price Order / Quote
Accessories and Options for the Panthera U
Eyepieces (each)
22469-309 UC-WF10x/22mm, focusable with diopter adjustment each $86.00
Qty:
22469-310 UC-WF10x/20mm, focusable with diopter adjustment each 68.00
Qty:
22455-312 N-WF12.5x/18mm, focusable with diopter adjustment each 211.00
Qty:
22455-313 N-WF15x/16mm, focusable with diopter adjustment each 141.00
Qty:
Reticles (each)
22455-301 Cross Line, Ø25mm each 61.00
Qty:
22455-302 Cross Line w Micrometer (100 div. in 10mm), Ø25mm each 61.00
Qty:
22455-303 Micrometer (100 div. in 10mm), Ø25mm each 60.00
Qty:
22455-305 Eyepiece Pointer, Ø25mm each 59.00
Qty:
Objectives
22469-350 Plan Achromat UC Objective 2x/0.05 (WD 7.2mm) each 249.00
Qty:
22469-351 Plan Achromat UC Objective 4x/0.1 (WD 30.5mm) each 50.00
Qty:
22469-352 Plan Achromat UC Objective 10x/0.25 (WD 17.4mm) each 61.00
Qty:
22469-353 Plan Achromat UC Objective 20x/0.45 (WD 0.8mm) each 99.00
Qty:
22469-354 Plan Achromat UC Objective 40x/0.65/S (WD 0.6mm) each 99.00
Qty:
22469-355 Plan Achromat UC Objective 60x/0.8/S (WD 0.35mm) each 149.00
Qty:
22469-356 Plan Achromat UC Objective 100x/1.25/S-Oil (WD 0.16mm) each 149.00
Qty:
22469-357 Plan Achromat UC Objective 100x/0.8/S-Dry (WD 2mm) each 324.00
Qty:
Plan Phase Objectives
22469-345 Plan Achromat Phase UC PH Objective 10x/0.25(WD 17.4 mm) Ph1 each 185.00
Qty:
22469-346 Plan Achromat Phase UC PH Objective 20x/0.45(WD 0.8mm) Ph2 each 225.00
Qty:
22469-347 Plan Achromat Phase UC PH Objective 40x/0.65S (WD 0.6mm) Ph2 each 349.00
Qty:
22469-348 Plan Achromat Phase UC PH Objective 100x/1.25/S-oil (WD 0.16mm) Ph3 each 507.00
Qty:
No Cover Glass Objectives
22469-340 Plan Achromat UC NCG Objective 10x/0.25(WD 17.4 mm) each 71.00
Qty:
22469-341 Plan Achromat UC NCG Objective 20x/0.45(WD 0.8mm) each 113.00
Qty:
22469-342 Plan Achromat UC NCG Objective 40x/0.65S (WD 0.6mm) each 129.00
Qty:
22469-343 Plan Achromat UC NCG Objective 100x/1.25/S-oil (WD 0.16mm) each 182.00
Qty:
Darkfield Equipment
22455-410 Simple Darkfield Slider (10x-40x) each 134.00
Qty:
Simple Polarizing (not applicable with LED illumination)
22467-412 Add on Analyzer each 40.00
Qty:
22430-414 Add on Polarizer each 47.00
Qty:
Photo and C-mount Video Adapters - Necessary for Camera Mounting on Trinocular Port
22455-400 2.5x SLR projection lens, requires photo eyepiece each 153.00
Qty:
22455-402 Photo Eyepiece 2.5x for photo adapter each 270.00
Qty:
22455-404 Photo Eyepiece 4x for photo adapter each 212.00
Qty:
22455-405 1.0x C-mount Camera Adapter (no lens) each 193.00
Qty:
22455-406 0.65x C-mount Adapter for 2/3" chip sensors each 193.00
Qty:
22455-407 0.5x C-mount camera adapter for 1/2" chip sensors each 165.00
Qty:
22439-408 0.35x C-mount camera adapter for 1/3" chip sensors each 265.00
Qty:
Optional Accessories and Replacements
22430-420 Yellow Filter (45mm) each 23.00
Qty:
22430-421 Green Filter (45mm) each 23.00
Qty:
22431-422 Blue Filter (45mm) each 17.00
Qty:
22431-230 Quartz Halogen Lamp, 6V/30W each 24.00
Qty:
22430-240 Immersion Oil, 5ml each 11.00
Qty:




Motic Microscope Cameras


Moticam® Digital Color Cameras

go to: Motic® MLC-150C Fiber Optic Illumination System
go to: Standard Series Stage Micrometers for Transmitted and Reflected Light
