Laboratory Glassware

Wheaton^® Staining Dish

These mix-and-match components offer greater flexibility in meeting your requirements. This staining dish accommodates 16, 30 and 40 slide racks, listed below. Manufactured from Wheaton^® soda lime glass.

Approximate inside dimensions (L x W x H): 120 x 90 x 70mm (4.72" x 3.54" x 2.75"). Maximum liquid volume without rack is approximately 650 ml.

16/32 Slide Rack, Glass

The Glass Rack holds 16 single slides, 31 slides arranged alternately straight across and diagonally, or 32 slides back-to-back.

Rack dimensions (L x W x H): 99 x 89 x 46mm (3.9" x 3.5" x 1.8")

20/40 Slide Rack, Glass

Holds 20 single slides or 40 back to back of regular 3" x 1" (75 x 25mm) size, 3" x 1-1/2" (75 x 38mm) and 3" x 2" (75 x 51mm) sizes.

Rack dimensions (L x W x H): 119 x 87 x 48mm (4.7" x 3.4" x 1.9")

Staining Dish
50-Slide Unit, with Cover

Slotted rack holds 50 microscope slides, sizes 3" x 1" (75 x 25mm) as well as 3" x 1-1/2" (75 x 38mm). The unit measures approximately 200 x 83 x 105mm (7.87" x 3.27" x 4.13") overall.

Rack is made of non-tarnishable 304 stainless steel and is resistant to most staining solutions. The handle is permanently attached, but hinged to permit closure of dish and easy insertion and removal of the microscope slides. Dish and cover are made of soda lime glass. Approximate inside dimensions: 70 x 185 x 90mm (2.75" x 7.28" x 3.54"). Maximum liquid volume without rack is approximately 950 ml.

10/20 Slide Staining Dish with Cover

For staining 3 x 1" (75 x 25mm) microscope slides. Holds 10 single slides, 19 slides arranged alternately straight across and diagonally, or 20 slides back-to-back. Made of soda lime glass. Approximate inside dimensions: 77 x 60 x 30mm (3" x 2-3/8" x 1-3/16"). Maximum liquid volume without rack is approximately 150 ml.

Staining Dish - 20-Slide Unit

This 20-slide unit is the standard for manual staining procedures, holds 10 single slides or 20 back to back. Removable glass slide rack has an open bottom for rapid immersing and draining of stain, eliminating any carryover. The rack holds 20 slides of regular size 3" x 1" (75 x 24mm), 3" x 1-1/2" (75 x 38mm) sizes. Made of soda lime glass. Approximate inside dimensions: 86 L x 68 W x 57mm D (3.4" x 2.63" x 2.25"). Maximum liquid volume without rack is approximately 400 ml. Rack dimensions: (L x W x H) 69 x 89 x 46mm (2.7" x 3.5" x 1.8")

Vertical Staining Jar with Cover

The wide top makes this jar especially suitable for staining slides inscribed on one end. Holds 8 single 3 x 1" (75 x 25mm) slides vertically or 16 slides back-to-back. Made of soda lime glass. Approximate inside dimensions: 90 x 50 x 30mm (3.5" x 2" x 1.18"). Holds about 50ml of liquid.

Hellendahl Type Staining Dish

For staining or use as a TLC developing chamber. Holds 8 individual 3" x 1" (75 x 25mm) slides. If necessary, 16 slides can be accommodated back-to-back. Made of soda lime glass. Approximate inside dimensions: 75 x 80 x 30mm (3" x 3.14" x 1.18").

Coplin Staining Jar with Glass Cover

A popular staining jar with heavy glass walls and broad base for increased stability. Holds 5 single 3" x 1" (75 x 25mm) slides vertically or 10 slides back to back. Requires small reagent volume. Made of soda lime glass. Approximate inside dimensions: 75 x 30 x 30mm (3" x 1.18" x 1.18").

Short Coplin Staining Jar with Plastic Screw Top

Holds 5 single 3" x 1" (75 x 25mm) slides or 10 back to back. Slides extend above the opening, permitting them to be manipulated without forceps. Screw cap is linerless, white polypropylene. The white linerless polypropylene Screw cap closure retains organic solvents and reduces evaporation. Rectangular base. Made of soda lime glass. Approximate inside dimensions: 65 x 30 x 30mm (2.6" x 1.18" x 1.18"). Holds about 50ml of liquid.

Tall Coplin Staining Jar with Plastic Screw Top

For staining slides or use as a developing chamber in thin layer chromatography. Unit holds 5 single 3" x 1" (75 x 25mm) slides vertically or 10 slides back-to-back. Screw cap is white linerless polypropylene which reduces solvent evaporation. Rectangular base. Made of soda lime glass. Approximate inside dimensions: 70 x 30 x 30mm (2.75" x 1.18" x 1.18").

Coplin Staining Jar with Tall Glass Cover

Chamber with extra tall lid accepts five single 3" x 1" (75 x 25mm) and 3.94" x 1" (100 x 25mm) slides. Made of soda lime glass. Meets USP Type 1 standards.

Columbia Staining Jar for Coverslips

This staining jar can hold up to 4 cover slips measuring 17-23mm wide, and up to 30mm long. Longer coverslips can be accommodated by removing the cap. The jar comes with a white polypropylene screw cap with a PTFE coated polyethylene liner. It is manufactured from Wheaton^® soda lime glass, which meets USP type III standards, and is resistant to most chemicals.

Pyrex^® Beakers

Pyrex^® Glass Beakers are the standard for general laboratory use and can be used in ultrasonic cleaners. Pyrex^® glass has excellent resistance to solvents and most acids. Not for use with heavy or sharp objects. Beakers feature easy pour lid.

• Will work with ultrasonic cleaners
• General laboratory use
• Chemically resistant
• ml graduations
• Easy pour lip

go to Ultrasonic Cleaners

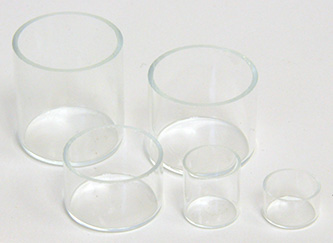

Glass Microbeakers

Use Glass Microbeakers for liquid evaporation, micro sample weighing, sample collecting, and storage applications. Samples can be viewed visually or with stereo and low power microscopes in shallow Microbeakers. Also can be used as petri dish, micro container for any protocol or micro sample processing not requiring thermal shock resistance. Made of N51A low expansion borosilicate glass. Sold in packages of 12.

• Sterilizable
• Economical
• Versatile

Glass Graduated Cylinders

Glass is the standard for general laboratory use and can be used in ultrasonic cleaners. Glass has excellent resistance to solvents and most acids. Graduated Cylinders feature hexagonal base for stability, bumper guard, pour spout and easy-read scale. Accuracy assured by Class A, ASTME E-1272 batch certification.

• Hexagonal base
• Bumper guard
• Class A, ASTM E-1272, batch certified

go to Ultrasonic Cleaners

PELCO^® All-glass Nebulizer

Atomizes very small aqueous volumes to provide distribution of suspensions, particulates, etc., for detailed examination. In EM work a grid is held vertically before the Nebulizer outlet and a flexible bulb is squeezed to create a fine spray. The all-glass design permits proper cleaning and sterilization. Instructions are included.

PELCO® Technical Notes, PELCO® All-glass Nebulizer (PDF File)

Mounting Media / Balsam Bottle

Ideal for applying mounting media. Provided with a glass applicator block and glass cap. Cap is ground to the shoulder of the bottle to form a seal. Made of “810” soda lime glass. Capacity: 100ml. Diameter: 17mm (.67"). Height: 100mm (3.94"). (supplied without media)

Barnes Dropping Bottle, 30ml

Glass Pasteur Pipettes

Short and long style available. Straight tip. Constriction near mouth to retain cotton plug. Ends square cut.

Natural Rubber Bulb for Pipettes

Ampoule Breaker; Soft Silicone

Ampoule Cracker; Disposable

Slip the Ampoule Cracker over the top of the ampoule at the prescored portion, press on collar to snap off the top. Discard the top along with the Ampoule Cracker (using proper safety precautions for hazardous waste disposal).
