Sectioning

sectioning and sample preparation for electron microscopy and light microscopy

[ Clear Nail Polish ]   [ Black Nail Polish ]   [ Silver Tape ]   [ Mounting Cylinders ]
[ Hot Plate ]   [ Eyelash with Handle ]   [ Ultrafine Single Deer Hair ]
[ Tackiwax ]   [ Wax Sheets ]   [ Paper Points ]

Clear Nail Polish

Clear Nail Polish

Clear Nail Polish can be used to seal troughs and boats (go to PELCO® Glass Knife Boats) or tape boats for sectioning with a clean, clear edge. Clear Nail Polish can be utilized for securing eyelashes or fine hair to a wooden stick for section manipulation. The clear coating provides a universal sealant of coverslips to microscope slides for permanent storage.

SDS (152KB PDF) - There are Hazard Shipping Fees associated with this product.  Hazard Shipping Fees

Prod # Description Unit Price Order / Quote
114-7 Clear Nail Polish each $4.40
Qty:




nail polish

Black Nail Polish

Black Nail Polish is used to attach and seal troughs and boats (go to PELCO® Glass Knife Boats) or tape boats for sectioning. The nonreflective background provides easy visibility, and the stickiness provides complete sealing and no interference in sectioning after it dries. Black Nail Polish also offers the ability to secure eyelashes or fine hair to wooden sticks for section manipulation.

SDS (161KB PDF) - There are Hazard Shipping Fees associated with this product.  Hazard Shipping Fees

Prod # Description Unit Price Order / Quote
114-8 Black Nail Polish each $4.40
Qty:




silver polyester tape

3M™ Silver Polyester Tape, Nonconductive, 850

Single sided silver polyester tape is used for making ultramicrotome boats, and for other applications. The tape is 1.0mil (0.025mm) thick. Silver appearance due to aluminum coating on the polyester film. Acrylic adhesive is used. Standard 76mm (3") plastic core.
9.5 W x 66m L (3/8" x 72 yd)

Technical Note, 114-1 (338KB PDF)

Prod # Description Unit Qty Price Order / Quote
For Sale in U.S.A. Only
114-1 3M™ Silver Polyester Tape, 9.5mm W x 66m L each 1-9 $43.50
Qty:
10+ 37.00




mounting cylinders pyramid tip on mounting cylinder

Mounting Cylinders

Plastic cylinders for attaching pyramid-tips (from molds 10585 and 10586). 8mm diameter x 13mm length. Smooth ends for easy attachment. Lucite.

Prod # Description Unit Price Order / Quote
10580 Mounting Cylinders pkg/100 $42.65
Qty:


Pyramid Tip Embedment placement on Cylinder Mount
go to Pyramid Tip Molds

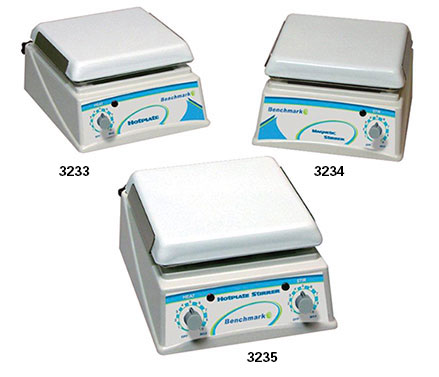

Benchmark Hotplate Magnetic Stirrer

Benchmark Hot Plate, Stirrer
or Combination Hotplate & Stirrer

Benchmark Hot Plates, Magnetic Stirrers and Hot Plate-Stirrers feature an exceptionally durable, chemical resistant white ceramic work surface. Their space-efficient design (20.3 x 22.9cm [8 x 9"] footprint), makes them ideal for use on crowded benchtops and inside of bio-hoods.

Advanced microprocessor controls with convenient turn knobs allow quick, precise adjustment and maintenance of speed and temperature. Safety indicator LED's on the front panel indicate when the heating and/or stirring functions have been activated. The bases are sturdy, powder coated, cast-aluminum construction.

With a square 19cm (7.5") work surface, all three models are compatible with a wide variety of popular sizes of borosilicate glass beakers, flasks, bottles and other vessels. The Hot Plate Magnetic Stirrer, Prod. No. 3235, comes complete with a support rod for mounting thermometers and temperature probes.

Specifications
Model P40-S Stirrer P40-H Hot Plate P40-HS Hot Plate/Stirrer
Product Number 3233 / 3233-230 3234 / 3234-230 3235 / 3235-230
Stirrer Speed 60-1500 RPM - 60-1500 RPM
Stirring Capacity 2 L 2 L 2 L
Temperature Range - 80-380°C / 176-716°F 80-380°C / 176-716°F
Electrical Data 115V, 5A, 50/60Hz
230V, 3A, 50/60Hz		 115V, 5A, 50/60Hz
230V, 3A, 50/60Hz		 115V, 5A, 50/60Hz
230V, 3A, 50/60Hz
Power Consumption 500W 500W 550W
Dimensions (W x D x H) 20.3 x 22.9 x 11.4cm
(8 x 9 x 4.5")		 20.3 x 22.9 x 11.4cm
(8 x 9 x 4.5")		 20.3 x 22.9 x 11.4cm
(8 x 9 x 4.5")
Platform 19 x 19cm
(7.5 x 7.5")		 19 x 19cm
(7.5 x 7.5")		 19 x 19cm
(7.5 x 7.5")
Weight 4.08kg (9 lbs) 4.54kg (10 lbs) 5kg (11 lbs)

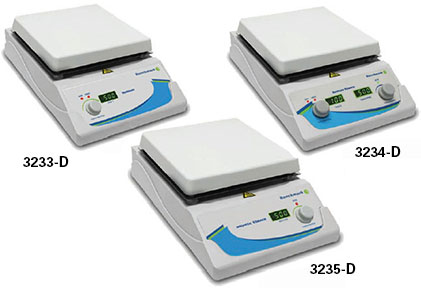

Benchmark Digital Hot Plate,
Stirrer or Combination Hotplate & Stirrer
Benchmark Hotplate Magnetic Stirrer Benchmark Digital Hot Plates, Magnetic Stirrers and Hot Plate-Stirrers provide robust quality features for the busy laboratory providing precise LED digital readouts of temperature and RPM.
  • Square 19cm (7.5") white ceramic top plate
  • Safety LED indicates hot surface
  • 5L stir capacity
  • Precise temperature control ±1°C



Stir Bars must be ordered separately,
see ordering information below.


Specifications
Model H3770-S Digital Stirrer H3770-H Digital Hot Plate H3770-HS Digital Hot Plate/Stirrer
Product Number 3233-D / 3233-230-D 3234-D / 3234-230-D 3235-D / 3235-230-D
Stirrer Speed 150-1500RPM - 150-1500RPM
Stirring Capacity 5L 5L 5L
Temperature Range - 5-380°C / 41-716°F 5-380°C / 41-716°F
Electrical Data 115V or 230VAC, 50/60 Hz 115V or 230VAC, 50/60 Hz 115V or 230VAC, 50/60 Hz
Power Consumption 500W 500W 550W
Dimensions (W x D x H) 19 x 27.9 x 10.1cm
(7.5 x 11.5 x 4.5")		 18 x 27.9 x 10.1cm
(7.5 x 11.5 x 4.5")		 18 x 27.9 x 10.1cm
(7.5 x 11.5 x 4.5")
Platform 18 x 18cm
(7 x 7")		 18 x 18cm
(7 x 7")		 18 x 18cm
(7 x 7")
Weight 4.08kg (9 lbs) 4.54kg (10 lbs) 5kg (11 lbs)




Ordering Information

Prod # Description Unit Price Order / Quote
Magnetic Stirrer only - no Hot Plate (order Stir Bar below)
3233 P40-S Magnetic Stirrer, 115V each $292.00
Qty:
3233-D H3770-S Magnetic Stirrer, Digital, 115V each 394.00
Qty:
3233-230 P40-S Magnetic Stirrer, 230V each 350.00
Qty:
3233-230-D H3770-S Magnetic Stirrer, Digital, 230V each 314.00
Qty:
Hot Plate only - no Magnetic Stirrer
3234 P40-H Hot Plate, 115V each 292.00
Qty:
3234-D H3770-H Hot Plate, Digital, 115V each 338.00
Qty:
3234-230 P40-H Hot Plate, 230V each 292.00
Qty:
3234-230-D H3770-H Hot Plate, Digital, 230V each 382.50
Qty:
Hot Plate and Magnetic Stirrer (order Stir Bar below)
3235 P40-HS Hot Plate and Magnetic Stirrer, 115V each 436.00
Qty:
3235-D H3770-HS Hot Plate and Magnetic Stirrer, Digital, 115V each 500.00
Qty:
3235-230 P40-HS Hot Plate and Magnetic Stirrer, 230V each 436.00
Qty:
3235-230-D H3770-HS Hot Plate and Magnetic Stirrer, Digital, 230V each 467.00
Qty:
Stir Bars for Hot Plate and Magnetic Stirrer or Magnetic Stirrer only
the Stir Bars are available in four sizes and are PTFE encased rare earth magnets
3260-1 Magnetic Stir Bar, 51 x 8mm (2 x 0.32") each 20.85
Qty:
3260-2 Magnetic Stir Bar, 38x8mm (1.5 x 0.32") each 20.85
Qty:
3260-3 Magnetic Stir Bar, 25 x 8mm (1 x 0.32") each 17.50
Qty:
3260-4 Magnetic Stir Bars, 8 x 1.5mm (0.32 x 0.06") pkg/2 10.75
Qty:




Eyelash with Handle
eyelash with handle
micro eyelash enlarged
enlarged view
A carefully selected No. 1 Superfine eyelash is attached to a finely balanced wooden handle for delicate manipulation of ultra-thin sections in the knife boat of an ultramicrotome or wherever delicate teasing or manipulation is required. These special eyelashes are chosen due to their excellent taper and strength and are of the highest quality available. Tip shown actual size.

Prod # Description Unit Price Order / Quote
113 No. 1 Superfine Eyelash each $14.30
Qty:




Ultrafine Single Deer Hair

micro eyelash
micro eyelash enlarged
Enlarged View

Selected, single deer hair brush for manipulating thin sections on water or separating small particles using a microscope. The ultrafine deer hair is attached to a 6-1/4" (159mm) long wooden handle.

Prod # Description Unit Price Order / Quote
119 Ultrafine, single Deer Hair with handle each $18.70
Qty:




Cavex Wax Sheets for modeling, impressions, dental wax, lost wax casting Coltene Set Up Regular with a melting point of 58° C (136° F). Coltene has excellent sealing properties and is a well known and worldwide recognized brand for dental applications. Pink in color. 147 x 75 x 1.5mm thick (5-3/4 x 3 x 0.06" thick), 450g (1 lb).

Prod # Description Unit Qty Price Order / Quote
Regular
109 Coltene Regular Wax Sheets, 450g each 1-9 $33.60
Qty:
10+ 31.60




extra tough wax sheets Extra Tough which is slightly firmer than Coltene. Also pink in color, box of 454g (1 lb).

Prod # Description Unit Price Order / Quote
Extra Tough
109-2 Wax Sheets, Extra Tough, 1 lb box, 454g each $27.00
Qty:




tackiwax

Tackiwax

Used to keep thin sections cut with an ultramicrotome in a neat row. Apply a thin layer of Tackiwax to the sides of the block face at top and bottom of trapezoid. 10g.

Prod # Description Unit Price Order / Quote
115-10 Tackiwax, 10g each $5.00
Qty:




paper points

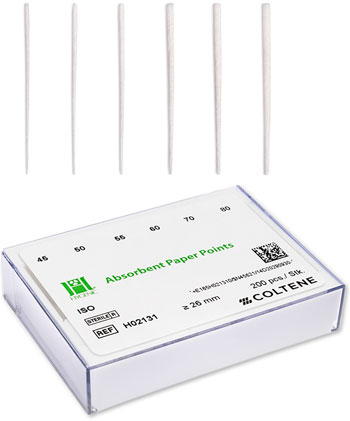

Paper Points

tiny, tightly machine rolled, neat

Wicking Paper Points let you aim accurately at a drop or wet area on a specimen block face. No random fibers to obstruct or damage the specimen. The Paper Point can be grasped in a tweezer.

courtesy of Dr. Stanley Weinreb

Sizes available (small to large): 15-40
Set 115-18 contains a total of 200 Paper Points divided among sizes 15, 20, 25, 30, 35, and 40.

Prod # Description Unit Price Order / Quote
115-18 Paper Points, Sizes 15-40 pkg/200 $19.00
Qty:

Sizes available (small to large): 45-80
Set 115-19 contains a total of 200 Paper Points divided among sizes 45, 50, 55, 60, 70, 80.

Prod # Description Unit Price Order / Quote
115-19 Paper Points, Sizes 45-80 pkg/200 $19.00
Qty:

Single Sizes

Prod # Description Unit Price Order / Quote
115-24 Paper Points, Size 40 pkg/200 $19.00
Qty:
115-25 Paper Points, Size 25 pkg/200 19.00
Qty:
115-15 Paper Points, Size 15 pkg/200 19.00
Qty:
